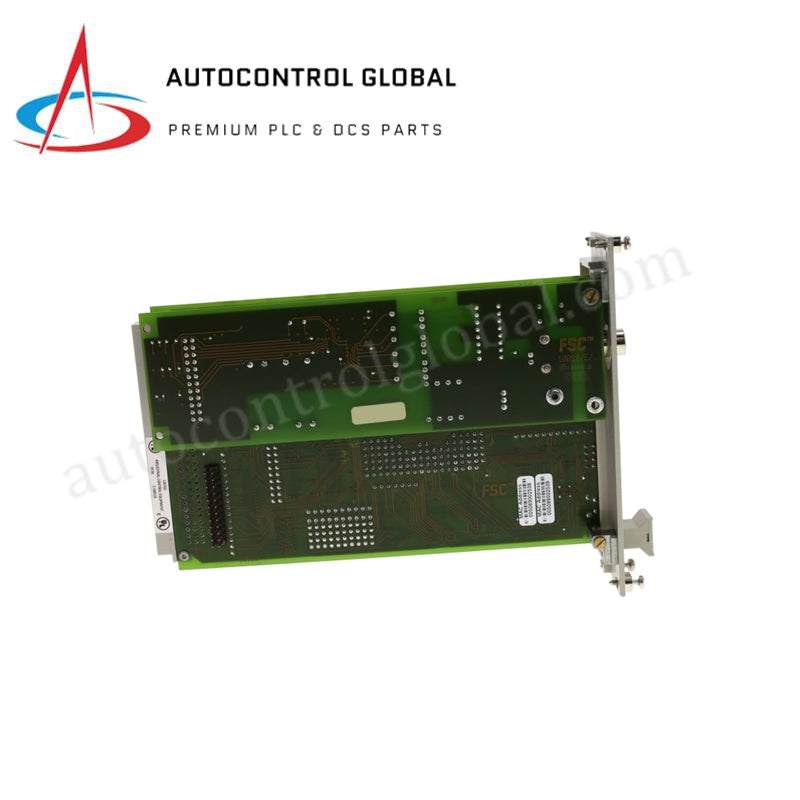

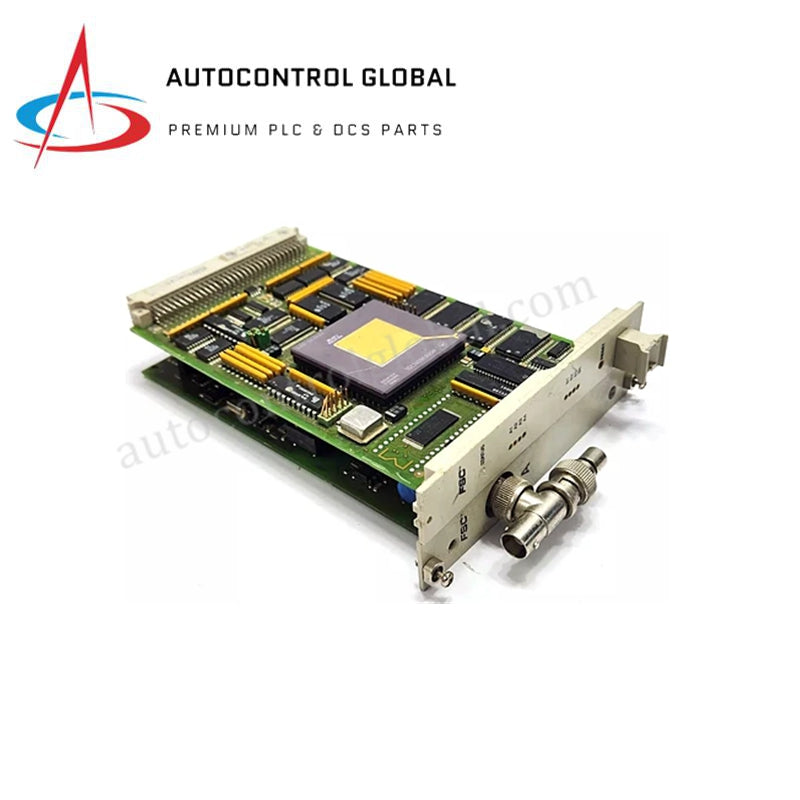

Honeywell 10018/E/E PlantScape FSC Dual Ethernet Communication Module

Product Description

The 10018/E/E (10018/E/E) is a high-performance Ethernet Communication Module specifically engineered for the Honeywell Fail-Safe Controller (FSC) and PlantScape / Experion PKS distributed control systems. This module serves as the primary data bridge, providing an isolated Ethernet interface that connects the FSC safety system directly to the PlantScape server environment.

The dual-interface design of the 10018/E/E (10018/E/E) distinguishes it from the single-port 10018/E/1 variant, offering redundant networking capabilities or simultaneous connections to multiple subnets. This redundancy is critical for industrial automation environments where continuous data visibility is required for safety monitoring. The module utilizes the TCP/IP protocol to facilitate high-speed, secure data exchange between controllers, I/O modules, and operator workstations, ensuring deterministic communication even in high-traffic network conditions.

Detailed Technical Specifications

The 10018/E/E (10018/E/E) is built to withstand rigorous industrial interference while maintaining signal integrity.

• Manufacturer: Honeywell

• Model Number: 10018/E/E

• Part Number: 10018/E/E

• Product Type: Dual Ethernet Communication Module

• System Compatibility: Honeywell FSC, PlantScape, Experion PKS

• Network Interface: Dual Isolated Ethernet Ports (RJ45)

• Communication Protocol: Ethernet TCP/IP

• Isolation: Optically isolated serial-to-Ethernet interface

• Data Throughput: Optimized for real-time controller-to-server synchronization

• Operating Voltage: 24 VDC (Internal backplane power)

• Dimensions: 12.7 cm x 20.3 cm x 5.1 cm (5.0 in x 8.0 in x 2.0 in)

• Net Weight: 0.3 kg (10.1 oz)

• Operating Temperature: -10 °C to +80 °C

• Housing: High-density anti-static polymer

• Country of Origin: USA
