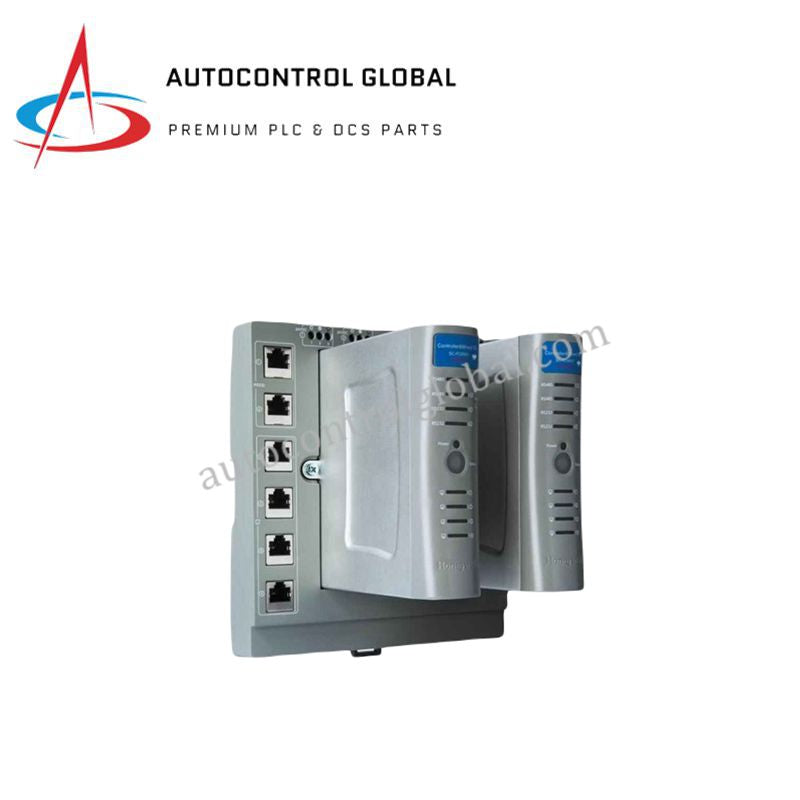

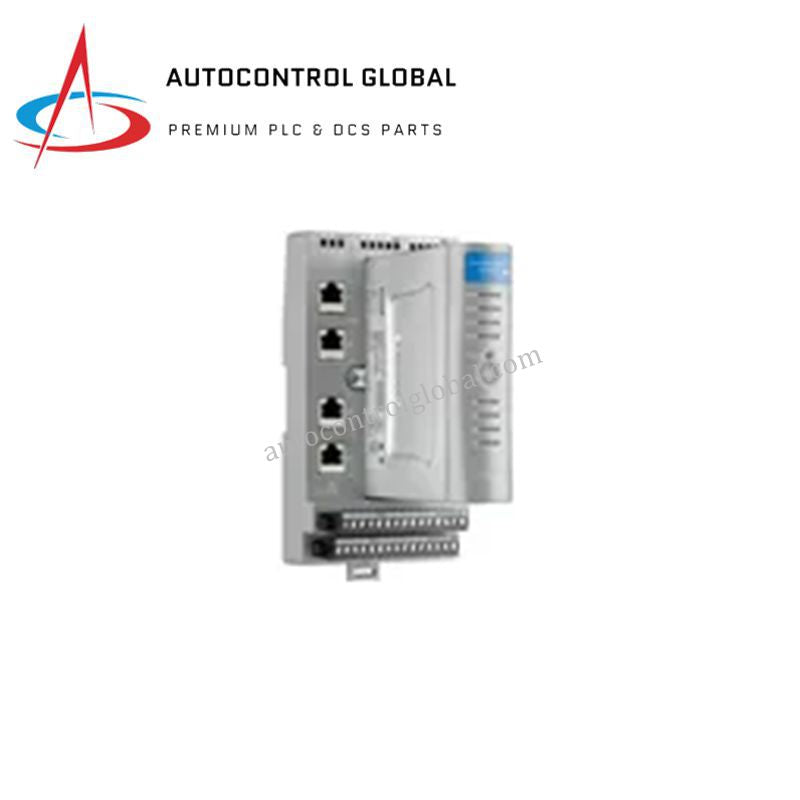

Honeywell SC-UCMX01 | Universal Control Module for SIL3 Applications
Manufacturer: Honeywell
-
Part Number: SC-UCMX01 51307198-175
Condition：New with Original Package
Product Type: Universal Control Module for SIL3 Applications
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The HONEYWELL SC-UCMX01 is a high-performance Universal Control Module (UCM) designed for critical safety applications within Honeywell Safety Manager platforms. It executes safety logic, manages I/O communications, and maintains system integrity in emergency shutdown, burner management, and fire & gas systems. The module supports redundant configurations and provides real-time diagnostics, ensuring high availability and reliable operation in safety-critical industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | SC-UCMX01 |
| Part Number | 51307198-175 |
| Type | Universal Control Module (UCM) |
| System Compatibility | Honeywell Safety Manager (SM) platform |
| Processor | High-speed CPU for safety logic and control execution |
| Memory | Onboard memory for logic execution and diagnostics |
| Communication Interfaces | Redundant SMN ports, peer-to-peer communication, Experion PKS integration |
| I/O Support | Interfaces with Safety Manager digital and analog I/O modules |
| Redundancy | Supports redundant configurations for high availability |
| Diagnostics | Built-in diagnostics for fault detection, health monitoring, and event logging |
| Power Supply | 24 VAC/VDC |
| Inputs | Up to 32 supervised or unsupervised inputs |
| Outputs | Up to 16 relay outputs |
| Programming | Configurable through Honeywell programming software |
| Dimensions | 5.25" × 3.5" × 1.5" (133.4 mm × 88.9 mm × 38.1 mm) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Humidity | 10% to 90% non-condensing |
| EMI/RFI Resistance | Industrial-grade shielding for signal integrity |
| Mounting | Rack-mounted within Safety Manager chassis |
| Certifications | TÜV SIL3, UL, cUL, CE, IEC 61508 compliant |
FAQ
Q1: What type of applications is the SC-UCMX01 suitable for?
A1: It is designed for safety-critical systems like ESD, burner management, and fire & gas.
Q2: How many inputs and outputs does this module support?
A2: It supports up to 32 inputs and 16 relay outputs for flexible system control.
Q3: Can it be used in redundant configurations?
A3: Yes, SC-UCMX01 supports redundant setups for high availability and reliability.
Q4: What are the environmental limits for operation?
A4: The module operates between 0°C and 50°C, with 10–90% non-condensing humidity.
Q5: Is the SC-UCMX01 certified for industrial safety?
A5: Yes, it is TÜV-certified for SIL3, CE marked, and compliant with UL and IEC 61508 standards.
