Honeywell TC-IAH161 High Level Analog Module In Stock

Product Overview

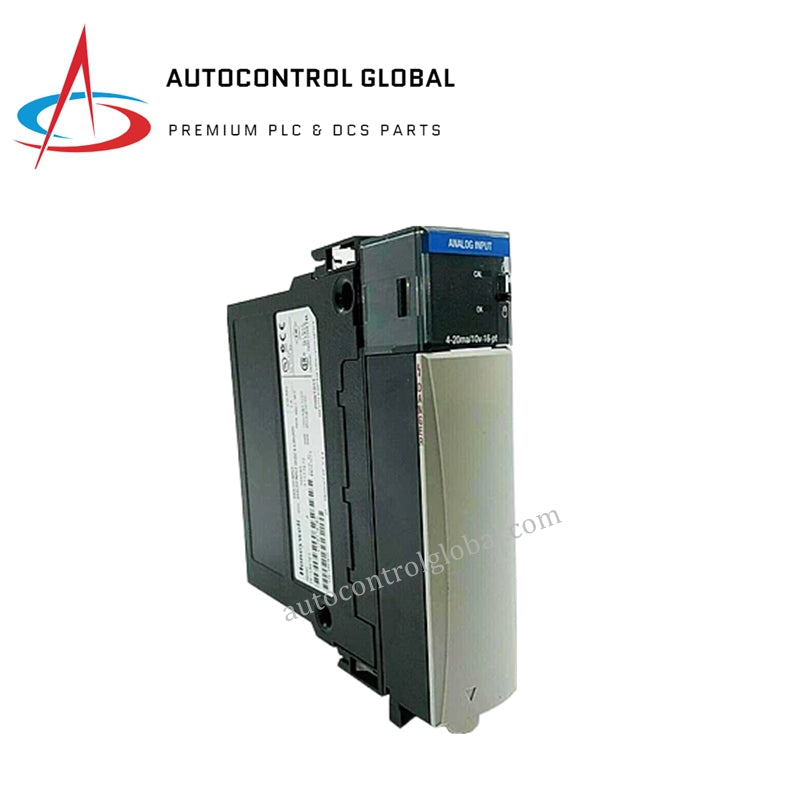

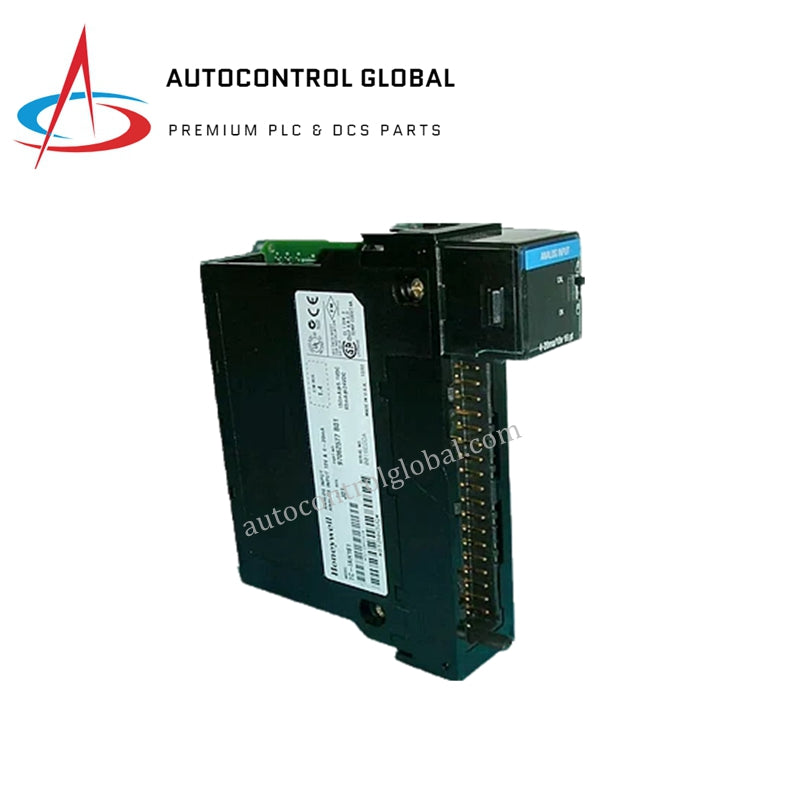

The Honeywell TC-IAH161 High Level Analog Module provides 16 channels of isolated analog input capability, designed for industrial process control applications. This module offers a wide input voltage range, high resolution, and robust protection features, making it suitable for environments where precise data acquisition and reliability are paramount.

Specifications

• Number of Channels: 16
• Input Type:
  • Voltage: ±10.25 V, 0 to 10.25 V, 0 to 5.125 V
  • Current: 0 to 20.5 mA (with internal 250 ohm resistor)
• Resolution: 16 bits across each range
• Module Publish Rate: 250 msec
• Input Impedance:
  • Voltage: >1.0 megohm
  • Current: 249 ohms nominal
• Channel Bandwidth: 20 Hz (-3dB)
• RFI Immunity: Error < 2.0% of range at 10 V/m, 27 to 1000 MHz
• Power Dissipation: Max 4.1 W
• Isolation Voltage: 100% tested at 2550 VDC for 1s
• Connection: TC-TBCH, 36-position terminal block
• Dimensions: 5.8" x 5.5" (14.6 cm x 14.0 cm)
• Weight: 8.0 oz (0.2 kg)

Key Features

• High Channel Density: Provides 16 isolated analog input channels in a compact design.
• Wide Input Range: Supports multiple voltage and current input ranges for versatile application needs.
• High Resolution: Offers 16-bit resolution for precise measurement across all input ranges.
• Robust Protection: Features isolation up to 2550 VDC and RFI immunity to ensure reliable operation in harsh environments.
• Fast Response: A publish rate of 250 msec ensures timely data updates for real-time process control.
• Low Power Consumption: Efficient power dissipation of up to 4.1 W maximizes energy efficiency.
• Easy Integration: Compatible with Honeywell systems via a 36-position terminal block for straightforward installation.
• Compact Design: Small footprint and lightweight construction facilitate easy mounting and integration into existing setups.
