Product Overview

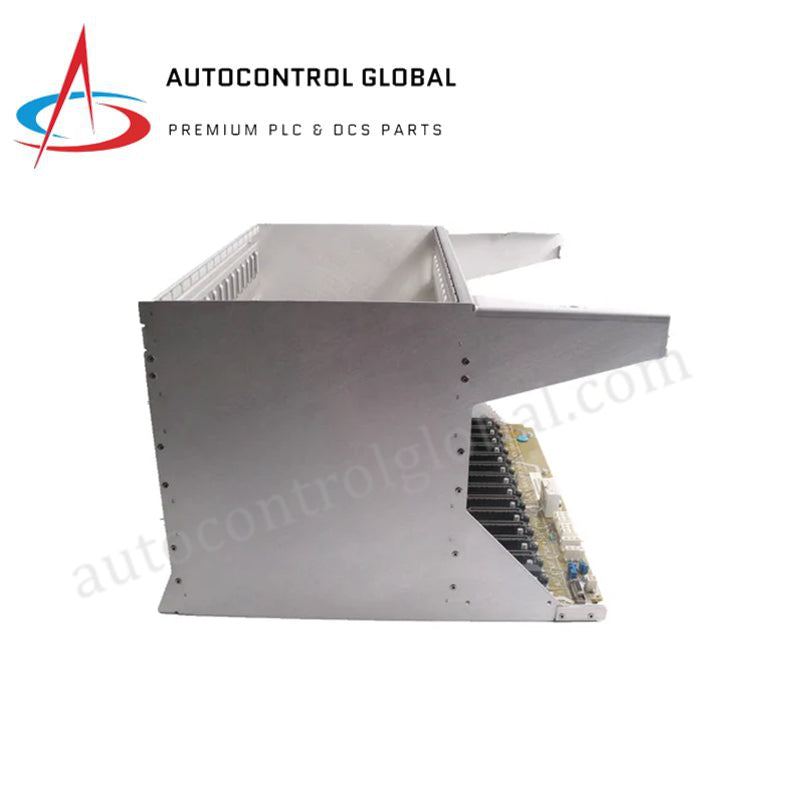

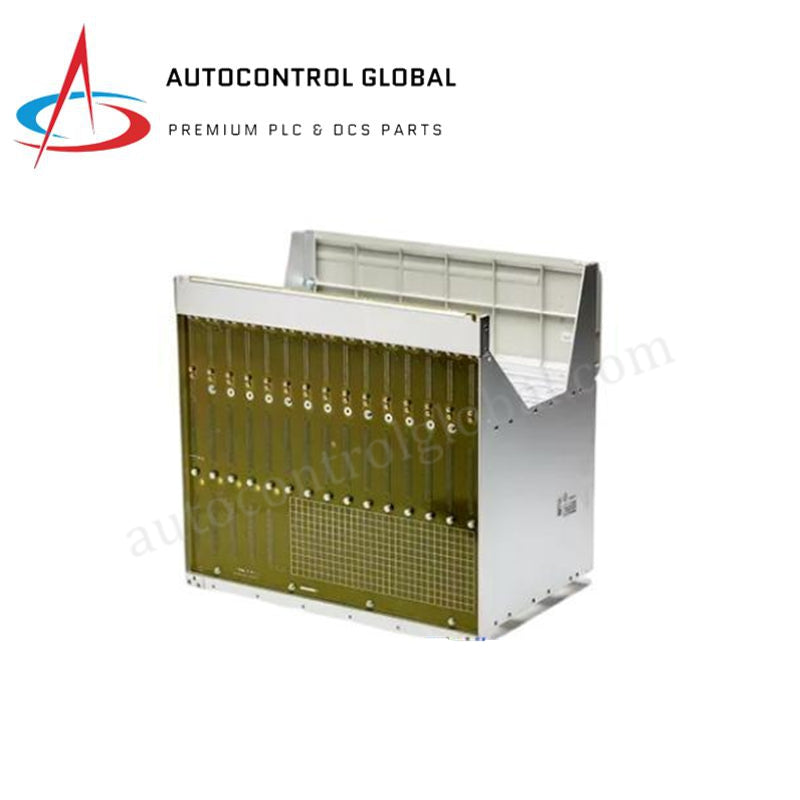

The 51404127-150 (Model: 51404127-150) is a high-density 15-slot High Performance Process Manager (HPM) module file chassis, serving as a core structural and connectivity component within the Honeywell TotalPlant Solution (TPS) and Experion PKS architectures. This "C/C File" (Controller/Communication File) is engineered to house the primary HPM controllers and their associated communication interface modules.

Designed for high-availability industrial automation, the 51404127-150 (Part Number: 51404127-150) provides a deterministic backplane environment. It facilitates seamless data exchange between the processing logic and the Universal Control Network (UCN). Its robust design is tailored for mission-critical sectors such as petrochemical refining, power generation, and large-scale manufacturing where system downtime is not an option.

Detailed Technical Specifications

The 51404127-150 provides the necessary physical footprint and electrical bus for advanced process control.

• Manufacturer: Honeywell

• Model Number: 51404127-150

• Product Type: 15-Slot HPM Controller/Communication (C/C) File Chassis

• System Compatibility: Honeywell TDC-3000, TPS, Experion PKS (HPM/EHPM systems)

• Slot Configuration: 15 Universal Slots for HPM-style modules

• Backplane Type: Passive high-speed deterministic system bus

• Mounting Type: Standard 19-inch industrial rack or cabinet mounting

• Power Input: Provided through integrated backplane connections via HPM power system

• Environmental Protection: Industrial-grade coating for standard control room environments

• Communication Interface: Supports UCN (Universal Control Network) interface modules

• Diagnostics: Integrated support for module status and backplane health monitoring

• Operating Temperature: 0°C to +60°C (32°F to 140°F)

• Storage Temperature: -40°C to +85°C

• Dimensions: Designed to standard Honeywell 15-slot HPM file specifications

• Compliance: Industrial EMC and functional safety standards
