IC200ALG230D GE Fanuc VersaMax Analog Input Module 4-CH 12-Bit
IC200ALG230D GE Fanuc VersaMax Analog Input Module 4-CH 12-Bit
IC200ALG230D GE Fanuc VersaMax Analog Input Module 4-CH 12-Bit
/ 3

IC200ALG230D GE Fanuc VersaMax Analog Input Module 4-CH 12-Bit

  • Manufacturer: GE Fanuc

  • Part Number: IC200MDL740L

  • Condition:New with Original Package

  • Product Type: Analog Input Modules

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

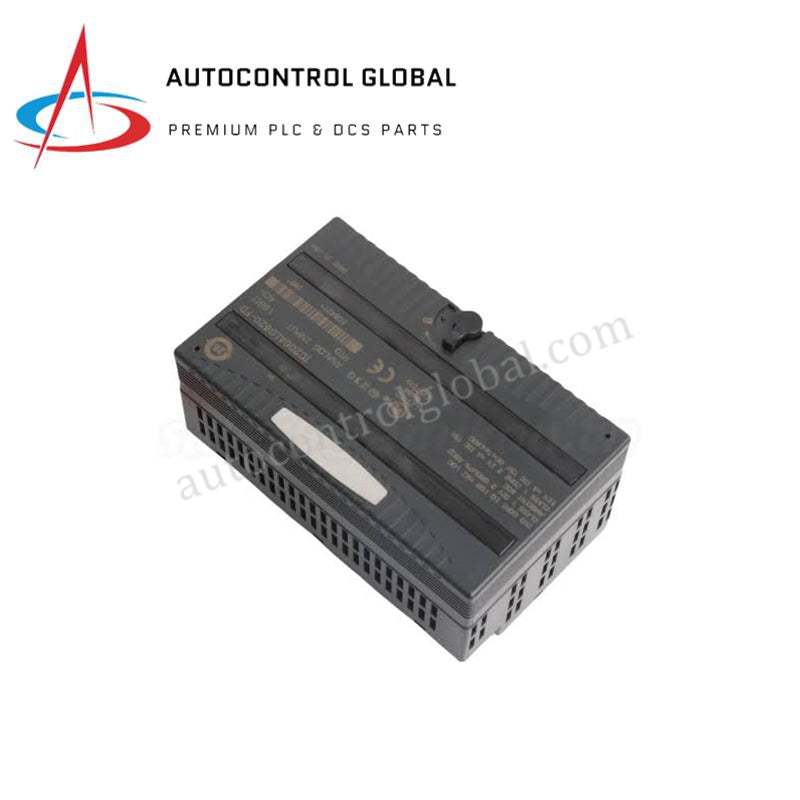

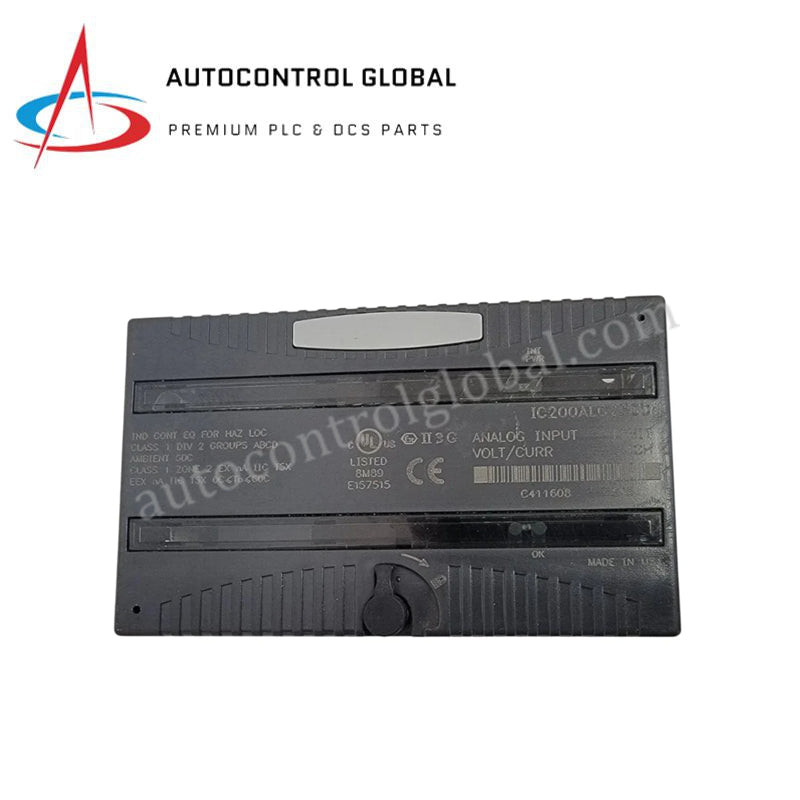

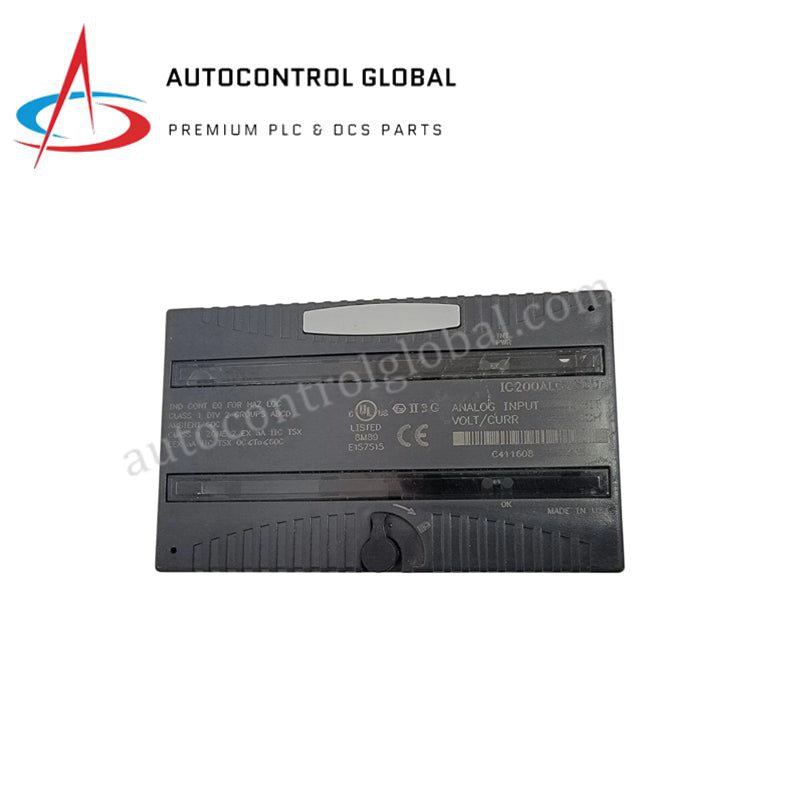

GE IC200ALG230D VersaMax Analog Input Module

Configured for analog signal measurement and digital data conversion in GE VersaMax PLC platforms, the GE IC200ALG230D (IC200ALG230 Analog Input Module) provides direct physical/electrical execution. Technicians snap this module onto VersaMax I/O carriers to acquire field voltage and current signals. The hardware converts single-ended field inputs into 12-bit digital values across the backplane without requiring external signal conditioning blocks.

Hardware Specifications

Parameter Specification
Model IC200ALG230D (IC200ALG230)
Brand GE Fanuc / Emerson
Origin USA
Weight 0.14 kg to 0.54 kg (varies by carrier assembly)
Dimensions 66.8 x 128 mm (2.63 x 5.04 in)
Operating Temp 0 deg C to +60 deg C
Storage Temp -40 deg C to +85 deg C
Power Consumption 125 mA at 5 VDC (from backplane)
System Compatibility VersaMax PLC platform / I/O carriers
Number of Channels 4 / 8 channels (single-ended)
Input Voltage Range Bipolar / Unipolar (0-10 VDC)
Resolution 12 bits
Update Rate 0.4 ms to 1.0 ms per channel
Isolation 1500 V between field side and logic side
Diagnostics INT PWR and OK LED indicators
Mounting VersaMax DIN-rail snap-in

Backplane Bus Communication Velocity & Deterministic Network Scaling

The module uses backplane bus communication velocity protocol management to drive deterministic I/O density scaling across VersaMax sub-racks. Internal logic circuits execute rapid data conversion scans with a 0.4 ms update rate, minimizing signal phase latency in real-time control loops. Optical isolation barriers isolate the internal 5 VDC backplane power rail from field-side electrical surges up to 1500 V. In addition, firmware flash compatibility validation prevents invalid parameter assignments during CPU configuration cycles.

Frequently Asked Questions

Q: What power draw does the IC200ALG230D exert on the VersaMax backplane logic rail?

A: The module draws up to 125 mA at 5 VDC from the backplane power supply.

Q: How do status LEDs indicate power and operational state changes on the module front panel?

A: The INT PWR LED confirms the presence of internal 5 VDC logic power, while the OK LED lights up continuously when the module passes backplane hardware diagnostics.

Q: What signal isolation exists between field input terminals and the CPU backplane?

A: Integrated optical couplers provide 1500 V galvanic isolation between the field-side input circuits and the backplane logic bus.

Field Installation Guidelines

Technicians must snap the module base firmly onto the DIN-rail before seating it into the VersaMax I/O carrier interface. Tighten all terminal block screws to secure sensor wiring, using single-ended wiring practices for voltage signals. Route analog input cables in dedicated wire ducts separate from high-voltage AC lines to minimize noise pick-up. Terminate overall cable shielding directly to the cabinet ground bar using low-impedance clamps prior to applying power to the PLC system.
