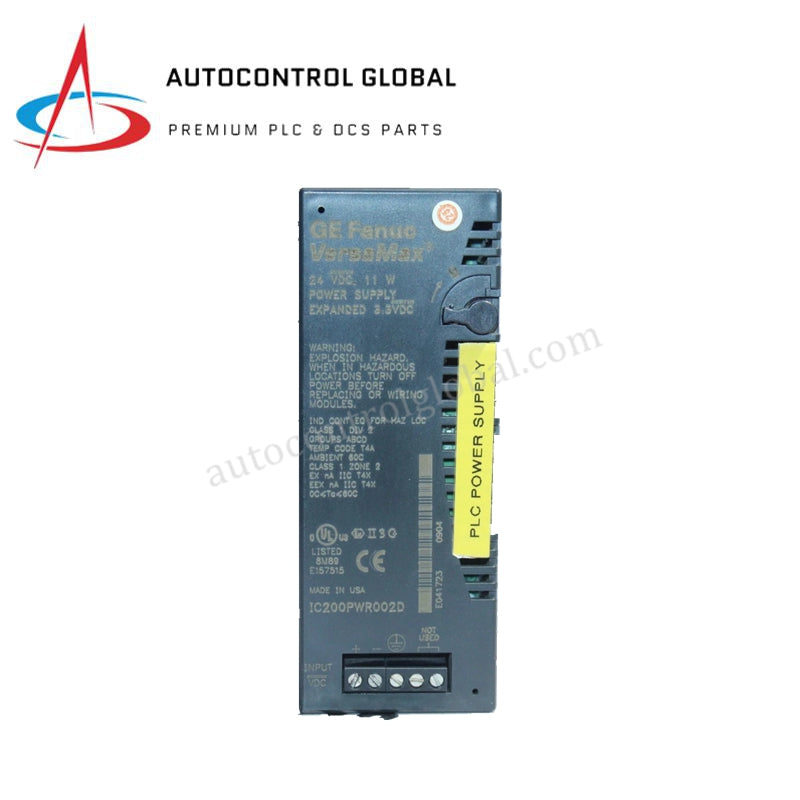

IC200PWR002D GE VersaMax 24 VDC Power Supply Module
Manufacturer: GE Fanuc
-
Part Number: IC200PWR002D
Condition：New with Original Package
Product Type: Power Supply Modules
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
GE IC200PWR002D VersaMax Supplemental Power Supply Module
Configured for supplemental backplane bus powering in VersaMax I/O platforms, the GE Fanuc IC200PWR002D (IC200PWR002 Supplemental Power Supply) provides direct physical/electrical execution. Engineers mount this hardware module directly onto main CPU/NIU bases or expansion booster carriers, where it steps down nominal 24 VDC external power into regulated 5 VDC and 3.3 VDC bus tracks. Injecting supplemental current directly into the carrier plane offsets voltage attenuation across dense module lineups and stabilizes internal logic processing.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200PWR002D |
| Brand | GE Fanuc / Emerson |
| Origin | China |
| Weight | 0.10 kg |
| Dimensions | 4.9 x 13.34 x 3.9 cm |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | 11 W input power |
| Input Voltage Range | 18 to 30 VDC (24 VDC nominal) |
| Output Voltages | 3.3 VDC and 5 VDC |
| Maximum Output Current | 1.5 A total (3.3 VDC up to 1.0 A) |
| Hold-up Time | 10 ms |
| Inrush Current | 20 A at 24 VDC; 25 A at 30 VDC |
| Isolation | 250 VAC continuous (1500 VAC for 1 min) |
Backplane Bus Communication Velocity and Firmware Compatibility
The internal power conditioning logic supplies steady potential to adjacent logic components without compromising backplane bus communication velocity across deterministic networks. Integrated output filters prevent voltage ripple from interfering with high-speed serial data exchanges on the rack bus. Before distributing full rail power, the power subsystem verifies backplane voltage levels during boot sequences to maintain firmware flash compatibility across all hosted expansion cards.
Frequently Asked Questions
Q: How does the module split output current between the 3.3 VDC and 5 VDC power rails?
A: The combined load across both rails cannot exceed 1.5 A. The 3.3 VDC rail permits a maximum draw of 1.0 A, leaving the remaining balance (1.5 A minus actual 3.3 VDC load) available for the 5 VDC supply segment.
Q: What grounding configuration is mandatory to avoid logic instability?
A: Technicians must wire the DC negative (DC-) terminal directly to frame ground. Operating the module on a floating DC power source compromises internal reference levels, exposing the backplane logic bus to electrical noise.
Q: What protective measures safeguard the internal circuitry against field power anomalies?
A: Onboard protective circuits handle short circuits, thermal overloads, and reverse polarity connections. In addition, the internal power stage provides galvanic isolation rated at 250 VAC continuous between field input terminals and the backplane logic ground.
Field Installation Guidelines
Mount the power supply module vertically onto the designated VersaMax carrier or CPU base within a grounded enclosure. Align the rear connector pins with the carrier backplane interface and press the module into place until the side retention clips lock firmly. Connect external 24 VDC power conductors to the screw terminal block using a torque-limiting manual driver.
Route DC input supply lines through dedicated wire channels away from high-voltage AC lines and motor drive leads. Maintain a minimum physical spacing of 200 mm from power conductors to minimize electromagnetic coupling. Connect the cabinet earth bus directly to the carrier grounding terminal using heavy-gauge copper conductor before applying primary power to the rack.
