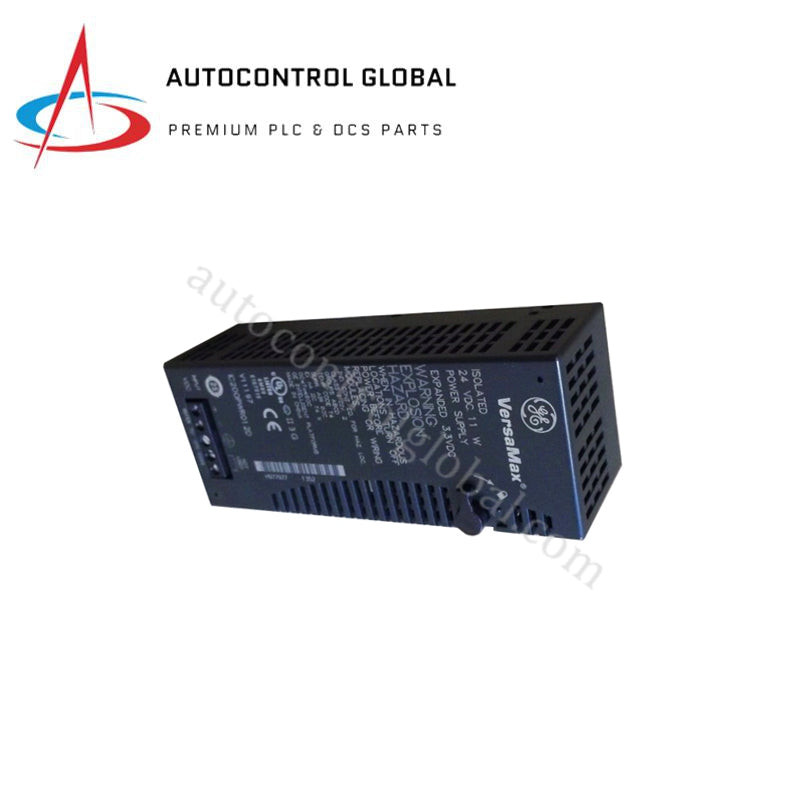

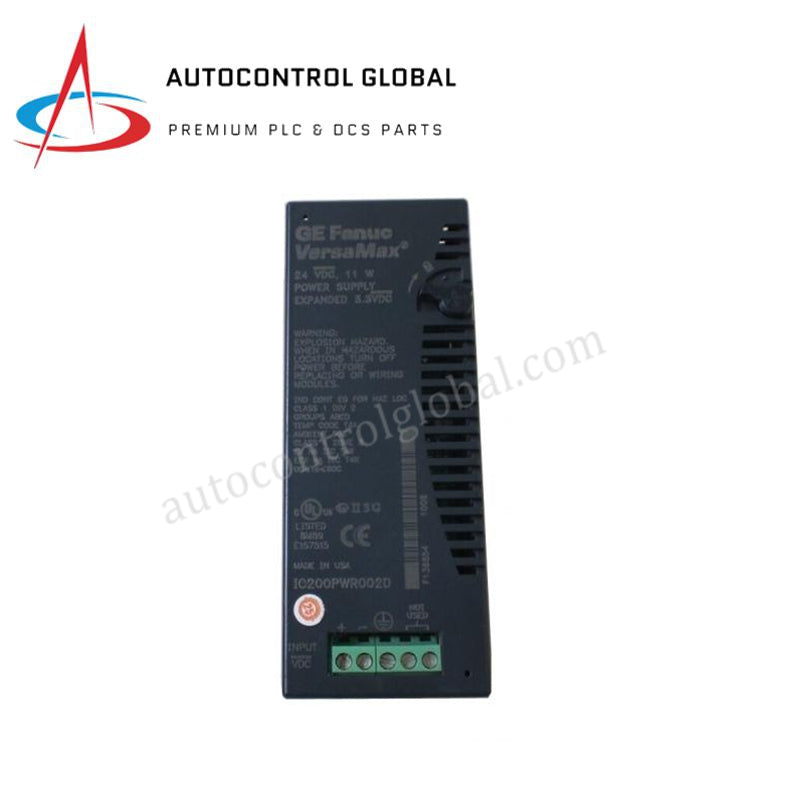

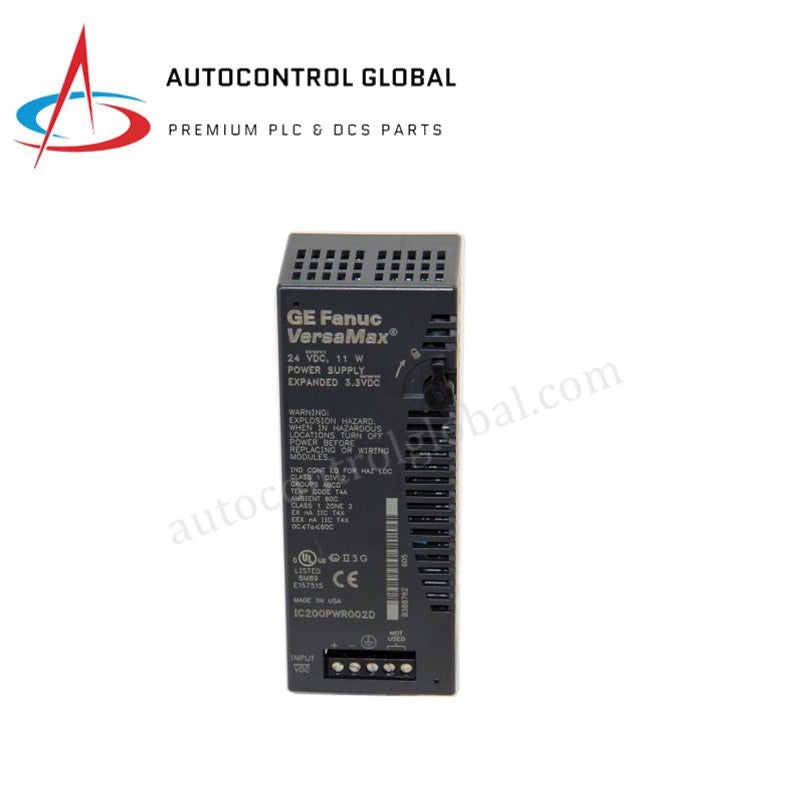

IC200PWR012 GE Fanuc VersaMax Power Supply Module
Manufacturer: GE Fanuc
-
Part Number: IC200PWR012
Condition：New with Original Package
Product Type: Power Supplies
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
GE Fanuc IC200PWR012 VersaMax Isolated Power Supply Module
Configured for primary power conditioning and regulated voltage distribution in GE Fanuc VersaMax PLC platforms, the GE Fanuc IC200PWR012 (IC200PWR012 Power Supply Module) provides direct physical/electrical execution. The module converts an incoming DC/AC supply to deliver isolated logic power across the VersaMax backplane bus, maintaining internal 5 VDC and expanded 3.3 VDC buses up to a 1.5 A total threshold while providing 1500 V RMS electrical isolation between primary input circuits and internal control logic.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200PWR012 |
| Brand | GE Fanuc |
| Origin | USA / Assembled globally |
| Weight | 0.27 kg (0.60 lbs) |
| Dimensions | 120 mm x 90 mm x 50 mm |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | 11 W max input power |
| Input Voltage Range | 18-30 VDC (Nominal 24 VDC) / 85-264 VAC options |
| Output Voltage | 5 VDC with expanded 3.3 VDC rail |
| Max Output Current | 1.5 A total output current |
| Isolation Voltage | 1500 V RMS input-to-output isolation |
| Protection Features | Overvoltage, overcurrent, and short-circuit protection |
Firmware Flash Compatibility & Backplane Bus Communication Velocity
The IC200PWR012 module attaches directly to the head of the VersaMax carrier rack, maintaining constant backplane power rails without introducing voltage ripple or communication latencies to adjacent I/O modules. Firmware flash compatibility across CPU processors and network interface units relies on stable backplane bus voltages under step-load changes. High-density I/O configurations drawing power from the 5 VDC and 3.3 VDC buses trigger internal thermal shutdown mechanisms if current draw limits exceed 1.5 A, protecting backplane logic traces during field-side short circuit events.
Frequently Asked Questions
Q: How many I/O modules can a single IC200PWR012 power supply support on a standard VersaMax carrier?
A: A single module provides backplane current to support up to 8 VersaMax I/O modules, provided total current consumption does not exceed the 1.5 A combined limit on the 5 VDC and 3.3 VDC rails.
Q: Does the IC200PWR012 allow hot-swapping during live rack operations?
A: No, field engineers must remove primary input power to the module terminal block before replacing or reseating the unit on the carrier base to avoid electrical arcing across the backplane connectors.
Q: What protective measures exist within the module against incoming field voltage spikes?
A: The module incorporates built-in surge suppression circuits alongside internal 1500 V RMS galvanic isolation to prevent transient input overvoltages from damaging downstream backplane electronics.
Field Installation Guidelines
Mount the power supply onto a standard 35 mm DIN rail or directly to the enclosure panel using the integrated mounting feet. Secure the unit onto the leftmost slot of the VersaMax carrier structure until the mechanical retention latches engage firmly. Strip field input power wires to 7 mm and secure them into the removable screw terminal block, ensuring proper polarity. Connect the earth ground terminal directly to the central cabinet grounding bus bar using a low-impedance copper conductor. Maintain a minimum vertical clearance of 50 mm above and below the module housing to allow natural convective airflow for thermal heat dissipation.
