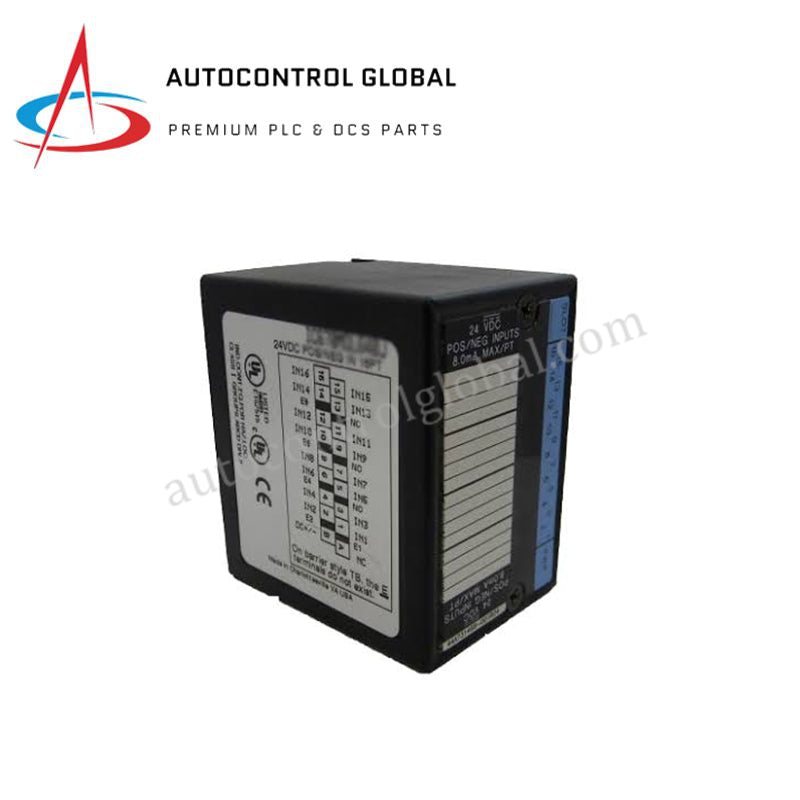

IC670MDL740 GE Fanuc Field Control Discrete I/O Card
Manufacturer: GE Fanuc
-
Part Number: IC670MDL740
Condition：New with Original Package
Product Type: Digital Input Modules
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
GE Fanuc IC670MDL740 Field Control Discrete I/O Module
Configured for discrete signal execution in Field Control platforms, the GE Fanuc IC670MDL740, also cataloged as the IC670MDL740 Discrete I/O Module, provides direct physical signal processing across positive logic 24 VDC field channels. It converts incoming field signals into logic states for transmission over the Bus Interface Unit backplane bus.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC670MDL740 |
| Brand | GE Fanuc |
| Origin | USA |
| Weight | 0.34 kg (0.75 lbs) |
| Dimensions | Standard Field Control Module Format |
| Operating Temp | 0 deg C to +60 deg C (Storage: -40 deg C to +85 deg C) |
| Power Consumption | 111 mA to 200 mA maximum draw from BIU power supply |
| Rated Input/Output Voltage | 24 VDC Positive Logic (Operating range: 9.2-29.5 VDC / 0-30 VDC) |
| Channel Capacity | Discrete channel processing (Positive Logic) |
| Current Rating / Load | 0.5 A max per point (4.0 A total module load capacity) |
| On-State Current | 2.0 mA to 7.0 mA (Off-state current: 0 to 1.5 mA) |
| Input Impedance | ~3.7 k-ohm typical |
| Response Time | 1 ms to 200 ms (dependent on configuration and load type) |
| Galvanic Isolation | 250 VAC continuous (1500 VAC for 1 min user-to-logic/frame ground) |
Backplane Bus Communication Velocity & I/O Density Scaling
The IC670MDL740 optimizes I/O density scaling by executing high-density signal processing within a single module slot, reducing total enclosure space requirements across multi-rack networks. Internal opto-isolation barriers prevent field-side voltage transients from compromising logic circuits, while steady signal handling maintains backplane bus communication velocity during rapid state transitions. Firmware flash compatibility across parent CPU units guarantees uncorrupted scan execution over the local bus interface.
Frequently Asked Questions
Q: What power source drives the logic side of the IC670MDL740 module?
A: The module draws its operational logic power directly from the 5 VDC bus provided by the local Bus Interface Unit, consuming up to 200 mA maximum.
Q: What isolation ratings are specified between the field circuits and the backplane logic?
A: The module provides optical isolation rated at 250 VAC continuous and 1500 VAC for 1 minute between user field terminals, internal logic, and frame ground.
Q: What wiring logic convention must be observed during installation?
A: The module utilizes positive logic sourcing/sinking conventions where active ON states require positive DC potential relative to field common.
Field Installation Guidelines
- De-energize primary subrack backplane power and field voltage sources before mounting the module to its terminal base.
- Wear an ESD protective wrist strap attached to panel frame earth when handling or seating the module assembly.
- Maintain separate routing paths for field power conductors and low-voltage logic signal lines to limit inductive noise coupling.
- Tighten terminal block screw connections firmly to prevent high-resistance contacts under continuous thermal cycles.
- Verify that panel ventilation keeps the local operating enclosure ambient strictly within the 0 deg C to +60 deg C range.
