IC693MDL653 | GE Series 90-30 | 32-Point Sinking Input Card

Product Description

High-Density Discrete Signal Processing

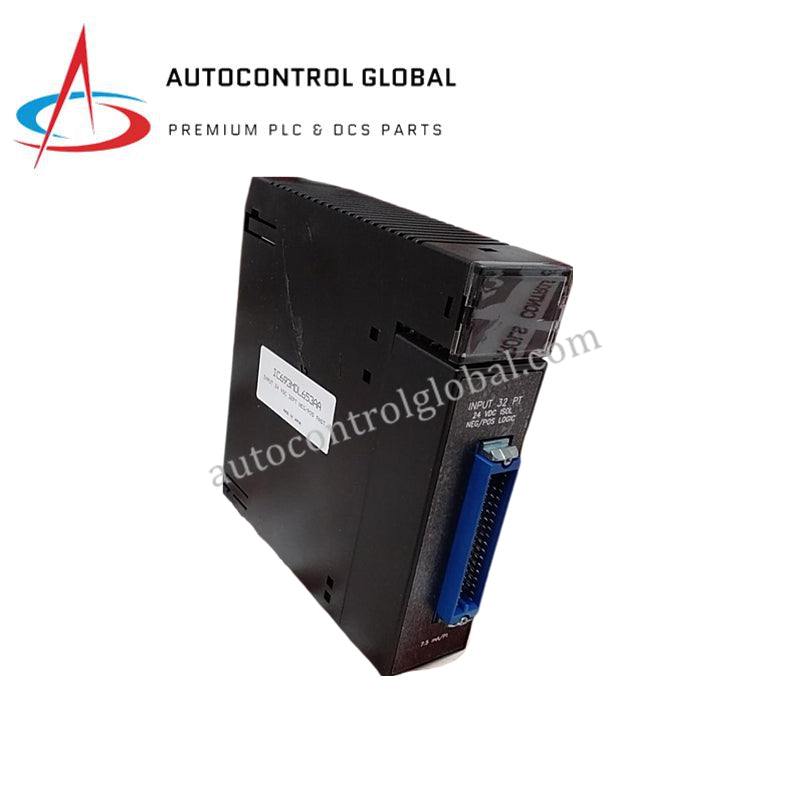

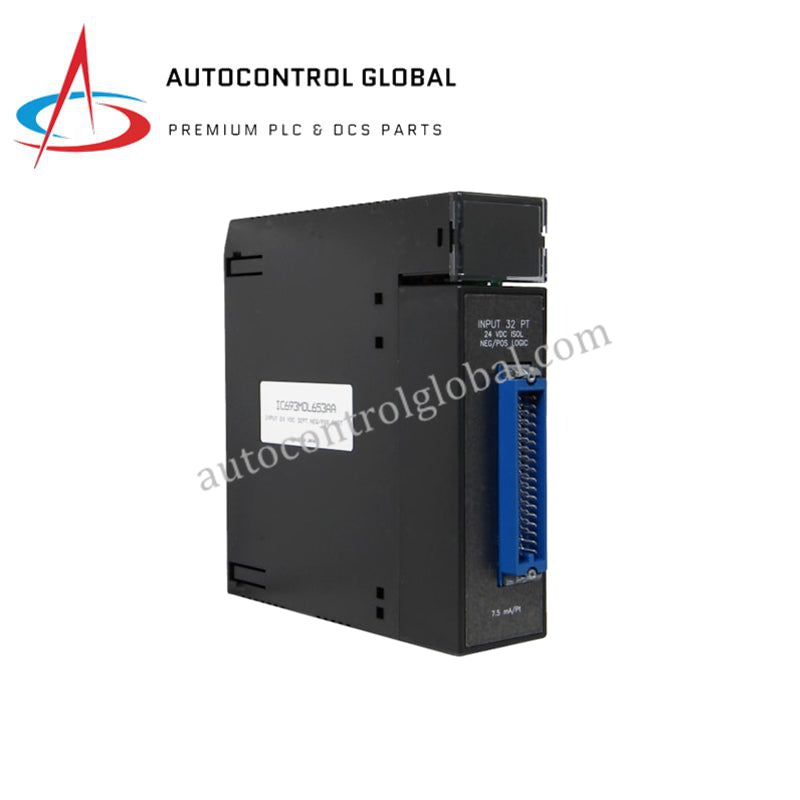

The GE Fanuc IC693MDL653 is a high-density discrete input module engineered for the Series 90-30 PLC platform. This module provides 32 individual 24VDC input channels, organized into four isolated groups of eight points. Designed to bridge the gap between field-level binary devices and the PLC CPU, the IC693MDL653 accurately detects logic states from proximity sensors, limit switches, and pushbuttons. Its compact design allows for high-density I/O configurations, maximizing the utility of each rack slot in complex automation environments.

Technical Correction and Signal Integrity

Note: While often miscategorized as an output module, the IC693MDL653 is a dedicated Discrete Input Module. It features a "Positive Logic" (Sinking) input characteristic, designed to receive signals from sourcing field devices. Each of the four groups features two common terminals, providing increased wiring flexibility and redundancy for signal grounding. To ensure high-speed processing, the module maintains a typical response time of 2 ms, while providing 1500 Volts of galvanic isolation between the field side and the logic side to protect the PLC backplane from industrial voltage surges.

Detailed Technical Specifications

The following table summarizes the electrical and operational performance of the IC693MDL653.
