IC693MDL732D GE Series 90-30 Digital Output Modules
Manufacturer: GE Fanuc
-
Part Number: IC693MDL732D
Condition：New with Original Package
Product Type: Digital Output Modules
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

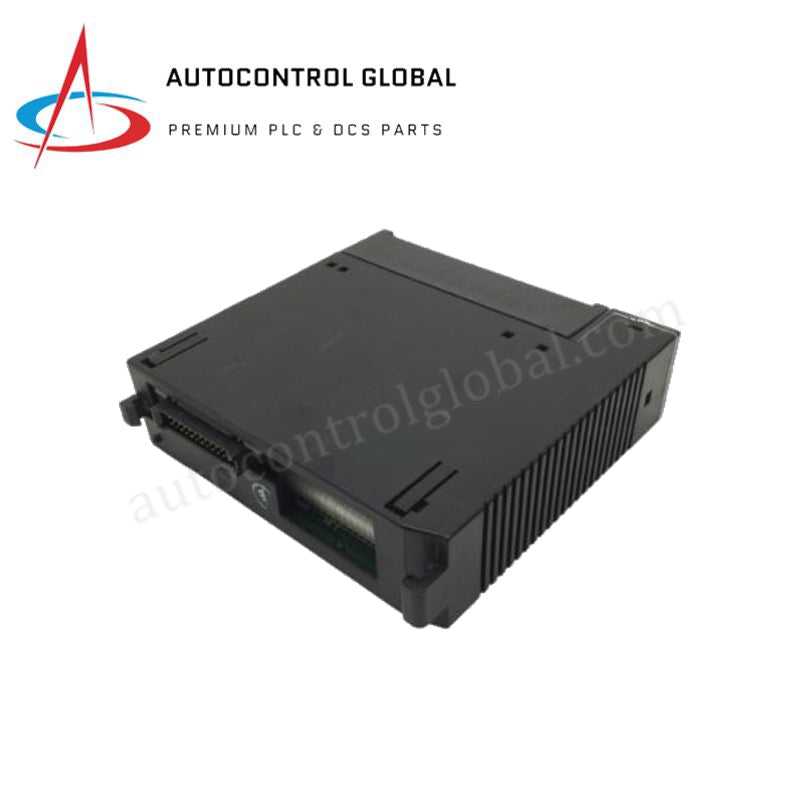

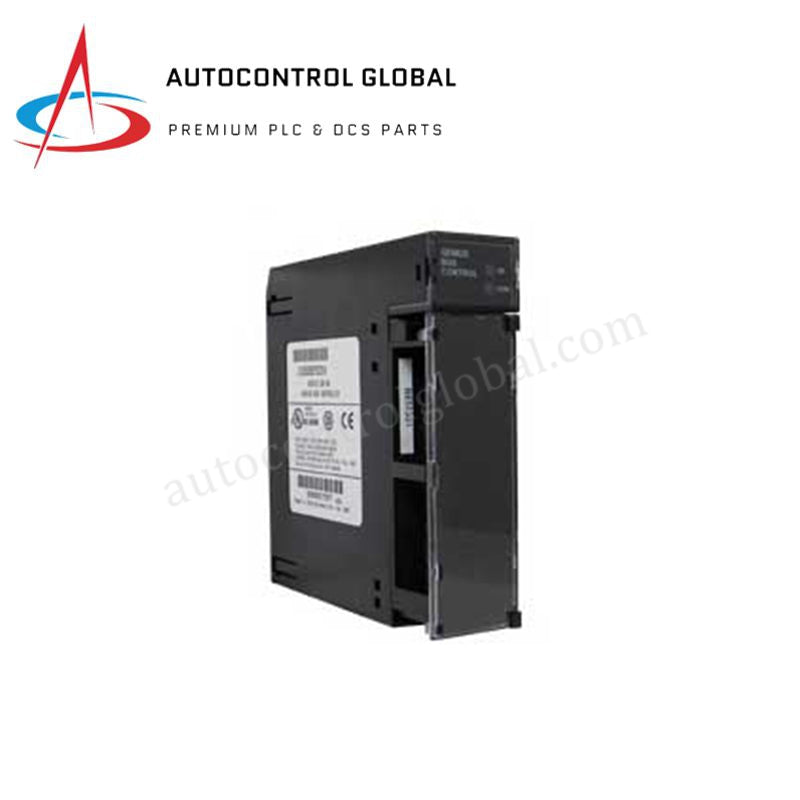

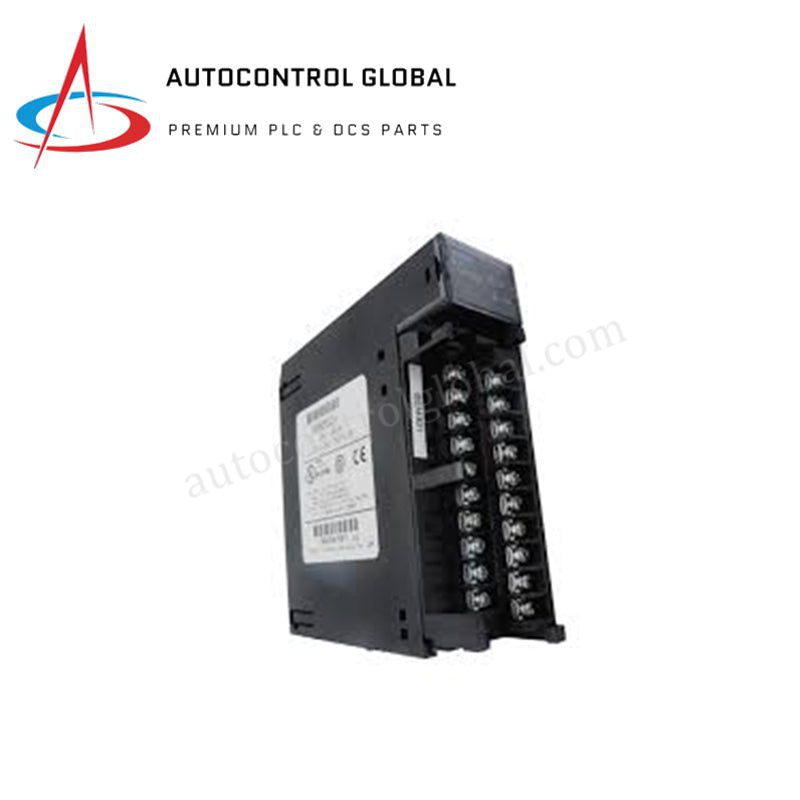

GE Fanuc IC693MDL732D Series 90-30 Digital Output Module
The GE Fanuc IC693MDL732D, also cataloged as the IC693MDL732 Digital Output Module, operates as a dedicated hardware component for sourcing discrete signal switching within Series 90-30 PLC platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC693MDL732D |
| Brand | GE Fanuc |
| Origin | USA |
| Weight | 0.20 kg |
| Dimensions | Single-slot Series 90-30 module form factor |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | 50 mA from +5 VDC backplane bus supply (all outputs ON) |
| Rated Output Voltage | 12/24 VDC (operating range 12 to 24 VDC +20%, -15%) |
| Output Points | 8 points (1 isolated group with shared common) |
| Output Current Rating | 0.5 A maximum per point (2 A maximum per common group) |
| Isolation | 1500 V RMS field-to-logic isolation |
| Response Time | 2 ms maximum ON delay / 2 ms maximum OFF delay |
| Off-State Leakage Current | 1 mA maximum |
| Internal Voltage Drop | 1 VDC maximum at rated current |
| Terminal Color Code | Blue faceplate insert (low-voltage DC module) |
Deterministic Backplane Execution & Logic Switching
The module coordinates real-time field actuation by transferring discrete output data over high-speed backplane bus communication velocity Licences. Operating on positive sourcing logic, the unit controls inductive loads, solenoids, relays, and indicator lamps by connecting the positive terminal of an external 12/24 VDC field supply to field devices. Internal firmware flash compatibility ensures synchronized scan execution with Series 90-30 CPUs, delivering deterministic state transitions with switching latency under 2 ms. Optocouplers provide galvanic optical isolation rated at 1500 V RMS, preventing field-side voltage spikes from penetrating the central backplane architecture.
Frequently Asked Questions
Q: Does the module feature internal fused overcurrent protection for field wiring short circuits?
A: No internal fuses are present on the circuit board; technicians must install fast-acting external fuses rated for the specific conductor current limit on each output line or shared common bus.
Q: What is the maximum allowable continuous current draw if all 8 outputs operate simultaneously?
A: The shared common terminal enforces a strict thermal limit of 2 A maximum per group, meaning the average current per point must not exceed 0.25 A when all 8 channels remain energized at the same time.
Q: Can this module be installed into expansion baseplates without local CPU configuration updates?
A: The hardware fits into any standard I/O slot of a Series 90-30 5-slot or 10-slot baseplate, relying on automatic slot identification by the primary CPU controller during initialization.
Field Installation Guidelines
- Power Isolation & ESD Safety: Turn off all primary power sources supplying the baseplate rack and field loop circuits before insertion. Attach a grounded electrostatic discharge (ESD) wrist strap to the panel metal frame.
- Physical Slot Engagement: Slide the module into any available I/O slot in the Series 90-30 baseplate, pushing firmly until the top and bottom retention latches engage the rack frame.
- Field Terminal Wiring: Connect the 12/24 VDC positive terminal from an external power supply to the designated field power point on the removable terminal block, running individual output leads directly to the load terminals.
- Wire Separation & Cable Routing: Route DC output wiring in dedicated wireways separate from high-voltage AC cables, maintaining a minimum spacing of 30 cm to suppress inductive noise coupling.
- Inductive Suppression: Install flyback suppression diodes directly across the terminals of all field-mounted DC inductive solenoids and relay coils to mitigate voltage transients during high-speed switching.
