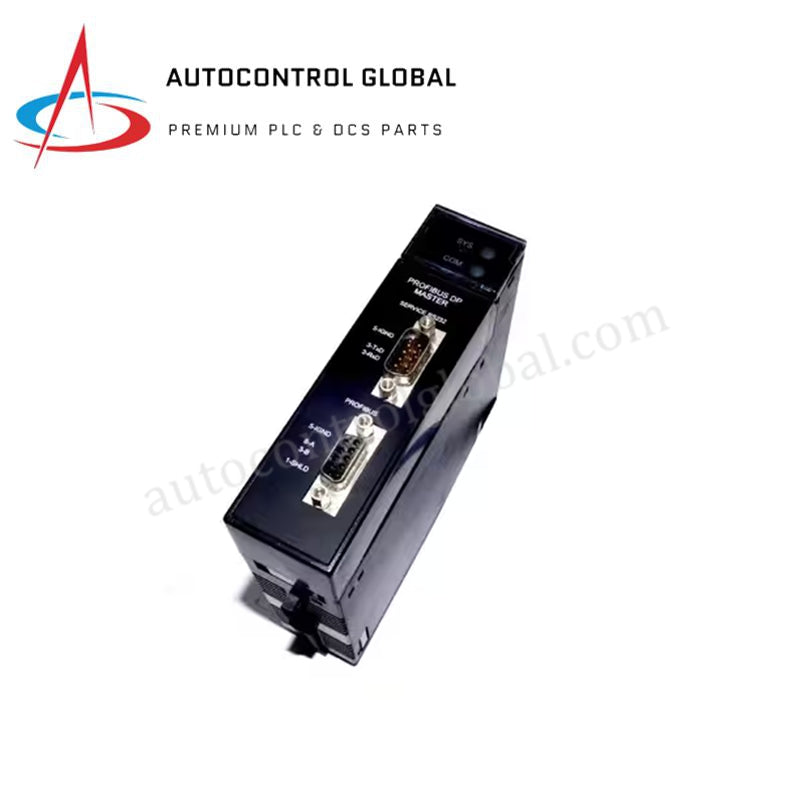

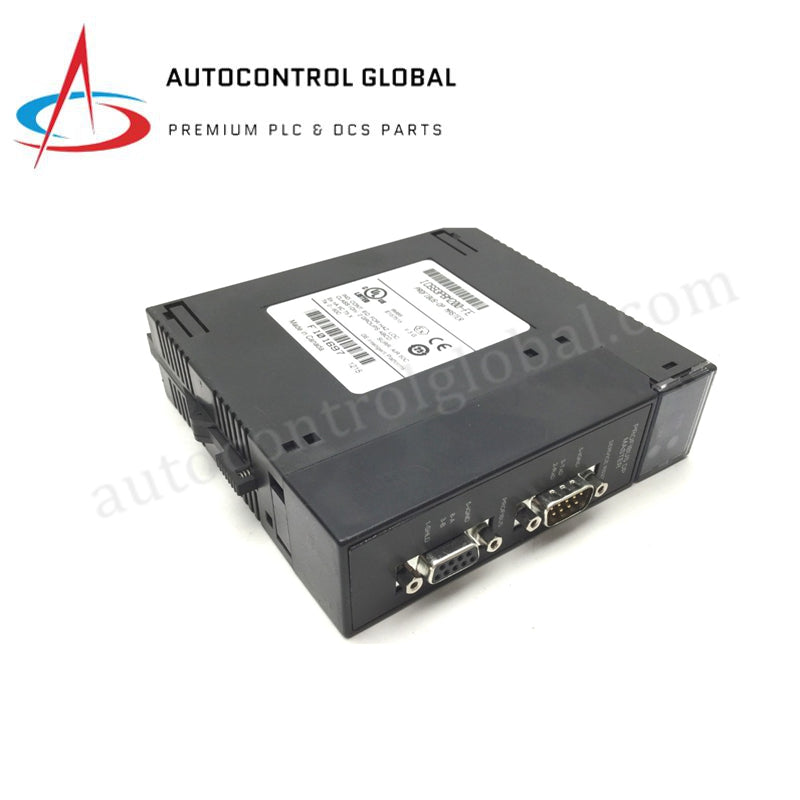

IC693PBM200 Emerson 90-30 PLC PROFIBUS Interface Card

Product Overview

The GE Fanuc IC693PBM200 acts as the high-speed communication gateway for Series 90-30 PLC systems, enabling seamless integration with PROFIBUS-DP networks. This module functions as a Class 1 Master, allowing the PLC to orchestrate distributed I/O, motor starters, and intelligent field devices. By offloading complex network management from the CPU, the IC693PBM200 maintains high system throughput even when managing up to 125 slave devices. It provides the essential link for modernizing legacy 90-30 architectures within multi-vendor automation environments.

Technical Specifications

The IC693PBM200 facilitates high-bandwidth data exchange across the industrial plant floor:

Engineering Advantages

• High-Speed Determinism: The module supports the maximum PROFIBUS specification of 12 Mbps. This ensures low-latency synchronization between the central 90-30 PLC and remote I/O drops, which is vital for high-speed packaging and motion-sensitive applications.

• Massive Scalability: By supporting up to 125 DP slaves, a single IC693PBM200 eliminates the need for multiple communication cards. Engineers can expand the network using standard repeaters to cover vast distances across utilities or manufacturing plants.

• Advanced Network Diagnostics: The module maintains a Slave Status Bit Array table and internal diagnostic counters. These tools allow operators to identify specific network failures or faulty slave nodes directly from the PLC registers, drastically reducing troubleshooting time.

• Seamless Hardware Integration: The IC693PBM200 fits into any standard Series 90-30 baseplate slot. It utilizes the standard GE Fanuc programming environment for configuration, ensuring that existing logic and hardware remain compatible during network expansions.

FAQs

Q1: Does the IC693PBM200 support PROFIBUS-PA devices?

A1: The IC693PBM200 communicates natively via PROFIBUS-DP. To connect PROFIBUS-PA field instruments (commonly used in hazardous areas), you must use a DP/PA segment coupler. The Master module will then recognize the PA devices as standard DP nodes.

Q2: Is special software required to configure the PROFIBUS network?

A2: Yes. You require a GSD (General Station Description) file for every slave device on the network. You import these into the GE Fanuc configuration tool (such as Proficy Machine Edition) to define the I/O mapping and baud rates for the IC693PBM200.

Q3: How do I handle the termination of the PROFIBUS line?

A3: The PROFIBUS standard requires active termination at both physical ends of the cable run. Ensure the 9-pin Sub-D connector attached to the IC693PBM200 has the termination switch set to "ON" if the module sits at the end of the segment.

Q4: Can this module function as a PROFIBUS Slave?

A4: No. The IC693PBM200 is a dedicated Master Module. If you need to connect a Series 90-30 PLC as a slave to another master (such as a Siemens S7 or an RX3i), you must use the IC693PBS201 Slave Module instead.
