IC693PWR321AA GE Fanuc Series 90-30 Datasheet & Technical Manual

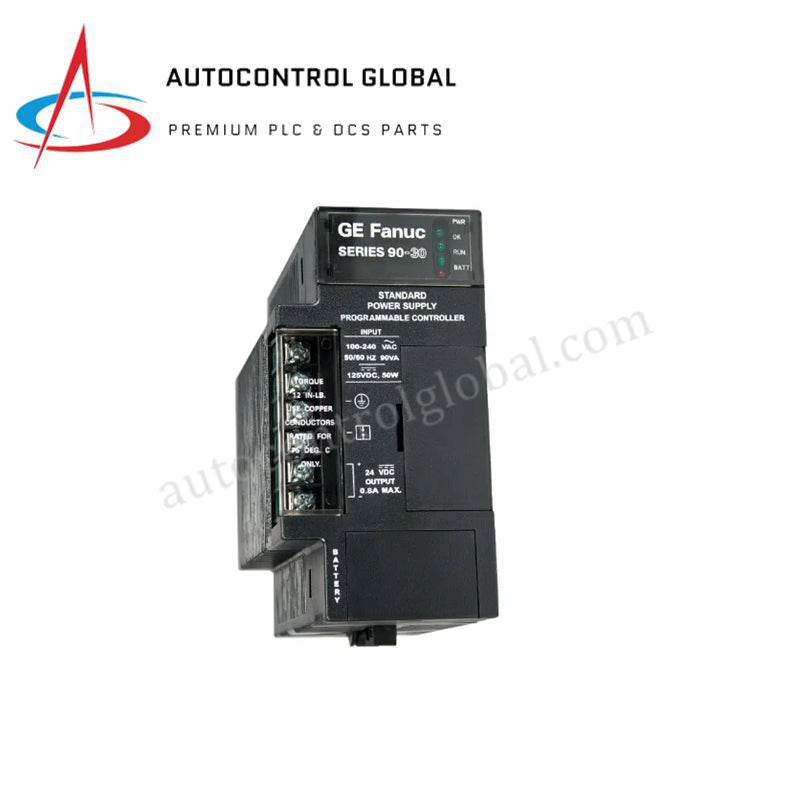

GE Fanuc IC693PWR321AA Series 90-30 Power Supply Module

The GE Fanuc IC693PWR321AA, also cataloged as the IC693PWR321 Power Supply Module, operates as a dedicated hardware component for regulated DC power distribution within GE Fanuc Series 90-30 PLC platforms. The module executes raw AC-to-DC rectification and stepping profiles, utilizing an isolated transform layer to step down primary utility feeds into precise low-voltage rails that energize the system backplane logic board and connected peripheral slots.

Hardware Specifications

Industrial Control and Drive Attributes

The internal transformer configuration is matched to execute steady power filtering parameters across high I/O density scaling setups. This layout prevents electrical transient dips from disrupting logic states during high-speed data transmission over Profinet / EtherNet/IP deterministic networks hosted on the same backplane bus communication velocity Licences. The isolated output circuit architecture blocks localized noise loop propagation, ensuring absolute firmware flash compatibility across active memory modules by sustaining steady potential baselines on the +5 VDC logic rail and the complementary +/-12 VDC auxiliary loops.

Frequently Asked Questions

Q: What are the backplane load restrictions when operating this power module near its upper thermal envelope?

A: The IC693PWR321AA maintains its full 30 W output specification up to an ambient temperature boundary of 32 deg C. Operating above this threshold requires linear thermal capacity derating, which curtails the maximum current available to the +5 VDC and +/-12 VDC rails to protect switching components from thermal breakdown.

Q: Is hot-swap removal permitted for this module during active PLC logic execution?

A: No. The Series 90-30 backplane requires complete input power de-energization before extracting or inserting the power supply module. Swapping the hardware under active load will induce an immediate drop on the logic bus, halting execution and risking hardware pin arcing.

Q: Does this power supply require manual jumper configuration to switch between 120 VAC and 240 VAC input limits?

A: No. The internal conversion circuit utilizes auto-ranging technology that senses the primary line input voltage within the 47-63 Hz frequency window and self-adjusts without mechanical slider changes.

Field Installation Guidelines

• Chassis Engagement and Fastening: Insert the power supply housing into the dedicated far-left slot of the Series 90-30 baseplate. Pivot the module firmly until the rear connector snaps into the backplane, then lock the top and bottom mechanical tabs to suppress physical vibration.
• AC Supply Termination Protocol: Route the primary AC input wires through dedicated low-voltage trunk conduits. Secure the stripped line and neutral wires to the integrated screw terminals using a calibrated torque tool to eliminate high-resistance points.
• Grounding and Shield Matrix: Connect a heavy-gauge copper ground conductor from the primary chassis PE terminal directly to the central panel enclosure earth ground bar. This path discharges 1500 VAC transient spikes and blocks common-mode industrial noise.
• Convection Path Airflow: Ensure that adjacent components or wire trays maintain adequate vertical and horizontal clearance boundaries around the module's exterior casing. Unobstructed passive airflow is required to prevent heat buildup since no internal cooling fan is used.
