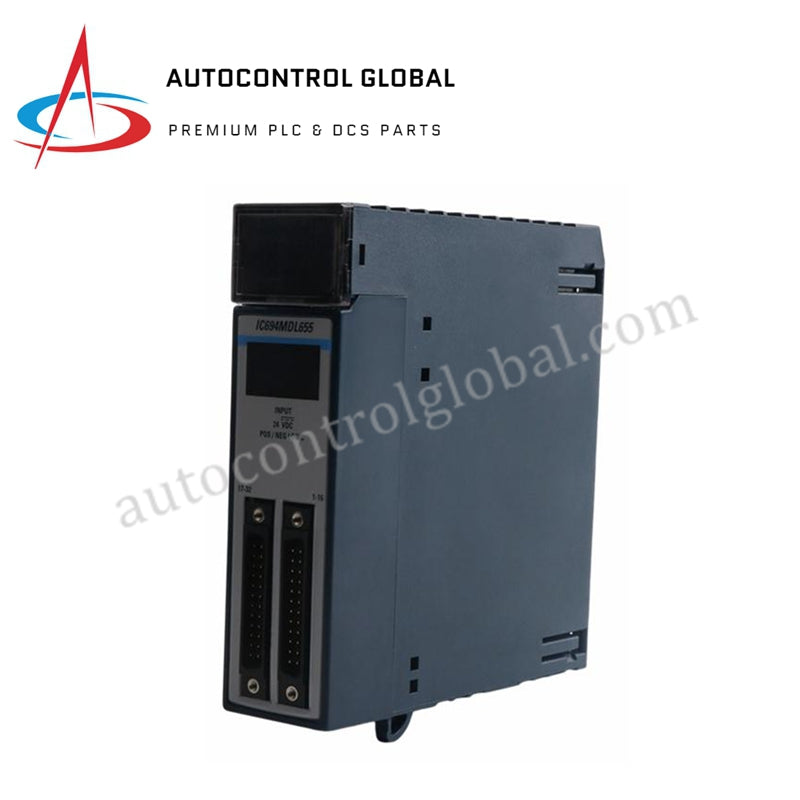

IC694MDL655 GE Fanuc Positive / Negative Logic Discrete Input Module

  • Manufacturer: GE Fanuc

  • Part Number: IC694MDL655

  • Condition：New with Original Package

  • Product Type: Positive / Negative Logic Discrete Input Module

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

Overview

The IC694MDL655 is a High Density Discrete Input Module from the GE Fanuc PACSystem RX3i series. It supports both positive and negative logic configurations, providing reliable input handling for control applications.

Key Specifications

  • Model: IC694MDL655

  • Product Type: Discrete Input Module

  • Channels: 32 (8 channels per group)

  • Number of Groups: 4

  • Logic: Positive/Negative

  • Wiring Configuration: Positive / Negative Logic

Electrical Characteristics

  • Input Voltage Range: 0-30 VDC (Nominal 24 VDC)

  • Rated Voltage: 48V DC

  • Input Signal Range: 0-30 VDC

  • Input Current: 7.0 mA at rated voltage (1.7 mA at 48V DC)

  • On-State Voltage: 11.5 to 30.0 VDC

Performance Features

  • Maximum Response Time (On/Off): 2 ms

Applications

  • Primary Application: RX3i PACSystems
