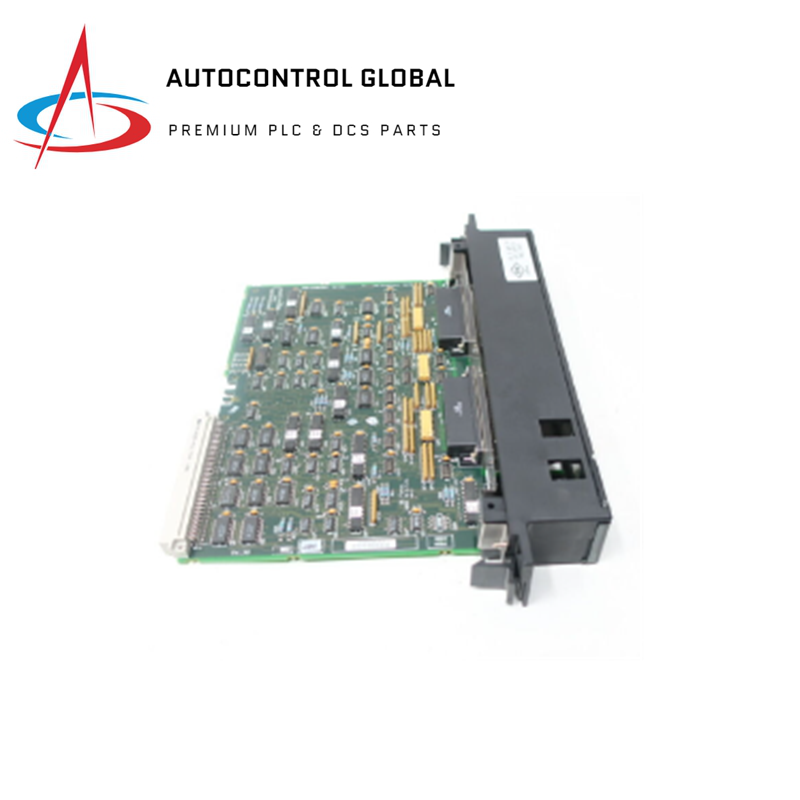

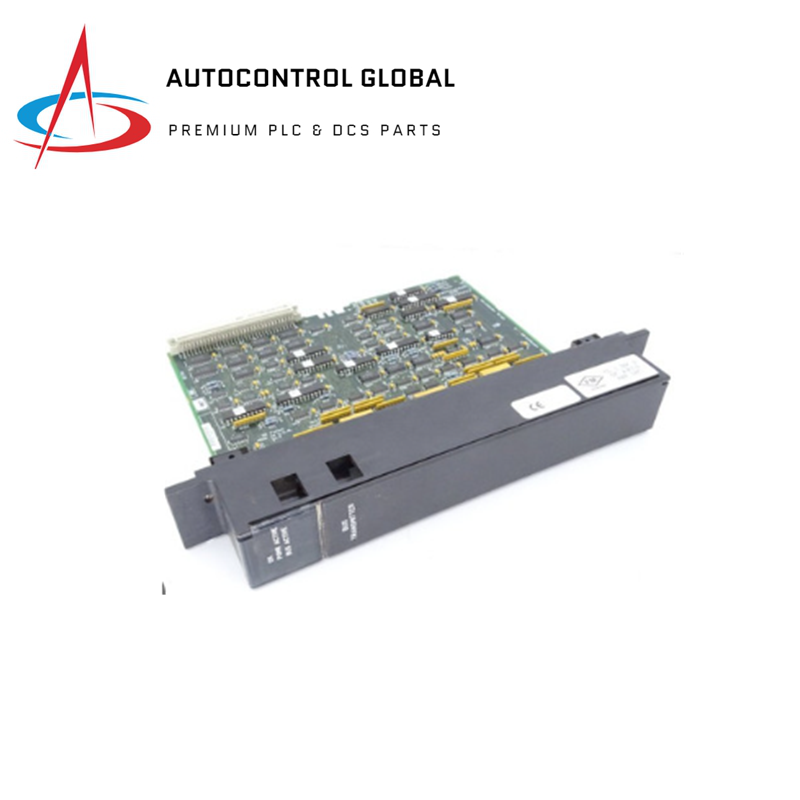

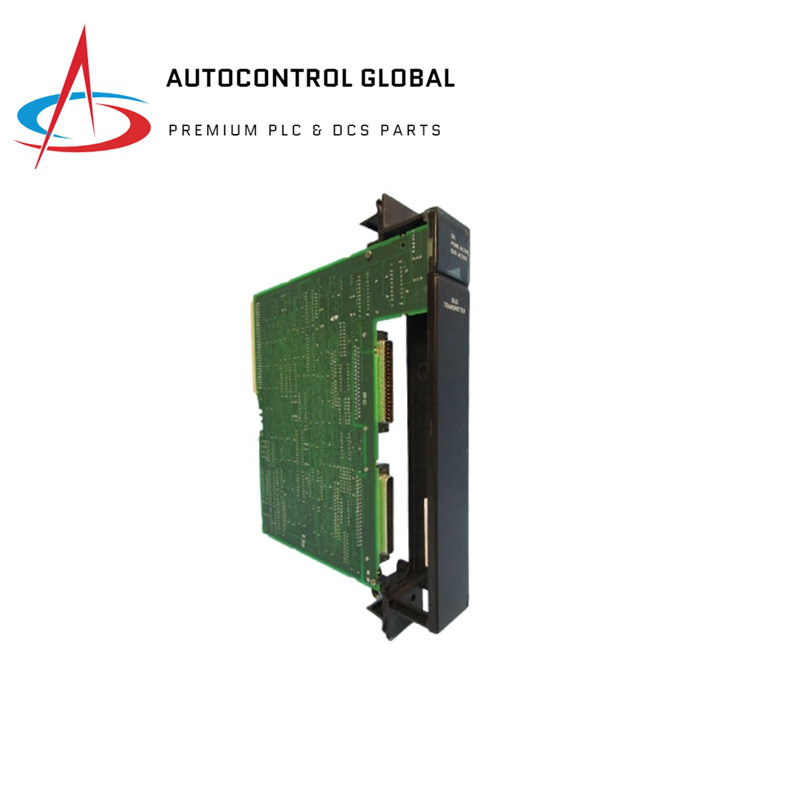

IC697BEM713 | GE Fanuc | Bus Transmitter Module

Technical Specifications

• Voltage Requirement: 5 Volts DC from the system backplane
• Current Draw: 1.4 Amps
• Data Rate: 500 kilobytes per second
• Maximum Cable Length: 50 feet
• Time to Store 16 Kbyte Program: 20-30 Seconds
• Slot Requirement: Occupies a single slot in the chassis

Additional Features

• High-Performance Parallel Programming Function: Facilitates efficient parallel programming, enhancing overall system performance.
• Easy Configuration: No need for DIP switches, simplifying the setup process.
• Status LEDs: Three LEDs provide status indications for each port and the module itself, aiding in monitoring and troubleshooting.

Applications

• Expansion Capability: The IC697BEM713 allows for the expansion of the main CPU rack to accommodate additional modules, supporting up to seven additional IC697 PLC racks.
• Programming Interface: Provides a high-performance parallel interface to the programming device, optimizing the programming and configuration process.
