IC697PWR720D GE Fanuc Power Supply Module | New & Original Stock

  • Manufacturer: GE Fanuc

  • Part Number: IC697PWR720D

  • Condition:New with Original Package

  • Product Type: Power Supplies

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

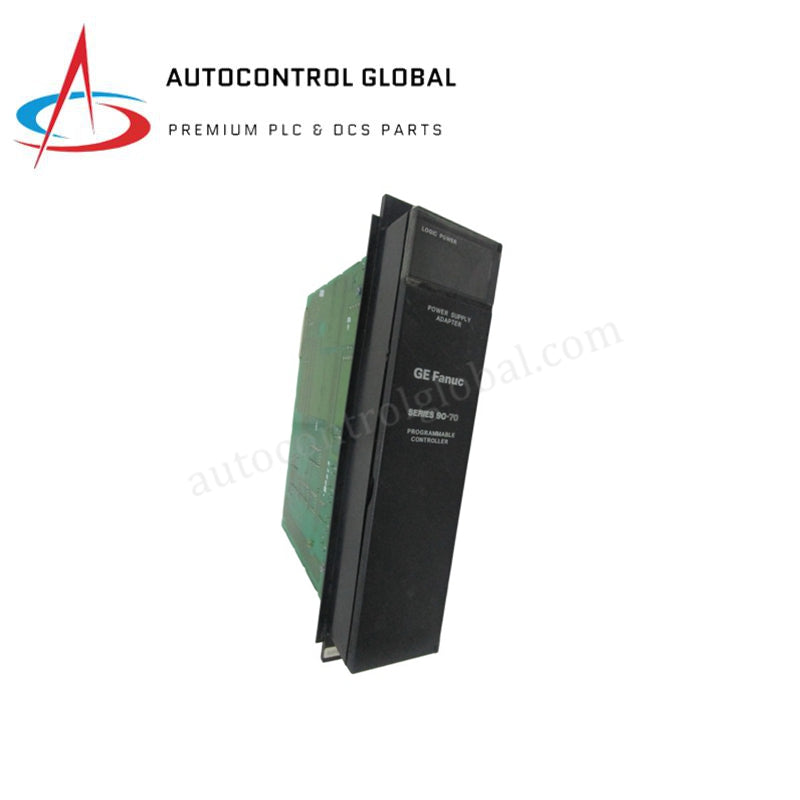

GE Fanuc IC697PWR720D Series 90-70 Power Supply Module

The GE Fanuc IC697PWR720D, also cataloged as the IC697PWR720 Power Supply Module, operates as a dedicated hardware component for regulated DC power distribution within GE Fanuc Series 90-70 PLC platforms. It installs directly into the dedicated power supply slot of the rack chassis, converting external primary AC input lines into multiple stabilized DC voltage rails required to energize the local CPU, backplane communication buses, and discrete I/O hardware sub-assemblies.

Hardware Specifications

Parameter Specification
Model IC697PWR720D
Brand GE Fanuc
Origin [Information Not Specified]
Weight 0.9 kg (1.25 lbs)
Dimensions 132 mm x 36 mm x 100 mm
Operating Temp 0 to +60 deg C
Power Consumption 150 W maximum (Input Power)
Input Voltage 120/240 VAC (auto-ranging)
Input Frequency 47-63 Hz
Output Power 100 W total capacity
Output Voltages +5 VDC (5.07 V nominal), +12 VDC (+12 V nominal), -12 VDC (-12 V nominal)
Output Current to Rack +5 VDC at 18 A (Rating 1) / 20 A (Rating 2); +12 VDC at 2 A; -12 VDC at 1 A
Current Draw from 5V Bus 50 mA (0.250 W) for internal module logic
Efficiency >= 70%
Isolation 1500 VAC input-to-output
Ride-Through Time >= 20 ms at full load
Slot Width Single slot width
System Compatibility IC697 and VME integrator rack (VME standard C.1)
Certifications UL, CE, CSA, IEC 61131-2

Industrial Control and Drive Attributes

The power module is engineered to support backplane bus communication velocity Licences and structural stability within the VME standard C.1 architecture. It implements high-capacity power distribution configurations that scale cleanly across dense I/O density configurations, preventing common-mode voltage drops from compromising backplane logic transitions. The internal power conversion stages are optimized to maintain stable rail parameters during high-frequency data polling over Profinet / EtherNet/IP deterministic networks connected to adjacent rack processors, ensuring firmware flash compatibility remains unaffected by local voltage sags.

Frequently Asked Questions

Q: What are the backplane load restrictions regarding dual rack operations using this module?

A: The IC697PWR720D natively supports dual rack operation when linked via an IC697CBL700 power supply expansion cable. A specific hardware jumper must be applied at the terminal interface when the logic routing configuration is set to negative.

Q: How does the internal ride-through time attribute protect the running PLC program?

A: The storage capacitance matrix provides a ride-through time metric of 20 ms minimum at 100 W full load, sustaining the +5 VDC, +12 VDC, and -12 VDC outputs during momentary primary AC grid micro-interruptions to avoid CPU reset loops.

Q: Are there thermal derating parameters affecting full load execution?

A: Yes, the 100 W output power capacity is sustained up to an ambient envelope of approximately 32 deg C. Operating the system beyond this thermal metric up to the 60 deg C maximum limit requires linear output capacity reduction to protect internal switching transistors.

Field Installation Guidelines

  • Chassis Insertion and Seating: Slide the power supply module into the leftmost dedicated slot of the Series 90-70 rack. Push firmly until the backplane connectors line up perfectly and engage completely, then secure the chassis retaining screws.
  • AC Input Wire Termination: Route the 120/240 VAC primary source wires into the barrier terminal strip. Strip wire insulation cleanly and apply correct industrial compression sleeves to ensure low-resistance paths and eliminate electrical arcing risks.
  • System Grounding Implementation: Connect a thick, low-impedance copper ground strap from the module frame ground terminal screw directly to the main enclosure backpanel earth ground busbar to suppress high-frequency EMI.
  • Ventilation and Clearances: Since this hardware relies completely on convection cooling, ensure that internal wire ducts or adjacent components do not block the ventilation openings at the top and bottom of the rack assembly.
