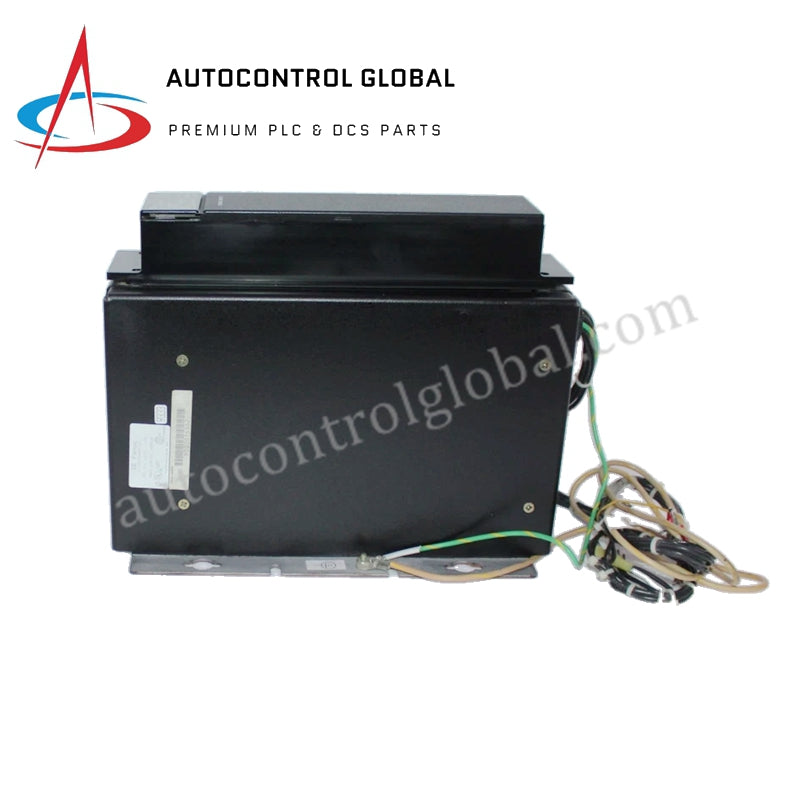

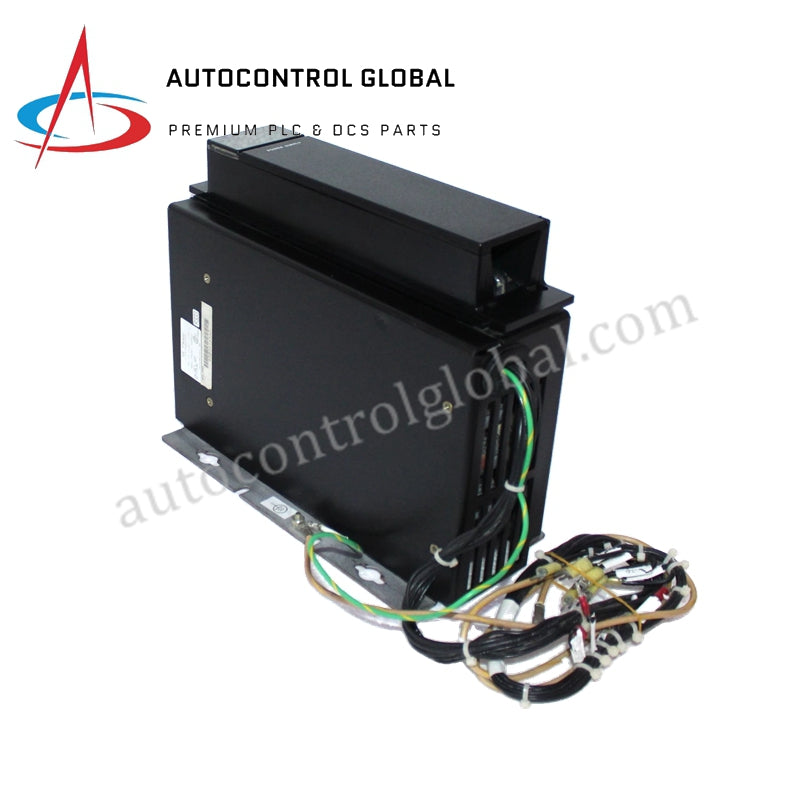

IC697PWR722 GE Fanuc 24 VDC Power Supply Module
Manufacturer: GE Fanuc
-
Part Number: IC697PWR722
Condition：New with Original Package
Product Type: Power Supply Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
The GE IC697PWR722 is a 24 VDC Power Supply Module for the 90-70 series, providing regulated DC outputs and electronic protection features.
Electrical Specifications
-
Nominal Voltage: 24 VDC
-
Input Voltage Range: 21–32 VDC
-
Input Power: 156 W at full load
-
Output Power: 90 W
-
DC Outputs: +5 VDC (16.5 A), +12 VDC (1.5 A), -12 VDC (1.0 A)
Features
-
FM Certified
-
Short circuit and overcurrent protection on all outputs
-
Input power fail and system reset signals
-
TTL logic shutdown signal for compatible racks
Installation
-
Mounts externally to rack left side or as a stand-alone unit
-
Connects to IC697PWR720 PSA module for backplane integration
-
Supports single or dual rack applications with prewired interconnection cable
Limitations
-
Total load on multiple racks must remain within supply rating
-
Requires PSA module for proper logic sequencing and power distribution
