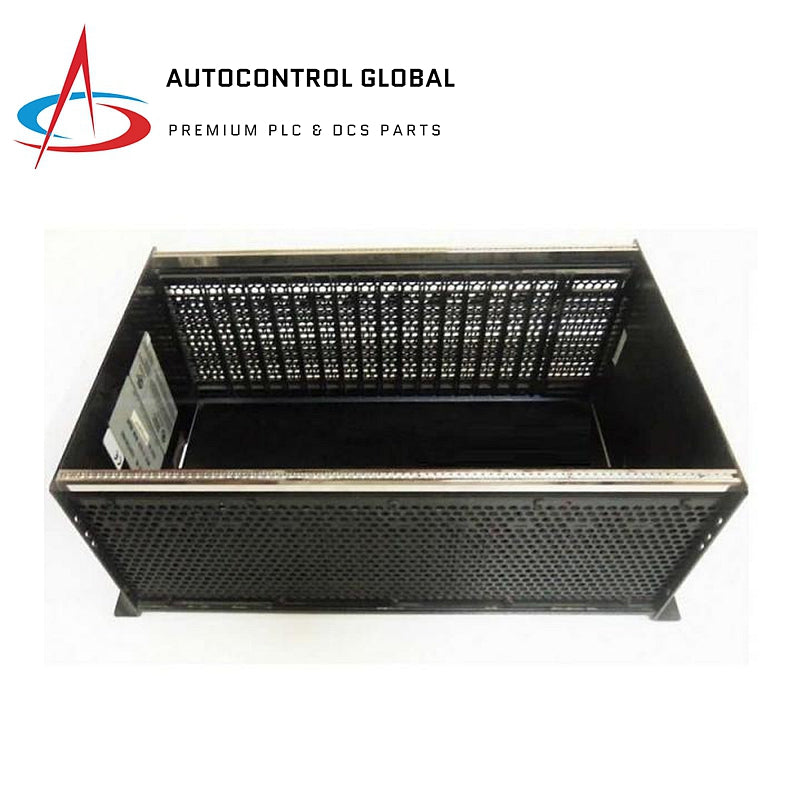

IC698CHS117 | GE Fanuc | Rx7i 17-Slot Front Mount Rack

Overview

IC698CHS117 is a 17-Slot Front Mount Rack from the GE Fanuc RX7i Series, designed for PACSystems applications. It supports RX7i CPUs, I/O configurations, Series 90-70 I/O, and VME modules. The rack provides slot sensing for rack-type I/O modules and is compatible with both single-width and double-width modules.

General Information

• Part Number: IC698CHS117
• Manufacturer: GE Fanuc
• Product Type: Standard Rack
• Mounting Location: Front
• Slot Configuration:
  • 15 Single Width
  • 8 Double Width

Specifications

• Slot Size: 0.8 inches
• Dimensions:
  • Height: 11.15 inches (28.3 cm)
  • Width: 19.0 inches (48.3 cm)
  • Depth: 7.5 inches (19.1 cm)
• Power Supply: RX7i Power Supply in Slot 0
  • Slot 0: Power supply slot (2.4 inches wide)
• Maximum Current:
  • 100W Supply:
    • +5V: 20 Amps
    • +12V: 2 Amps
    • -12V: 1 Amp
  • 350W Supply:
    • +5V: 60 Amps
    • +12V: 12 Amps
    • -12V: 4 Amps
• I/O Configuration: User-configurable via programming/configuration software

Physical Characteristics

• Rack Slot Size: 0.8 inches
• Power Supply Slot: 2.4 inches wide
