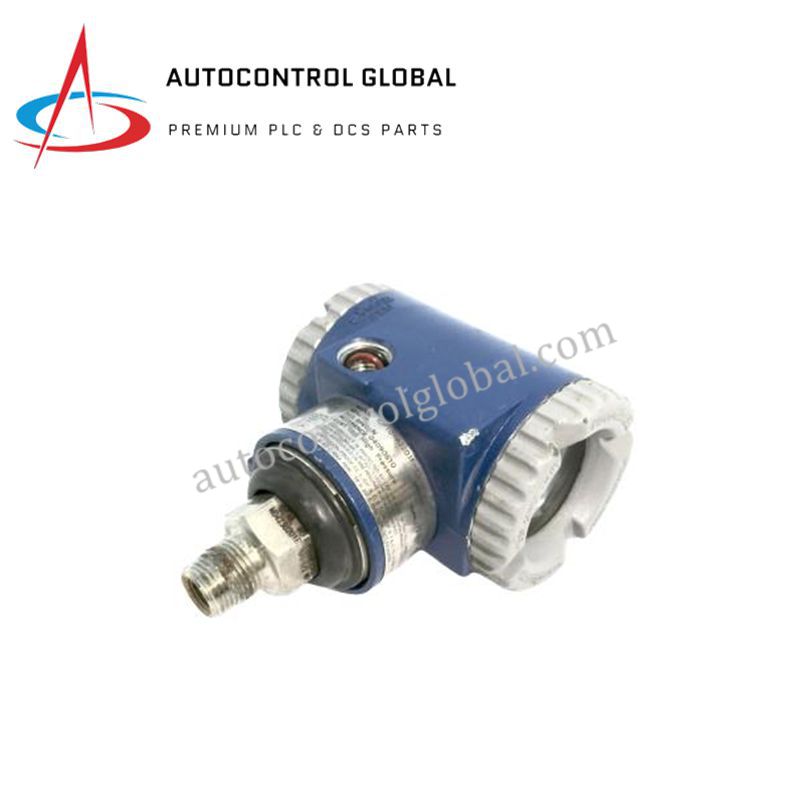

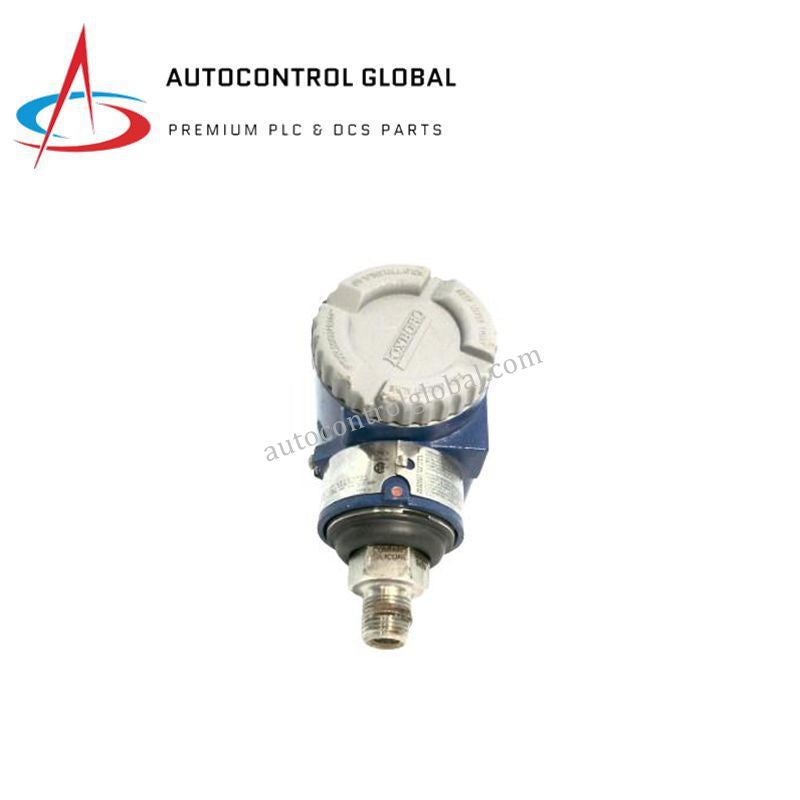

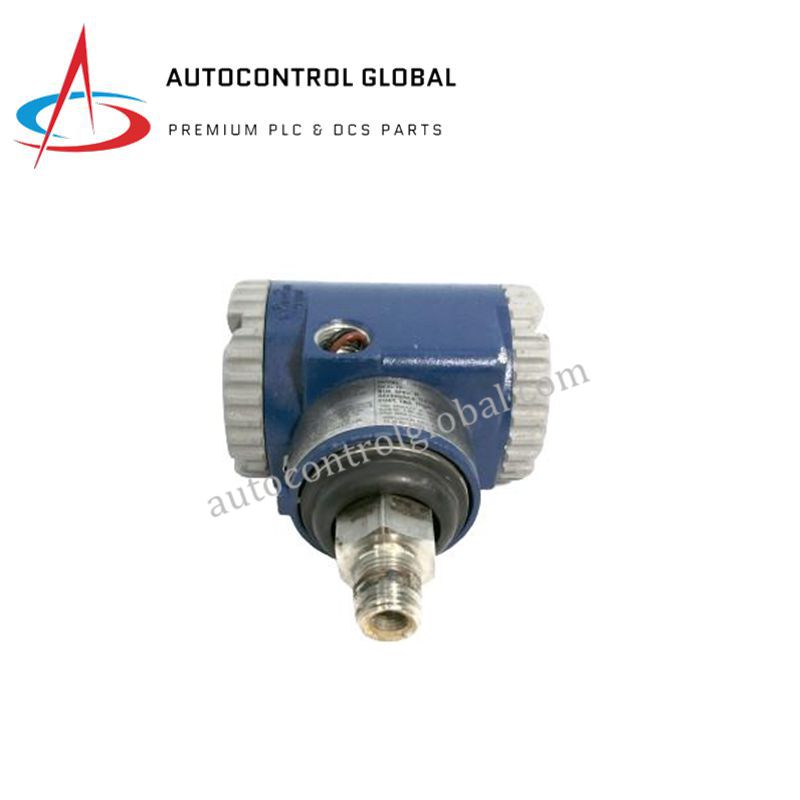

IGP10-A22D1F | FOXBORO High-Accuracy Pressure Sensor
Manufacturer: Foxboro
-
Part Number: IGP10-A22D1F
Condition：New with Original Package
Product Type: High-Accuracy Pressure Sensor
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
FOXBORO IGP10-A22D1F | Intelligent Gauge Pressure Transmitter
Overview
The FOXBORO IGP10-A22D1F is a compact, high-precision gauge pressure transmitter designed for industrial process control. It measures gauge pressure in gases, liquids, and steam and provides reliable 4–20 mA analog output with optional digital HART communication.
Engineered for rugged industrial environments, the IGP10-A22D1F features a piezo-resistive silicon sensor, excellent turndown ratio, and advanced temperature compensation. Its threaded 1/4-inch NPT connection allows direct mounting on process lines, making installation fast and flexible. Ideal for chemical, petrochemical, power generation, and water treatment applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | IGP10-A22D1F |
| Type | Intelligent Gauge Pressure Transmitter |
| Pressure Range | 0 to 6000 psi (0 to 42,000 kPa) |
| Output Signal | 4–20 mA analog with digital HART communication |
| Accuracy | ±0.05% of calibrated span |
| Turndown Ratio | Up to 100:1 |
| Sensor Technology | Piezo-resistive silicon sensor with temperature compensation |
| Process Connection | 1/4-inch NPT male thread |
| Wetted Materials | 316L stainless steel, nickel alloy, or Co-Ni-Cr alloy |
| Enclosure Material | Aluminum or stainless steel |
| Environmental Protection | IP66 / NEMA 4X |
| Operating Temperature | –40°C to +85°C (–40°F to +185°F) |
| Explosion Protection | Optional approvals for Class I Div 1/2 hazardous areas |
| Mounting Options | Direct mount or optional bracket |
| Communication Protocols | HART, optional FOUNDATION Fieldbus or FoxCom |
| Weight | 3.2 lbs (1.45 kg) |
FAQ
Q1: Can the IGP10-A22D1F operate in hazardous areas?
A1: Yes, optional approvals allow use in Class I Div 1/2 hazardous locations.
Q2: What is the maximum pressure range?
A2: The transmitter measures up to 6000 psi (approx. 42,000 kPa).
Q3: What type of sensor technology does it use?
A3: It uses a piezo-resistive silicon sensor with temperature compensation.
Q4: Is the module suitable for outdoor installations?
A4: Yes, it has IP66 / NEMA 4X protection against dust and water.
Q5: What communication protocols are supported?
A5: Standard 4–20 mA analog output with HART; optional FOUNDATION Fieldbus or FoxCom.
