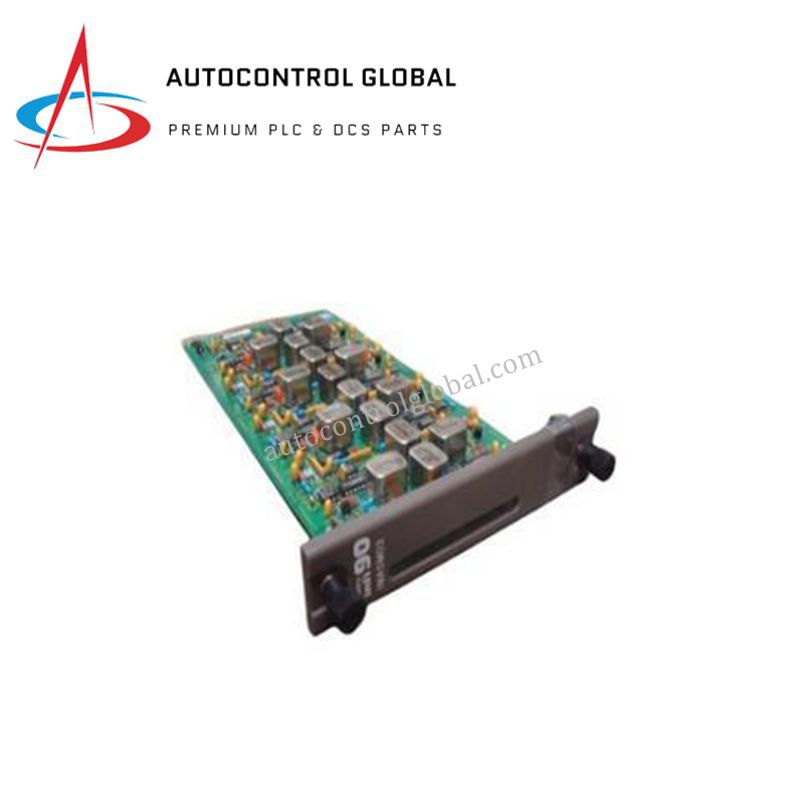

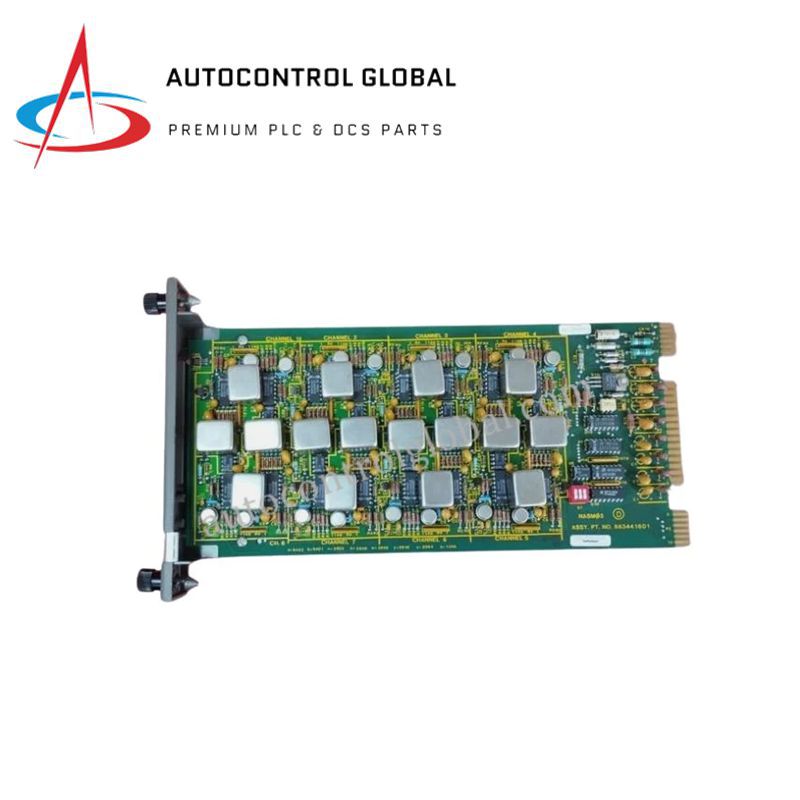

IMASM03 ABB | Infi 90 DCS Analog Slave Expansion Unit
Manufacturer: ABB
-
Part Number: IMASM03
Condition：New with Original Package
Product Type: Infi 90 DCS Analog Slave Expansion Unit
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
The ABB IMASM03 is an Analog Input Slave Module for Bailey Infi 90 and 800xA Distributed Control Systems (DCS). It accepts 8 analog input channels, supporting industrial signals such as 4–20 mA, 0–10 V, and 0–20 mA, providing accurate and fast signal processing.
Up to eight IMASM03 modules can operate with a single Analog Master Module, converting low-level RTD or analog signals into high-level signals for processing. Its rear-mounted design fits chassis like IEMMU01, enabling organized installation and easy modular expansion.
Designed for demanding industrial environments, the IMASM03 ensures robust performance in power generation, chemical processing, oil & gas, and water treatment applications. Built-in diagnostics continuously monitor both the module and connected field devices, supporting proactive maintenance and operational reliability.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | IMASM03 |
| Product Type | Analog Input Slave Module |
| System Compatibility | ABB Bailey Infi 90, 800xA DCS |
| Input Channels | 8 analog inputs |
| Supported Signals | 4–20 mA, 0–10 V, 0–20 mA |
| Resolution | 12-bit |
| Mounting Type | Rear-mounted chassis (e.g., IEMMU01) |
| Diagnostics | Built-in diagnostics for module and field devices |
| Dimensions (L × W × H) | 200 mm × 100 mm × 50 mm |
| Weight | 0.59 kg |
| Country of Origin | Sweden |
| Customs Tariff Number | 85352100 |
| Application Areas | Industrial automation, process control, analog signal acquisition |
FAQ
Q1: How many analog input channels does the IMASM03 support?
A1: The IMASM03 provides 8 analog input channels compatible with standard industrial signals.
Q2: Which signal types are supported by IMASM03?
A2: It supports 4–20 mA, 0–10 V, and 0–20 mA signals for flexible field device integration.
Q3: How many IMASM03 modules can connect to one Analog Master Module?
A3: Up to eight IMASM03 modules can operate with a single Analog Master Module.
Q4: What mounting options are available?
A4: It is rear-mounted, typically in chassis like IEMMU01.
Q5: Is IMASM03 suitable for harsh industrial environments?
A5: Yes, it delivers robust performance, high accuracy, and built-in diagnostics for critical industrial applications.
