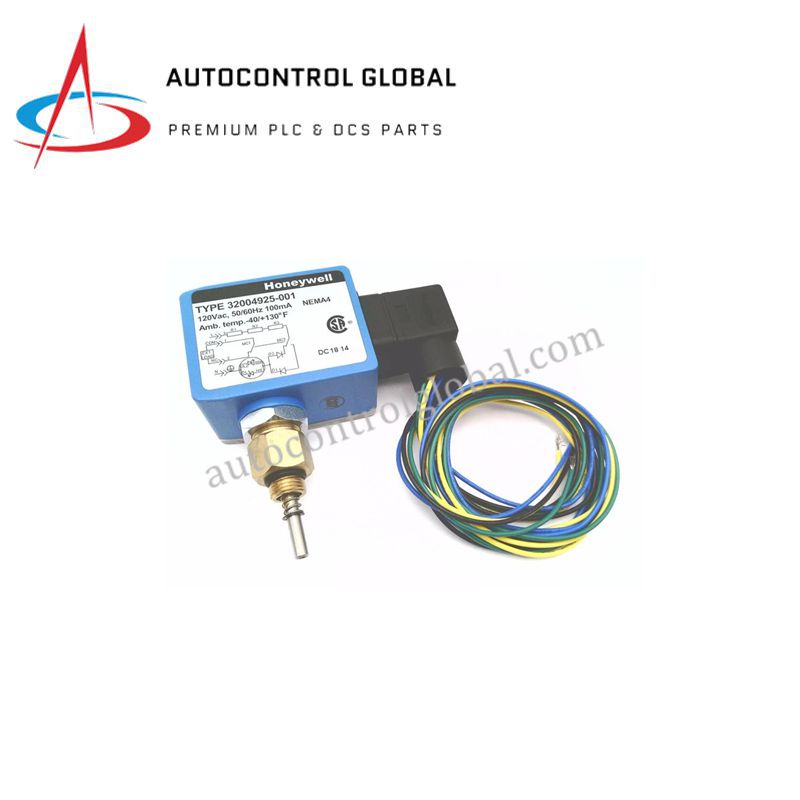

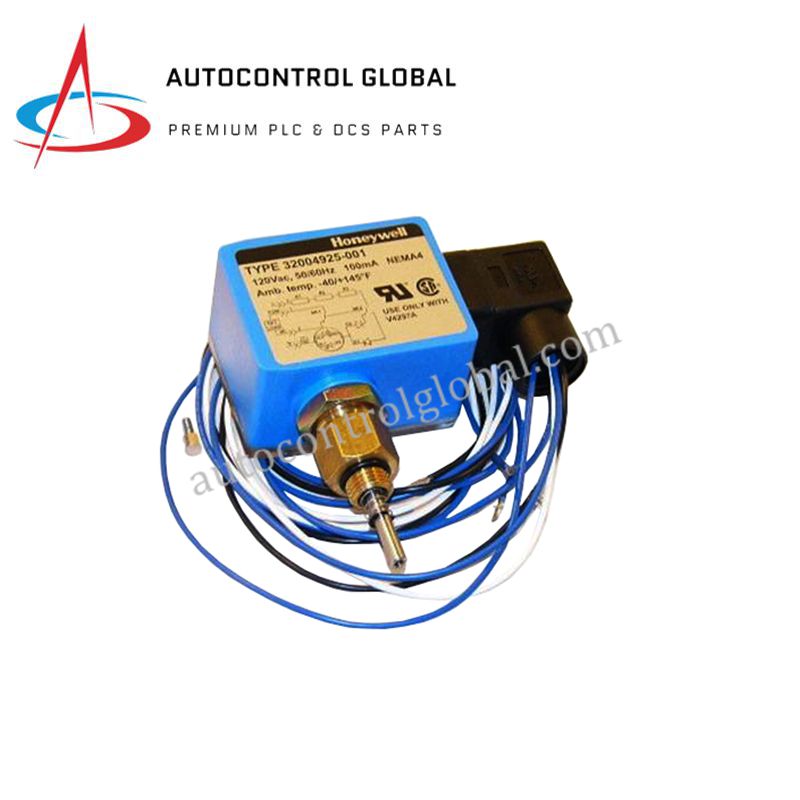

Industrial Honeywell 32004925-001 | Closed Position Indicator

Product Description – Honeywell 32004925-001 Closed Position Indicator Switch

The Honeywell 32004925-001 Closed Position Indicator (CPI) switch provides precise valve position feedback for compatible Honeywell gas valves. It is designed to detect whether valves are fully closed and communicates this status to burner management and control systems. This ensures improved operational safety, compliance with industrial standards, and accurate diagnostics in combustion applications.

Moreover, the CPI switch includes integrated red/green LED indicators for local visual confirmation of valve status. Its rugged industrial design allows reliable operation in demanding environments such as boilers, industrial furnaces, and petrochemical plants. Therefore, this module enhances safety interlocks and system reliability for critical burner management systems.

Technical Specifications

General Information

• Brand: Honeywell

• Model Number: 32004925-001

• Part Number: 32004925-001

• Type: Closed Position Indicator (CPI) Switch / Module

• System Compatibility: Honeywell V4295A Valves (1–2 inch, 5 psi), V4297A SSOV Valves

• Country of Origin: USA

• Shipping Weight: 2 kg


Electrical & Output

• Output Signal: Discrete ON/OFF contact (closed = ON)

• LED Indicators: Red/Green for valve status

• Power Supply: 24 VDC nominal

Physical & Environmental

• Weight: 0.45–2.0 kg (depending on packaging)

• Dimensions: Compact module for valve mounting

• Operating Temperature: –20 °C to +60 °C

• Ingress Protection: IP65 (dust-tight, water-resistant)

• Housing Material: Industrial-grade alloy/plastic composite

• Certifications: CE, UL, CSA

FAQ

Q1: What valves is the 32004925-001 CPI switch compatible with?
A: It is compatible with Honeywell V4295A (1–2 inch) and V4297A SSOV valves.

Q2: How does the module indicate valve status?
A: The module uses a discrete ON/OFF signal and red/green LED indicators.

Q3: Is it suitable for harsh industrial environments?
A: Yes, it features a rugged IP65-rated housing and can operate between –20 °C and +60 °C.

Q4: What power supply is required?
A: The CPI switch operates on a nominal 24 VDC supply.

Q5: Does it comply with industrial safety standards?
A: Yes, it meets CE, UL, and CSA certifications for industrial safety.
