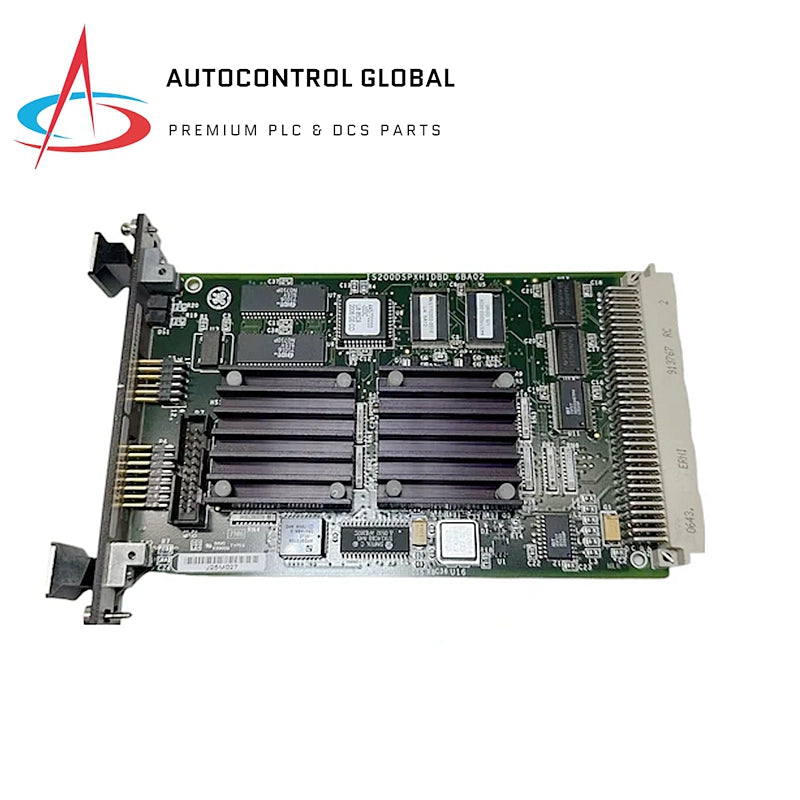

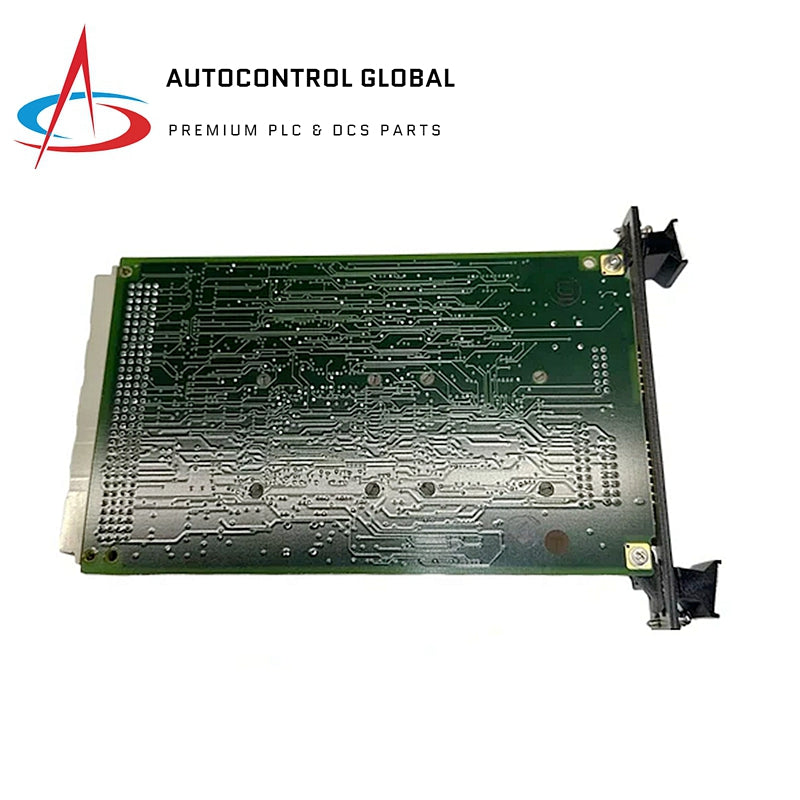

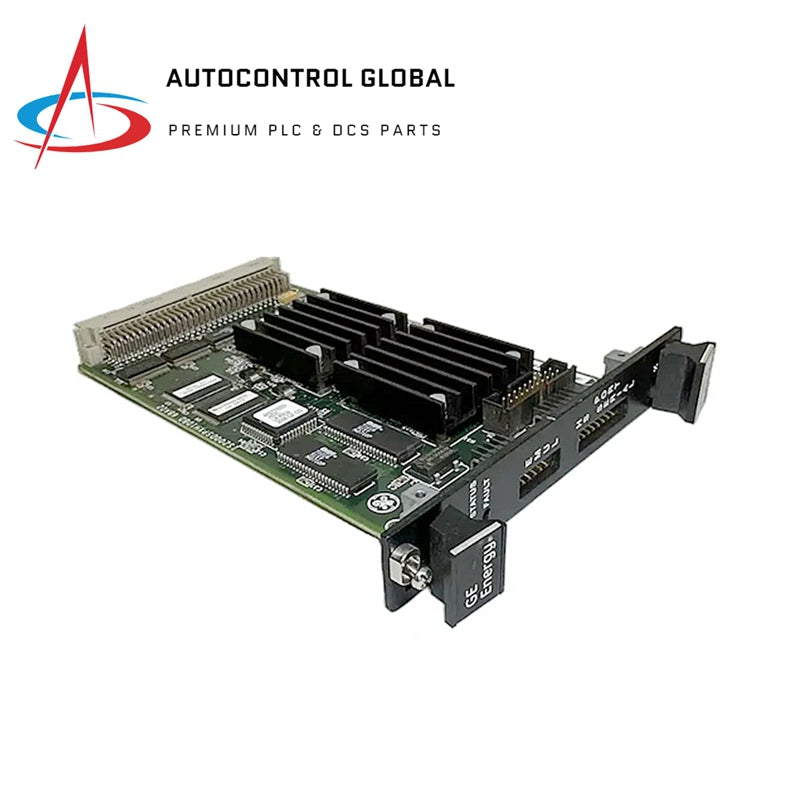

IS200DSPXH1DBD | General Electric | Printed Circuit Board

Overview

The IS200DSPXH1DBD is a Digital Signal Processor (DSP) Control Board from General Electric, designed for use in the Mark VI Speedtronic system. This board is primarily used in Innovation Series drives and EX2100 exciters.

General Information

• Manufacturer: General Electric
• Model: IS200DSPXH1DBD
• Product Type: Printed Circuit Board
• System: GE Mark VI Speedtronic
• Applications: Innovation Series drives, EX2100 exciters

Design and Features

• Form Factor: Small rectangular board with front faceplate
• Digital Signal Processor: Connected to an ASIC for custom logic functions
• Onboard Firmware: Stored in flash memory
• Connectors:
  • Two input/output connectors on the front faceplate
  • Right-angled backplane connector for data bus, address bus, control output signals, keypad interface, tool interface, and VCO inputs
• LED Indicators: Two embedded LEDs (green and red) for alarm annunciation

Installation and Handling

• Static-Sensitive: Requires grounding strap during handling
• Installation: Should only be installed in the proper rack position by qualified personnel
• Safety: Board should be handled when the rack is de-energized to prevent electric shock or damage
