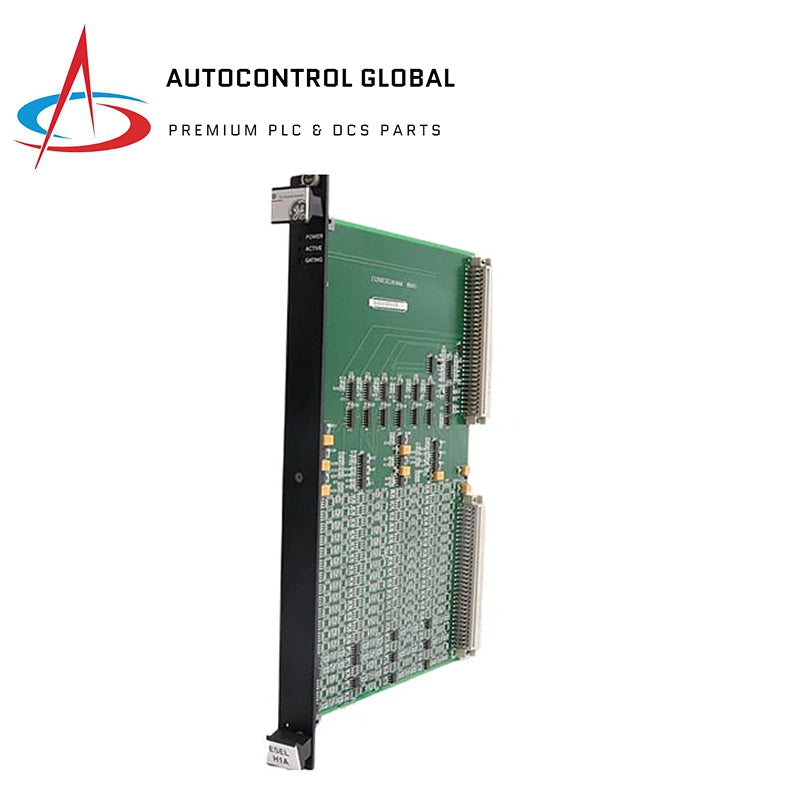

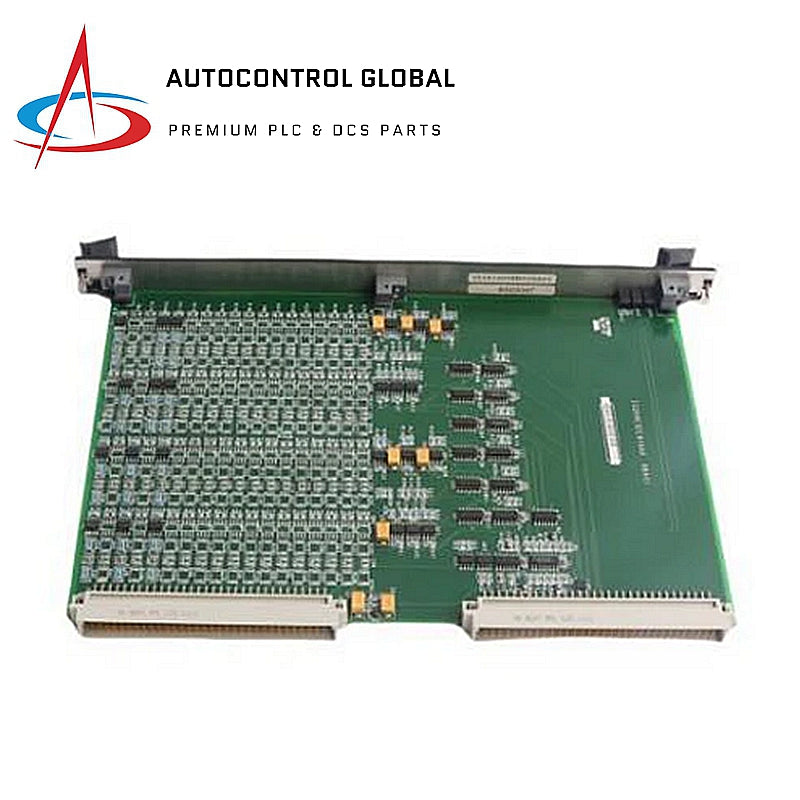

IS200ESELH2AAA | Printed Circuit Board | GE Fanuc

Manufacturer: GE Fanuc
Part Number: IS200ESELH2AAA
Condition：New with Original Package
Product Type: Printed Circuit Board
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

Overview

The IS200ESELH2AAA is a Printed Circuit Board (PCB) designed by General Electric for use in the EX2100 Series of excitation control systems.

Specifications

Part Number: IS200ESELH2AAA
Series: EX2100
Product Type: Exciter Selector Board
Board Type: Conformally coated with three bridge drivers

Features

Functionality: Receives six logic level gate pulse signals from the EMIO board, distributing them to exciter gate pulse amplifiers (EGPA).
System Compatibility: Requires two boards in redundant configurations (M1 and M2) and one in simplex configurations.
Control Signals: Transmits control signals to EGPA boards via its active ESEL selected by the controller.
Application: Part of the power conversion cabinet in EX2100 drive assemblies.

Design

Form Factor: Conformally coated PCB.
Bridge Drivers: Equipped with three bridge drivers for enhanced functionality.
Signal Distribution: Drives up to six cables for control signal transmission.
