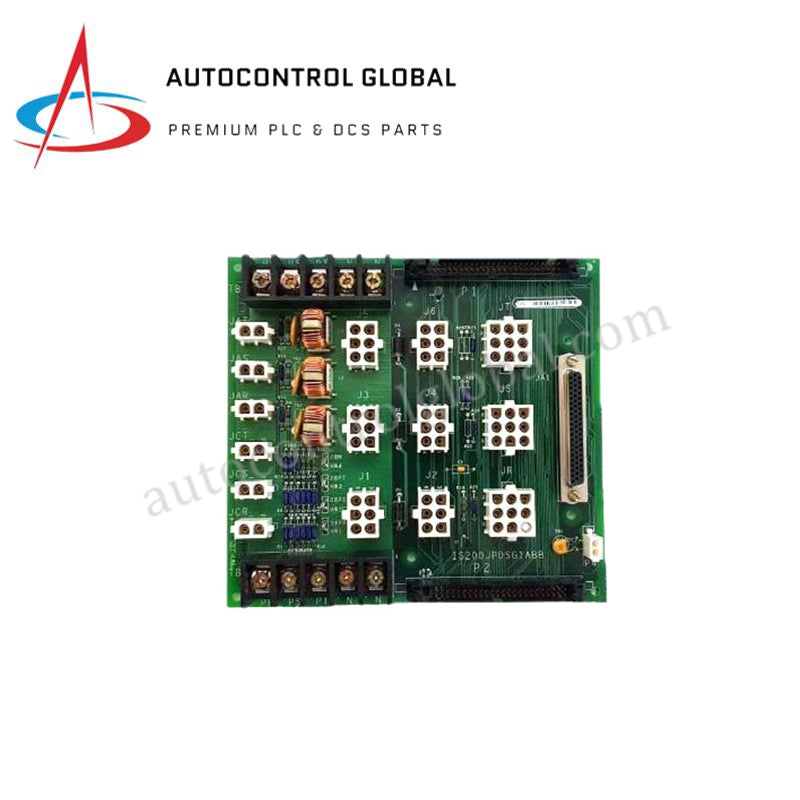

IS200JPDSG1ACB GE Mark VI Power Distribution Module NEW
Manufacturer: GE Fanuc
-
Part Number: IS200JPDSG1ACB
Condition：New with Original Package
Product Type: JPD Terminal Board
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The IS200JPDSG1ACB (functional acronym JPDS) is an authoritative Power Distribution Terminal Board manufactured by GE Fanuc for the Mark VI Speedtronic turbine control system. This module is a mechanical necessity for routing and conditioning critical power and signal paths between exciter control modules, protection circuits, and external field devices. It serves as a centralized hub for managing exciter feedback, trip commands, and various sensor inputs. Engineered for mission-critical reliability, the IS200JPDSG1ACB incorporates robust galvanic isolation and surge suppression to ensure that the turbine generator remains protected against electrical faults while maintaining precise synchronization.
Detailed Technical Specifications
| Attribute | Details |
| Manufacturer | GE Fanuc / General Electric |
| Model Number | IS200JPDSG1ACB |
| Series | Mark VI Speedtronic |
| Functional Acronym | JPDS |
| Product Type | JPD Power Distribution Terminal Board |
| Input Channels | Exciter feedback, protective trip commands, sensor inputs |
| Output Channels | Exciter circuit control, emergency trip outputs |
| Wiring Interface | High-density terminal blocks for field wiring |
| Isolation | Channel-to-system galvanic isolation |
| Power Supply | 24 VDC ±10% (provided via system backplane) |
| Operating Temp | -40 °C to +70 °C (Industrial Grade) |
| Dimensions | 266 × 197 mm (Standard Mark VI form factor) |
| Weight | 0.8–1.0 kg |
| PCB Coating | Normal protective conformal coating |
Engineering and Operational Guidelines
-
Power Distribution Expertise: The IS200JPDSG1ACB is optimized for high-reliability power distribution within the excitation cabinet. This expertise ensures that critical protection signals are prioritized and routed without interference, maintaining the integrity of the generator's emergency shutdown system.
-
Signal Condition and Safety: A trustworthy feature of the JPDS board is its integrated surge suppression. In large-scale power plants, field-side voltage spikes are common; this board prevents those transients from propagating into the sensitive VME control logic, significantly increasing system uptime.
-
Authoritative Diagnostics: The board includes built-in monitoring points that allow maintenance teams to perform live diagnostics on power rails and signal continuity. These hardware-level diagnostics facilitate rapid troubleshooting of complex field wiring issues without disrupting turbine operations.
-
Installation and Maintenance: Designed with a terminal block layout, the IS200JPDSG1ACB simplifies the field wiring process. Its robust VME-style mounting ensures a secure fit in standard Mark VI racks, resisting the vibration and thermal cycling typical of gas and steam turbine environments.
Technical FAQ
Q: What is the primary role of the JPDS board compared to standard terminal boards?
A: The IS200JPDSG1ACB specifically handles power distribution and protection signal routing (JPD/JPDS) for the excitation subsystem. Unlike general I/O terminal boards, it is tuned for the higher reliability standards required for generator field control and emergency tripping.
Q: Does the G1ACB revision level affect my existing setup?
A: The "G1ACB" suffix specifies the hardware group and functional revision level. It is a professional best practice to verify that the revision level matches your system's configuration to ensure identical pinouts and signal attenuation characteristics.
Q: Is this board compatible with both gas and steam turbine Mark VI systems?
A: Absolutely. The IS200JPDSG1ACB is a modular component used in any Mark VI Speedtronic system that requires a JPD-style interface for exciter and protection circuit management.
