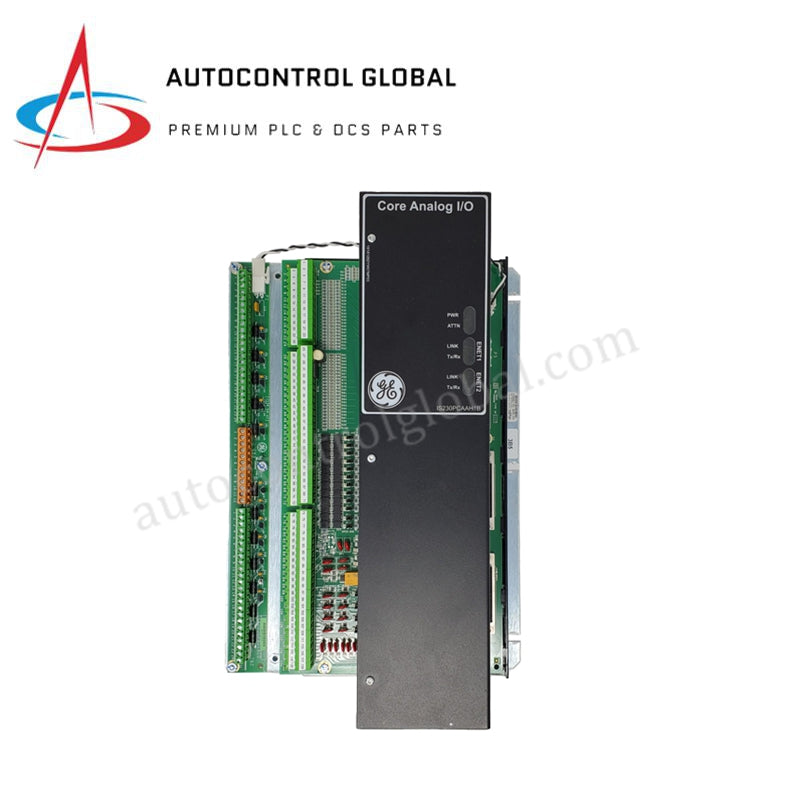

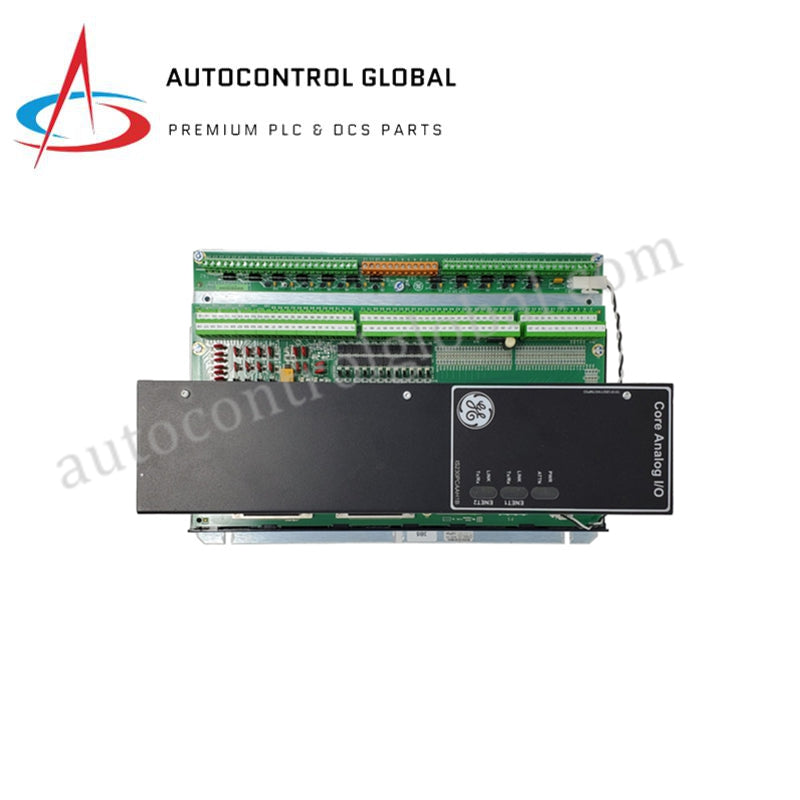

IS230PCAAH1B GE Mark VIe Packaged Control Module NEW
Manufacturer: GE Fanuc
-
Part Number: IS230PCAAH1B
Condition：New with Original Package
Product Type: Packaged Control Assembly Board
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The IS230PCAAH1B (functional acronym PCAA) is an authoritative Packaged Control Assembly Board manufactured by GE Fanuc for the Mark VIe Speedtronic turbine control system. This module is a mechanical necessity for high-density signal interfacing, acting as the primary junction between core control modules and external field devices. It is specifically engineered to handle complex analog inputs and outputs, ensuring precise signal routing and power distribution within the control rack. Designed for gas and steam turbine applications in mission-critical environments, the IS230PCAAH1B provides robust isolation and surge suppression to maintain system integrity during electrical transients.
Detailed Technical Specifications
| Attribute | Details |
| Manufacturer | GE Fanuc / General Electric |
| Model Number | IS230PCAAH1B |
| Series | Mark VIe Speedtronic |
| Functional Acronym | PCAA |
| Product Type | Packaged Control Assembly Board / Analog I/O |
| Input Support | High-density analog signals, sensor feedback |
| Output Support | Processed control signals, protective trip outputs |
| Operating Voltage | 24 VDC ±10% (via system backplane) |
| Interface | Multiple dedicated terminal blocks for field wiring |
| Protection | Galvanic isolation and hardware surge suppression |
| Diagnostics | Real-time monitoring and fault detection logic |
| Operating Temp | -40 °C to +70 °C (Industrial grade) |
| Weight | 4.20 lbs (Full assembly weight) |
| Dimensions | 266 × 197 mm (Standard Mark VIe form factor) |
Engineering and Operational Guidelines
-
Signal Processing Expertise: The IS230PCAAH1B is optimized for low-latency signal conditioning. This expertise allows the Mark VIe system to process analog variables from the field with high fidelity, which is essential for the stable governing of turbine speed and load.
-
Redundant Power Distribution: A trustworthy feature of the PCAA board is its integrated power distribution logic. It ensures that internal sensors and auxiliary devices connected to the terminal blocks receive a stabilized 24VDC supply, even in environments with significant electrical noise.
-
Authoritative Protection Logic: The board features high-speed isolation barriers that protect the main controller packs from field-side faults. This design ensures that a localized short circuit at the terminal block does not propagate into the core logic of the Mark VIe system.
-
Ease of Maintenance: The terminal block architecture of the IS230PCAAH1B allows for rapid diagnostic probing. Maintenance teams can verify signal continuity directly at the board, simplifying the troubleshooting process during plant outages or routine inspections.
Technical FAQ
Q: Is the IS230PCAAH1B compatible with older Mark VI VME-based systems?
A: No. The IS230PCAAH1B is part of the Mark VIe architecture, which utilizes a different communication and mounting protocol compared to the legacy Mark VI VME systems.
Q: What is the primary function of the PCAA board compared to other I/O boards?
A: The PCAA is a specialized "Packaged" assembly board. It typically handles a high density of analog signals, whereas boards like the PDIA or TDEA are focused on discrete signals or specific protective relay functions.
Q: Can this board be used for emergency trip circuits?
A: Yes. The IS230PCAAH1B includes dedicated channels for protective trip outputs, allowing it to interface directly with turbine protection logic for rapid system shutdown if critical parameters are exceeded.
