Product Description

Overview

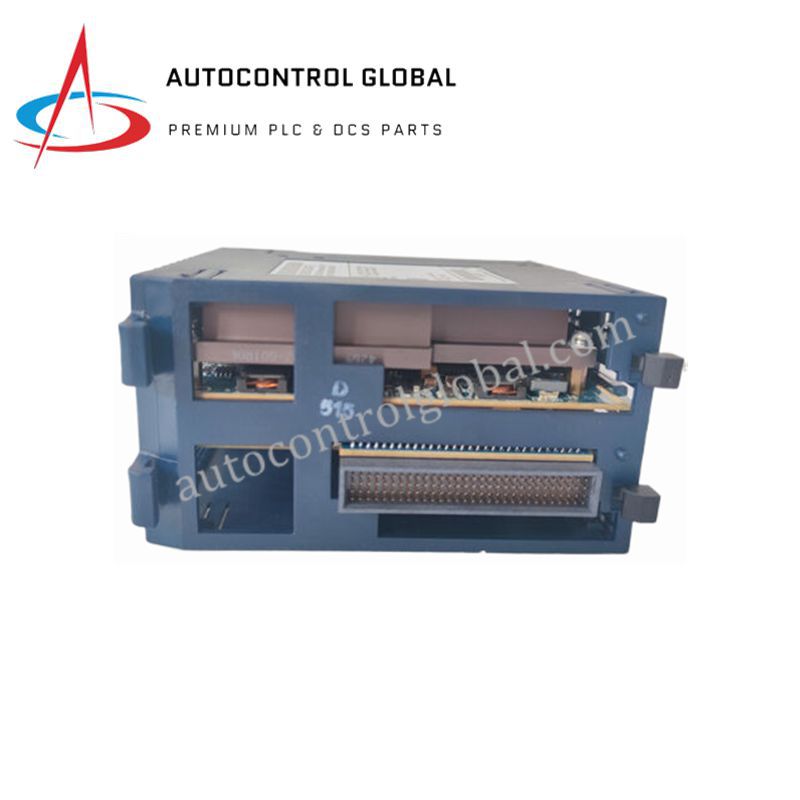

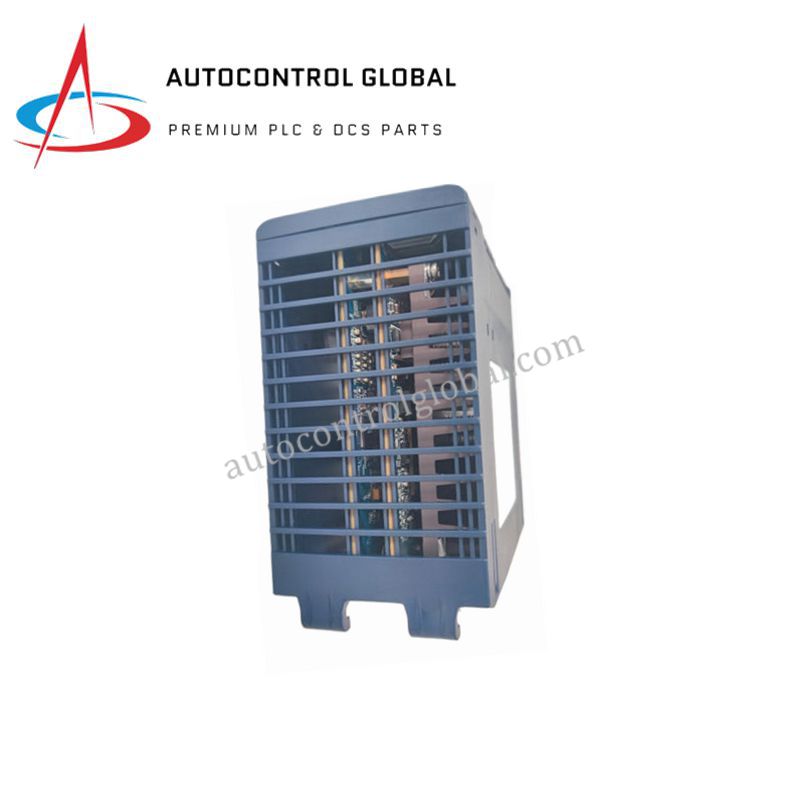

The GE FANUC IC695ALG106‑DA is a high-precision isolated analog input module designed for PACSystems RX3i. It delivers accurate acquisition of voltage and current signals, making it ideal for industrial automation, process control, and SCADA/DCS applications. Moreover, its robust design ensures reliable operation even in demanding industrial environments.

Technical Specifications

Channels: 6 isolated analog input channels

Input Signal Types:
• Current: 0–20 mA, 4–20 mA, ±20 mA
• Voltage: ±10 V, 0–10 V, ±5 V, 0–5 V, 1–5 V

Resolution: 16-bit A/D conversion

Isolation: Channel-to-channel isolation to prevent interference

Update Rate: High-speed patented throughput technology

Diagnostics: Built-in fault detection with LED channel indicators

Terminal Blocks (ordered separately):
• Box-style: IC694TBB032
• Extended Box-style: IC694TBB132
• Spring-style: IC694TBS032
• Extended Spring-style: IC694TBS132

Power Requirements: Supplied via RX3i rack backplane

Mounting: DIN-rail or standard rack installation

Physical Specifications:
• Weight: 700 g
• Dimensions: Standard RX3i form factor

Environmental Ratings:
• Operating temperature: 0 °C to +60 °C
• Storage temperature: –40 °C to +85 °C
• Humidity: 5–95% non-condensing

FAQ

Q1: How many channels does the IC695ALG106‑DA support?
A: The module supports six isolated analog input channels for versatile applications.

Q2: Which signal types are compatible with this module?
A: It supports current (0–20 mA, 4–20 mA, ±20 mA) and voltage (±10 V, 0–10 V, ±5 V, 0–5 V, 1–5 V) signals.

Q3: Does it provide channel-to-channel isolation?
A: Yes, all six channels are isolated to prevent crosstalk and maintain signal integrity.

Q4: How are diagnostics handled?
A: Built-in fault detection and LED indicators provide real-time monitoring for each channel.

Q5: Can this module be installed in a rack or on DIN rails?
A: Yes, it supports both standard RX3i rack and DIN-rail installations.
