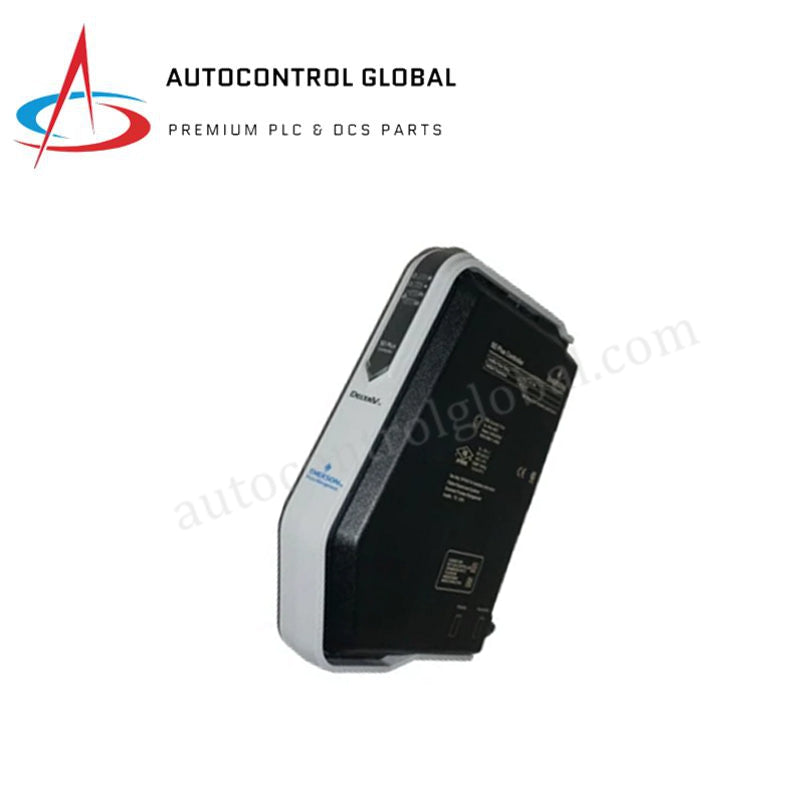

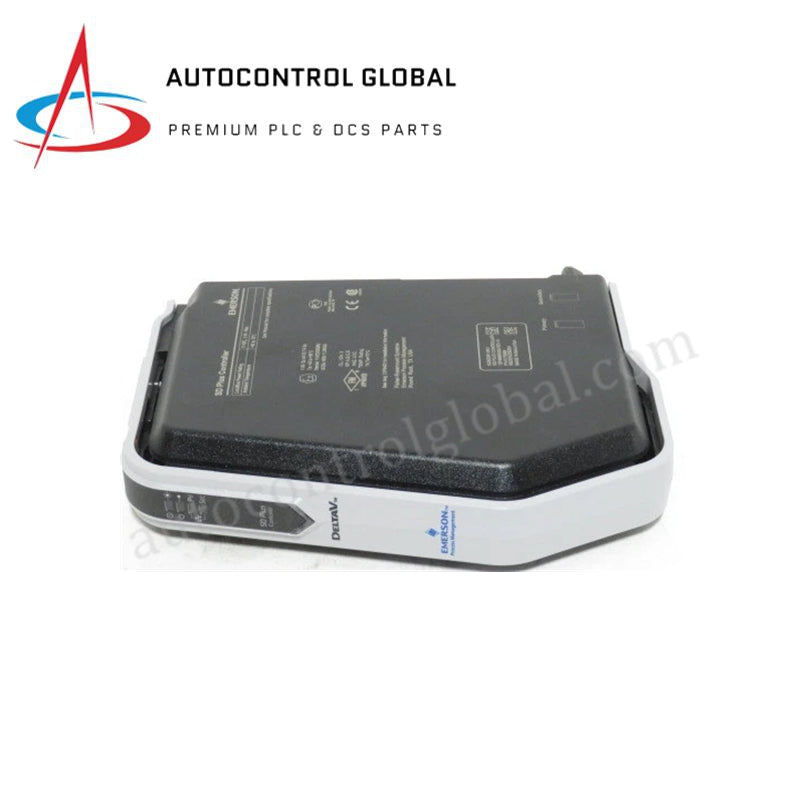

Emerson KJ2003X1-PW1 DeltaV SIS Series Redundant SLS Terminal Block

The Emerson KJ2003X1-PW1, also cataloged as the KJ2003X1-PW1 Redundant SLS Terminal Block, operates as a dedicated hardware component for field wiring termination and redundant signal routing within DeltaV SIS safety networks.

Hardware Specifications

4-20 mA HART Loop Protocol and Channel-to-Channel Isolation

The redundant terminal block interfaces directly with the Smart Logic Solver (SLS) backplane to sustain dual-channel analog signal pass-through and digital I/O processing. The mechanical tracking path preserves galvanic isolation barriers between parallel hardware channels, ensuring that high-frequency noise from a single 4-20 mA HART loop does not cause inductive interference on adjacent safety circuits. This isolation framework supports continuous monitoring of diagnostic data across field loops while routing critical signals to the redundant logic processing matrix without common-mode electrical hazards.

Frequently Asked Questions

Q: How does the passive architecture of the KJ2003X1-PW1 handle hot-swap physical replacement?

A: The terminal block supports online, live exchange capabilities where individual blocks are detached from the active SLS carrier board. Because the field terminals remain seated or unplugged via integrated modules, safety loops switch directly to the backup path without cutting power to the parallel infrastructure.

Q: What are the integrated monitoring limits for diagnostic checks on this model?

A: The terminal block acts as a passive termination interface. Line diagnostics, including open loop and short-circuit fault monitoring, are executed and registered directly by the active Smart Logic Solver modules attached to the backplane rather than the terminal block hardware itself.

Field Installation Guidelines

• Secure the redundant SLS terminal block onto the specific carrier backplane slot, confirming that the card-edge contacts mate completely before applying electrical load.
• Terminate all field cables using the integrated screw or spring clamp terminals, maintaining uniform tension on all input wire configurations.
• Route all critical emergency shutdown (ESD) and fire & gas analog lines through low-voltage cable trays separated from high-induction motor power wires.
• Land the instrumentation braided shielding wires directly onto the primary cabinet instrument earth ground bus rail to ensure optimal signal protection limits.
• Maintain the surrounding control panel environment below the 70 deg C ceiling to keep operating thermal gradients within calibrated manufacturer parameters.
