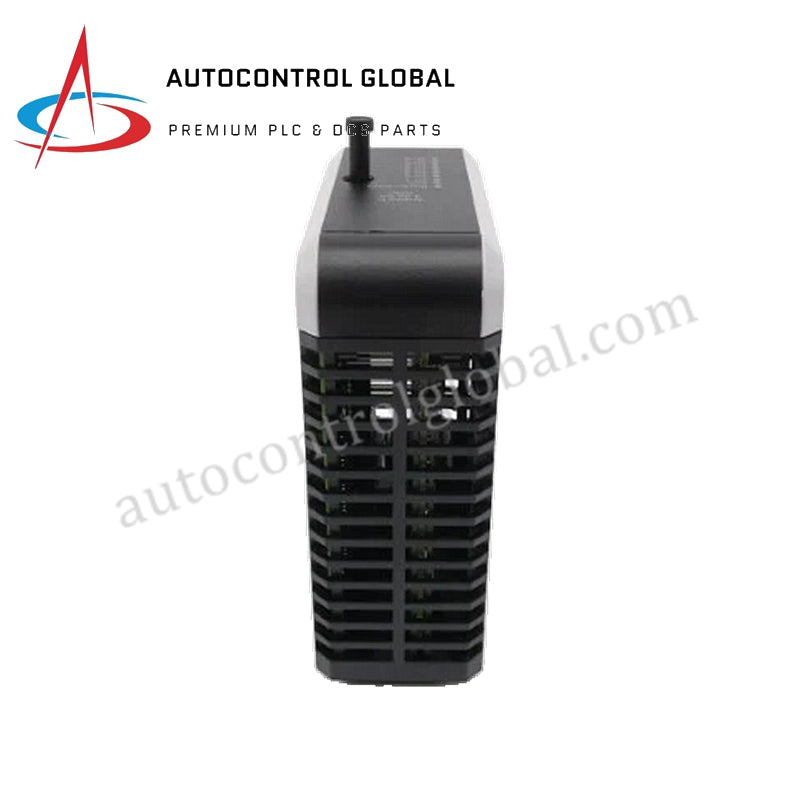

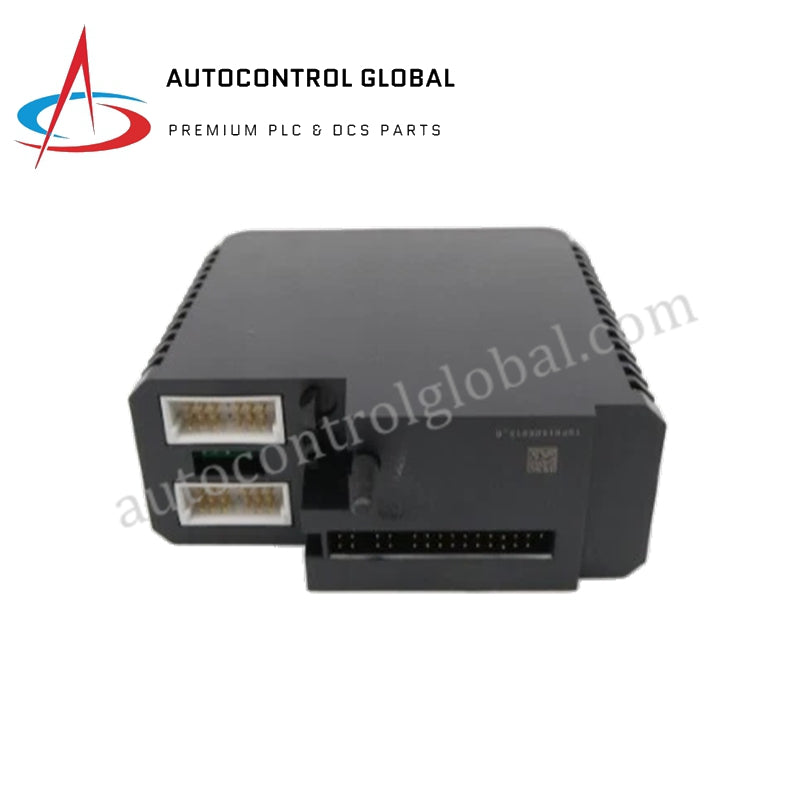

KJ3222X1-BA2 Emerson AI 8 CH 4-20mA HART Card Series 2
Manufacturer: Emerson
-
Part Number: KJ3222X1-BA2
Condition：New with Original Package
Product Type: Analog Input
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
The Emerson KJ3222X1-BA2 is an AI 8-Channel 4–20 mA HART Card (Series 2) designed for reliable analog input signal processing with integrated HART communication support.
Power Specifications
-
Local bus power: 12 VDC at 150 mA
-
Bussed field power: 24 VDC at 300 mA
-
Field circuit: 24 VDC at 30 mA per channel
Environmental Conditions
-
Operating temperature: -40 °C to +70 °C
-
Shock resistance: 10 g, half-sine wave for 11 ms
-
Vibration: 1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz)
-
Airborne contaminants: ISA-S71.04–1985, Class G3
-
Relative humidity: 5% to 95%, non-condensing
Additional Information
-
Channels: 8 analog input channels (4–20 mA with HART)
-
Terminal block key position: A1
