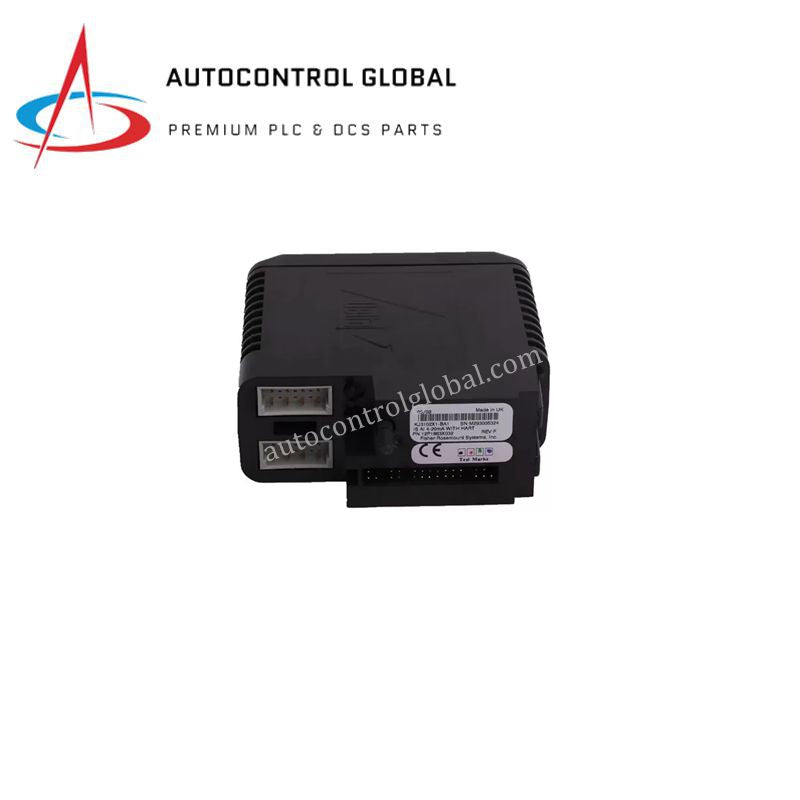

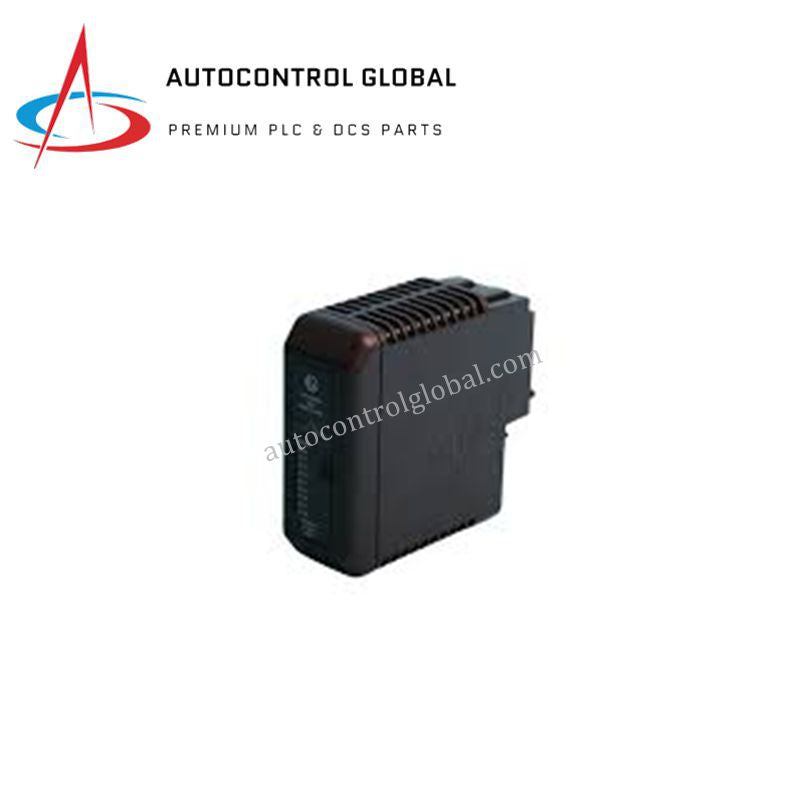

KJ3243X1-BA1 | Emerson DeltaV Series 2 Profibus DP Card New
Manufacturer: Epro
-
Part Number: VE4014 KJ3243X1-BA1 12P2830X022
Condition：New with Original Package
Product Type: Profibus DP Interface Card
-
Country of Origin: Germany
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Emerson DeltaV VE4014 KJ3243X1-BA1 Profibus DP Series 2 Interface Card
The VE4014 KJ3243X1-BA1 (Part Number: 12P2830X022) is a Series 2 Profibus DP communication interface module designed for the Emerson DeltaV™ Distributed Control System (DCS). While general catalog descriptions sometimes mislabel this as a standard Analog Input module, the KJ3243X1-BA1 is specifically engineered as a high-speed communication gateway. It allows DeltaV controllers to interface directly with Profibus DP compliant field devices, such as motor starters, variable speed drives, and remote I/O racks.
By providing a digital bridge between the control network and fieldbus devices, the VE4014 KJ3243X1-BA1 (Model: KJ3243X1-BA1) eliminates the need for complex hardwiring of individual analog signals. This module supports cyclic data exchange for real-time control and acyclic communication for device configuration and asset management via AMS Device Manager.
Detailed Technical Specifications
The VE4014 KJ3243X1-BA1 (Part Number: 12P2830X022) provides robust performance for high-density industrial communication.
| Feature | Details |
| Manufacturer | Emerson Automation Solutions |
| Model Number | KJ3243X1-BA1 |
| Part Number | 12P2830X022 |
| System Reference | VE4014 |
| Series | DeltaV™ Series 2 Hardware |
| Product Type | Profibus DP Interface Card |
| Communication Protocol | Profibus DP (Decentralized Periphery) |
| Data Transfer Rate | Supports 9.6 Kbps up to 12 Mbps (Auto-detection) |
| Device Capacity | Up to 64 Slave devices per card |
| Isolation | 1500 VDC galvanic isolation (Field-to-System) |
| Diagnostics | Real-time monitoring of bus health and slave device status |
| Power Supply | 24 VDC nominal (via LocalBus backplane) |
| Operating Temp | 0°C to +60°C |
| Vibration/Shock | Meets ISA-S71.04 Class G3 harsh environment standards |
