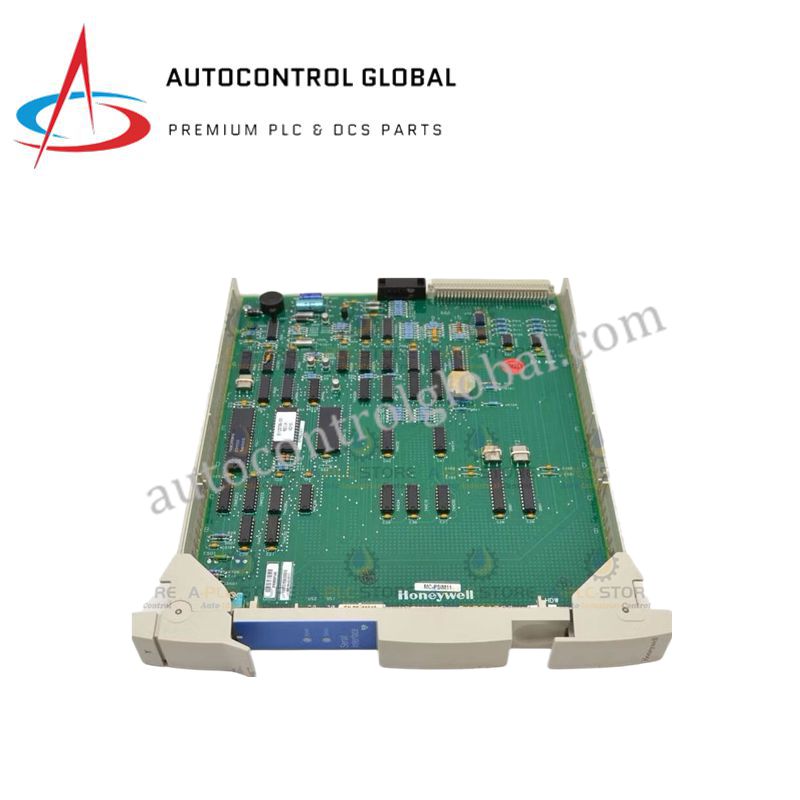

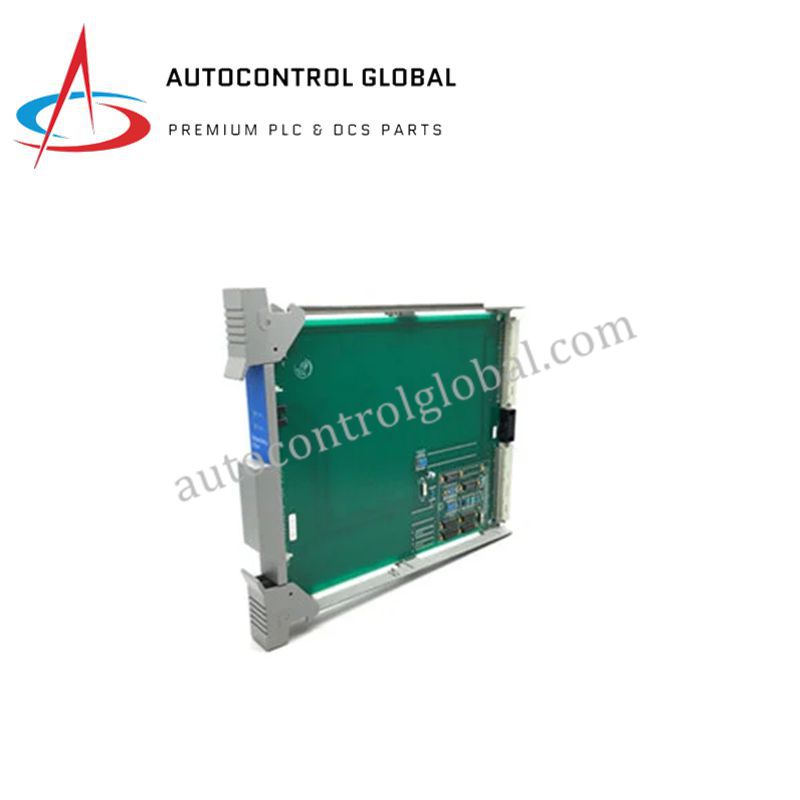

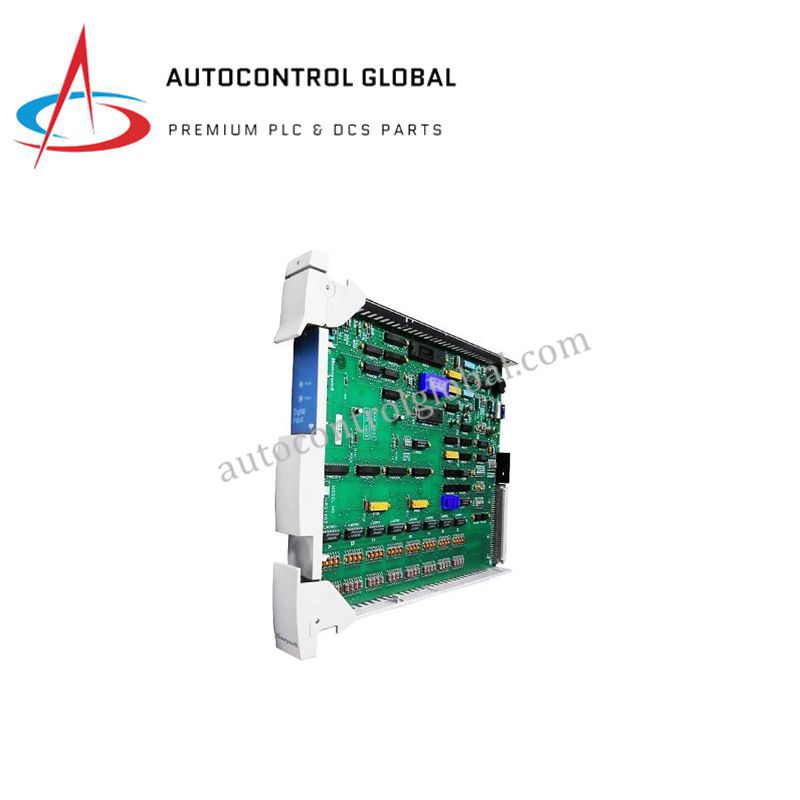

MC-PDOX02 by Honeywell | 51304487-150 Digital Output 16-Channel 24 VDC
Manufacturer: Honeywell
-
Part Number: MC-PDOX02 51304487-150
Condition：New with Original Package
Product Type: Digital Output 16-Channel 24 VDC
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Honeywell MC-PDOX02 (Part No. 51304487-150) is a 16-channel Digital Output Module designed for Honeywell Distributed Control Systems (DCS), including Experion PKS. It delivers reliable 24 VDC discrete outputs for operating solenoids, relays, and contactors in real-time industrial automation.
Engineered for demanding conditions, the MC-PDOX02 features channel-to-channel and channel-to-ground isolation, built-in diagnostics, and LED indicators for each channel. Its rugged construction with conformally coated assemblies protects against humidity, corrosive gases, and electrical noise, ensuring stable performance in harsh industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Honeywell |
| Model Number | MC-PDOX02 |
| Part Number | 51304487-150 |
| Product Type | Digital Output Processor Module |
| Output Channels | 16 isolated digital outputs |
| Output Voltage | Typically 24 VDC |
| Output Type | Discrete ON/OFF sourcing outputs for field devices |
| Diagnostics | Built-in fault detection with individual LED status indicators |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Mounting | DIN-rail or chassis-mounted in Honeywell control cabinets |
| Operating Temperature | 0 °C to +60 °C |
| Humidity | 5 %–95 % RH, non-condensing |
| Environmental Protection | Conformally coated for resistance to vibration, dust, and corrosive gases |
| Compliance | CE-marked; meets Honeywell industrial EMC and safety standards |
| Shipping Weight | 2 kg |
FAQ
Q1: How many field devices can the MC-PDOX02 control?
A1: The MC-PDOX02 supports 16 isolated digital outputs, allowing it to drive multiple solenoids, relays, or contactors simultaneously.
Q2: What is the standard output voltage for the MC-PDOX02?
A2: The module delivers 24 VDC discrete ON/OFF outputs, suitable for most industrial field devices.
Q3: Does the MC-PDOX02 include diagnostics for fault detection?
A3: Yes, it includes built-in fault detection and LED indicators for quick status checks on each channel.
Q4: Can this module withstand harsh industrial environments?
A4: Absolutely. The MC-PDOX02 uses conformally coated assemblies that protect it against humidity, corrosive gases, vibration, and dust.
Q5: What is your delivery and return policy for this product?
A5: We stock brand-new original Honeywell MC-PDOX02 (51304487-150) modules. Orders typically ship within 3 days to 2 weeks, depending on order size, via carriers such as DHL. We offer a 30-day return policy for verified quality issues.
