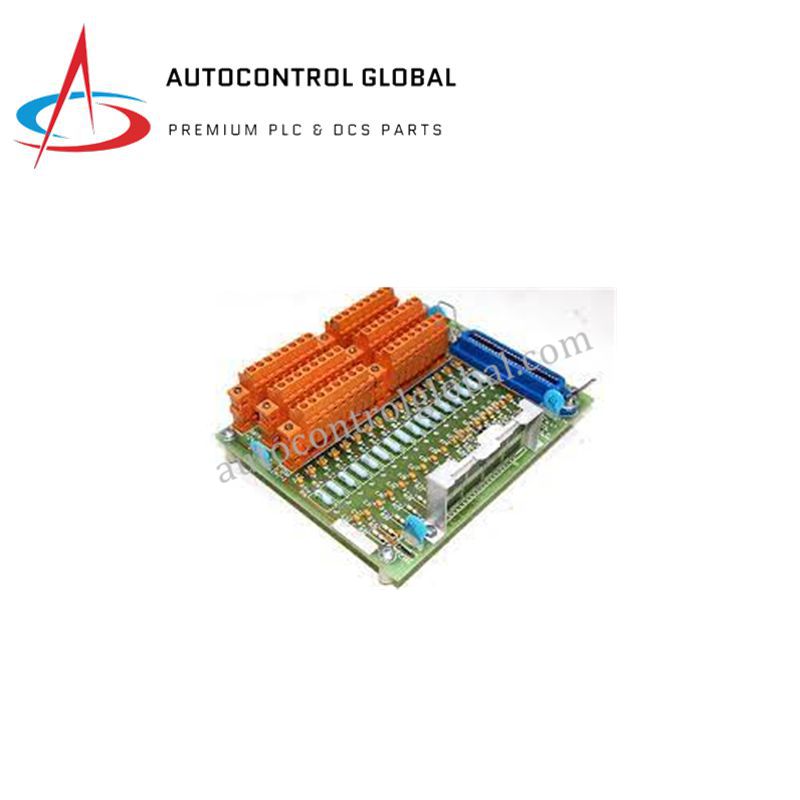

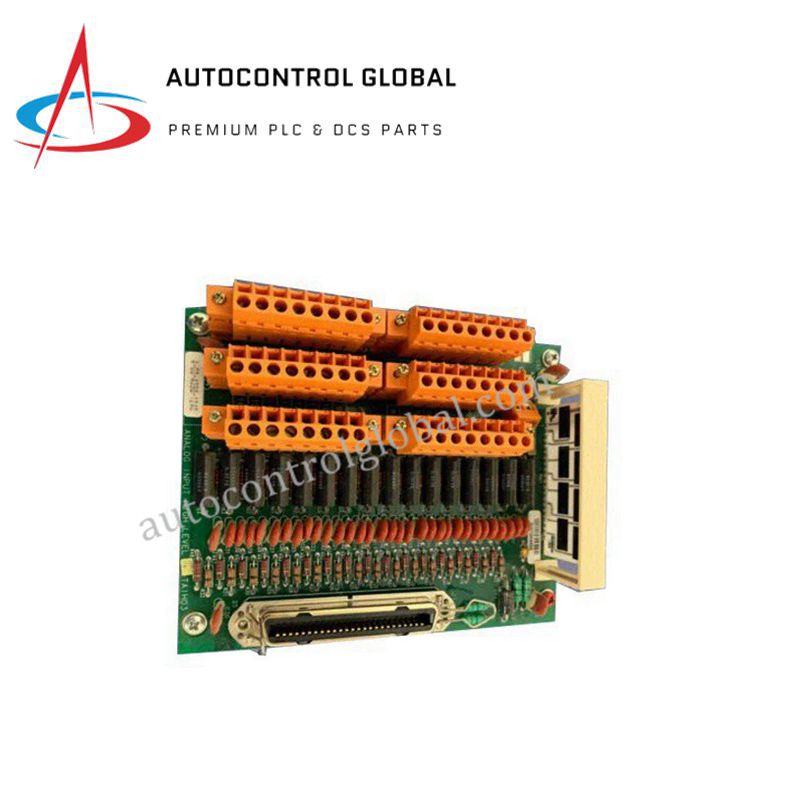

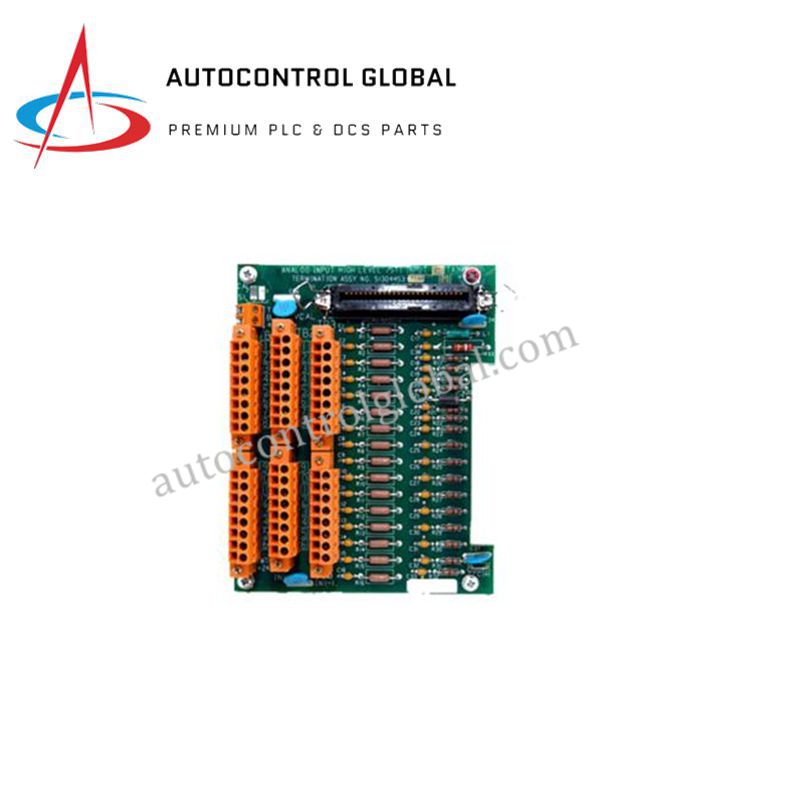

MC-TAIH03 | Honeywell Analog Input FTA Module with Diagnostics
Manufacturer: Honeywell
-
Part Number: MC-TAIH03 51309136-175
Condition：New with Original Package
Product Type: Analog Input FTA Module with Diagnostics
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Honeywell MC-TAIH03 is a high-density Analog Input Module from Honeywell’s Series C I/O family. It enables accurate acquisition of analog signals from field instruments including pressure, temperature, and flow transmitters. Featuring galvanic isolation, advanced diagnostics, and redundant configuration support, it ensures reliable operation in mission-critical automation and safety systems. Its compact design fits easily into DIN rail or panel-mounted Series C chassis.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | MC-TAIH03 |
| Part Number | 51309136-175 |
| Type | Analog Input Module (Series C) |
| Channels | 16 analog inputs |
| Input Signal Types | 4–20 mA current loop, 1–5 VDC (with external shunt resistor) |
| Resolution | 16-bit A/D conversion |
| Accuracy | ±0.1% of span |
| Isolation | Galvanic isolation between channels and system bus |
| Diagnostics | Open circuit detection, input overrange/underrange, channel health monitoring |
| Redundancy Support | Yes, compatible with redundant I/O configurations |
| Power Consumption | Low-power design |
| Operating Temperature | −40°C to +70°C |
| Mounting | DIN rail or panel-mounted within Series C chassis |
| Compliance | CE marked, RoHS compliant, meets Honeywell EMC and safety standards |
| Warranty | Standard 12-month warranty |
| Weight | 450 g |
FAQ
Q1: What is the main function of the MC-TAIH03?
A1: The MC-TAIH03 reliably acquires analog signals from transmitters such as pressure, temperature, or flow sensors.
Q2: How many analog channels are available?
A2: It provides 16 analog input channels for high-density monitoring.
Q3: Which input signals does the module support?
A3: It supports 4–20 mA current loops and 1–5 VDC signals with an external shunt resistor.
Q4: Does the module offer electrical isolation?
A4: Yes, it provides galvanic isolation between channels and the system bus.
Q5: Can the module be used in redundant configurations?
A5: Yes, it supports redundancy when paired with compatible Series C I/O modules.
