MO325-9.0 ABB 9 A Magnetic Only Manual Motor Starter
Manufacturer: ABB
-
Part Number: MO325-9.0 1SAM160000R1010
Condition：New with Original Package
Product Type: Manual Motor Starters
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

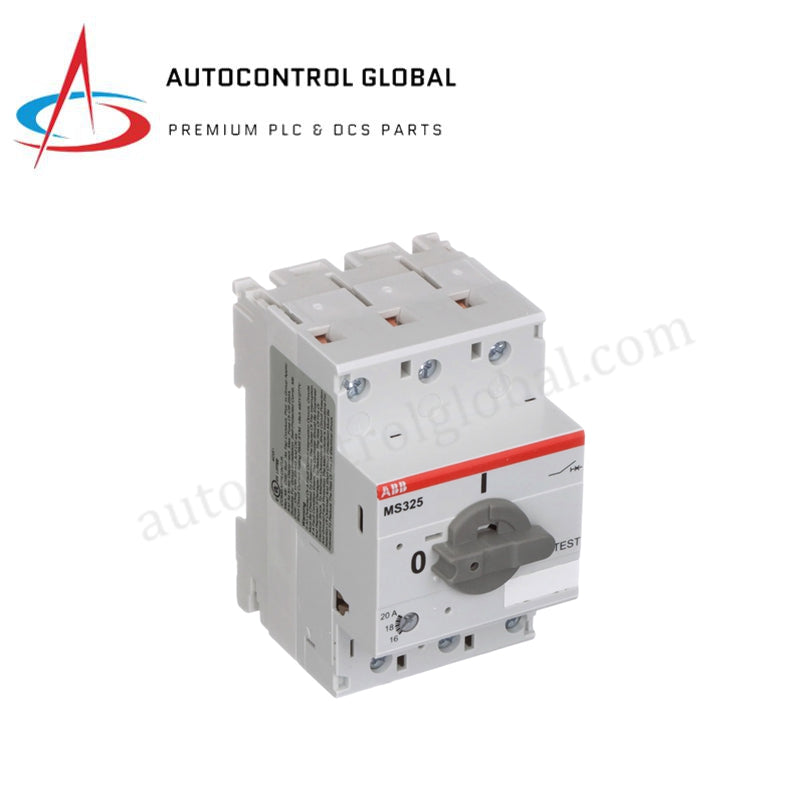

ABB MO325-9.0 Manual Motor Starter
The ABB MO325-9.0 (1SAM160000R1010) is a 3-pole manual motor starter designed for magnetic-only short-circuit protection and manual switching of motor loads up to 9 A. Equipped with an instantaneous short-circuit setting of 135 A and an integrated rotary operating handle, it delivers fuseless protection and clear disconnect status within a compact 54 mm housing.
Short-Circuit Protection and Switching Performance
Featuring an electromagnetic tripping mechanism, the starter provides quick fault interruption with a rated service short-circuit breaking capacity (Ics) of 100 kA at 400 V AC. The trip-free mechanism ensures circuit interruption during fault conditions even if the handle is held in the ON position.
System Configuration and Protection Requirements
The device integrates a disconnect function and supports operational voltages up to 690 V AC across 50/60 Hz single-phase and three-phase systems. Because the unit provides magnetic protection only, full motor protection requires pairing with an external thermal or electronic overload relay.
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | MO325-9.0 |
| Extended Product Type | MO325-9 |
| Product ID | 1SAM160000R1010 |
| EAN | 4013614302060 |
| Product Type | Manual Motor Starter |
| Protection Type | Magnetic Short-Circuit Protection |
| Rated Operational Current (Ie) | 9 A |
| Rated Operational Voltage (Ue) | Up to 690 V AC |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Number of Poles | 3 |
| Rated Frequency | 50/60 Hz |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA at 400 V AC |
| Instantaneous Short-Circuit Setting | 135 A |
| Operating Mechanism | Rotary Handle |
| Switching Function | Manual ON/OFF |
| Overload Protection | Not integrated |
| Disconnect Function | Integrated |
| Trip Mechanism | Trip-free mechanism |
| Mounting | 35 mm DIN Rail |
| Product Width | 54 mm |
| Product Height | 87.5 mm |
| Product Depth | 75.5 mm |
| Net Weight | 0.34 kg |
Frequently Asked Questions
Q: Does the MO325-9.0 provide thermal overload protection? A: No, the MO325-9.0 provides magnetic short-circuit protection only. Complete motor overload protection requires an additional thermal or electronic overload relay.
Q: What mounting option does this manual motor starter use? A: The starter is designed to mount on a standard 35 mm DIN rail.
