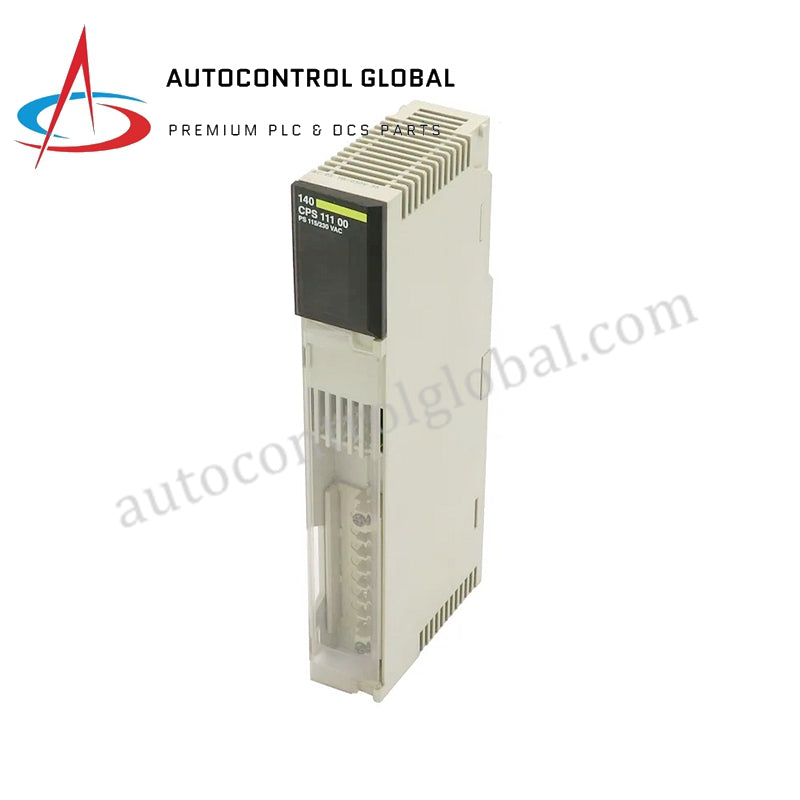

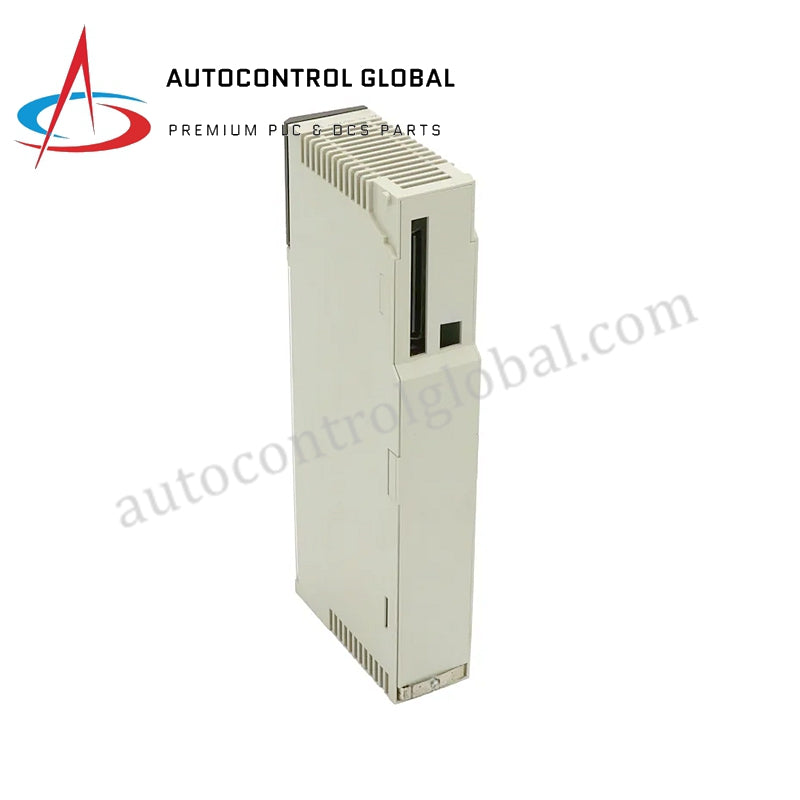

Modicon 140CPS11100 Schneider Power Supply Module

Description

The 140CPS11100 is a Modicon Quantum standalone power supply module operating at 120–230 V AC, providing 5.1 V DC output with internal protections.

Electrical Input

• Input Voltage: 120–230 V AC (100–276 V), 47–63 Hz

• Input Current: 400 mA at 115 V, 200 mA at 230 V

• Inrush Current: 20 A at 115 V, 10 A at 230 V

• Rated Power: 50 VA

• Fuse Rating: 1.5 A slow-blow

• Harmonic Distortion: ≤ 10% of fundamental RMS

Output Specifications

• Output Voltage: 5.1 V DC

• Output Current: 3 A standalone

• Overvoltage Protection: Internal

• Overload Protection: Internal

• Power Dissipation: 2 + (3 × Iout) W

Features

• Local Signaling: 1 green LED (PWR OK)

• Marking: CE

Physical

• Module Format: Standard

• Weight: 0.65 kg (1.43 lb)
