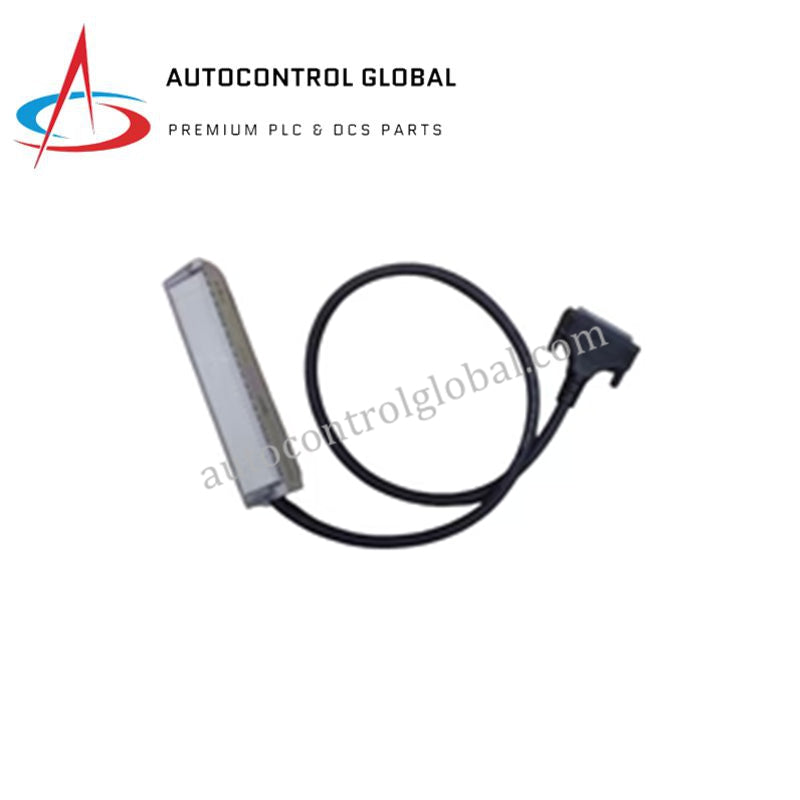

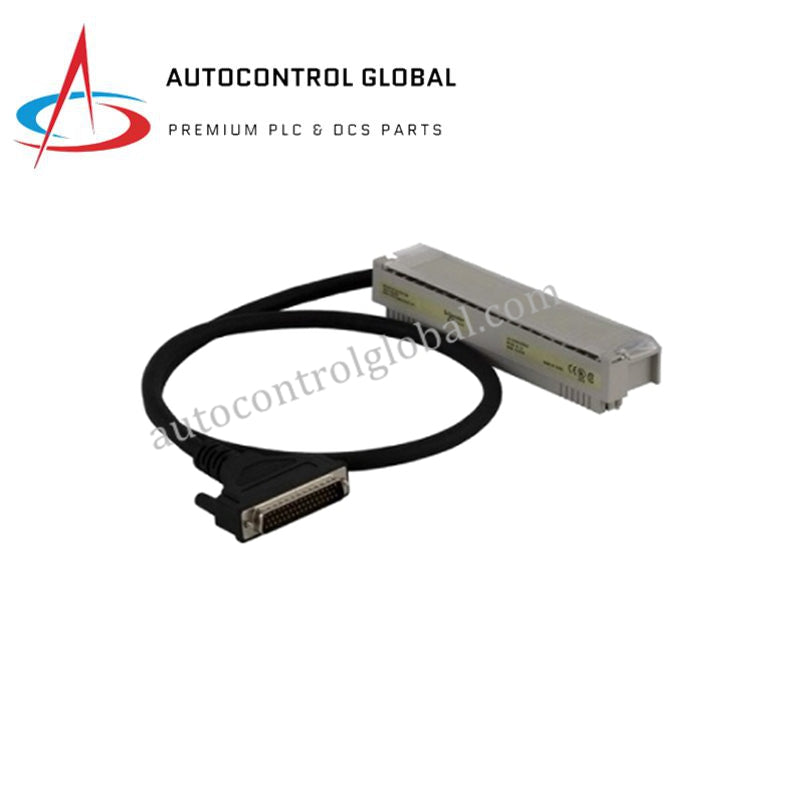

Modicon Quantum 140XTS00206 CableFast I/O Connection Cable

Product Description

Product Overview

The 140XTS00206 is a CableFast system I/O connection cable designed for the Modicon Quantum automation platform by Schneider Electric. It is a factory-terminated cable assembly used to connect Quantum I/O modules to external wiring interfaces through a 50-pin SUB-D connector.

This CableFast accessory simplifies cabinet wiring, reduces installation errors, and ensures consistent signal integrity in large-scale industrial control systems. The 140XTS00206 is commonly used in legacy Quantum PLC installations across process, manufacturing, and material handling environments.

Functional Description

The 140XTS00206 CableFast cable features a Quantum I/O connector on one end and a 50-pin SUB-D connector on the other. With a cable length of 1.8 meters, it provides compact and organized wiring inside control cabinets while maintaining proper grounding and shielding.

As a pre-assembled and tested Schneider Electric cable, it enables fast installation and reliable long-term operation in electrically noisy industrial environments.

Technical Specifications

• Model: 140XTS00206

• Manufacturer: Schneider Electric

• Product range: Modicon Quantum automation platform

• Product type: CableFast system cable

• Accessory category: Connection accessories

• Destination: Quantum I/O modules

• Cable type: Terminated

• Cable length: 1.8 m (5.9 ft)

• Electrical connections:

• 1 × Quantum I/O connector

• 1 × SUB-D connector, 50 pins

• Power type: Standard

• Cable color: Black

• Mounting orientation: Cabinet installation

• Net weight: 0.57 kg (1.26 lb)

• Certifications: CE

• Lifecycle status: Discontinued by manufacturer
