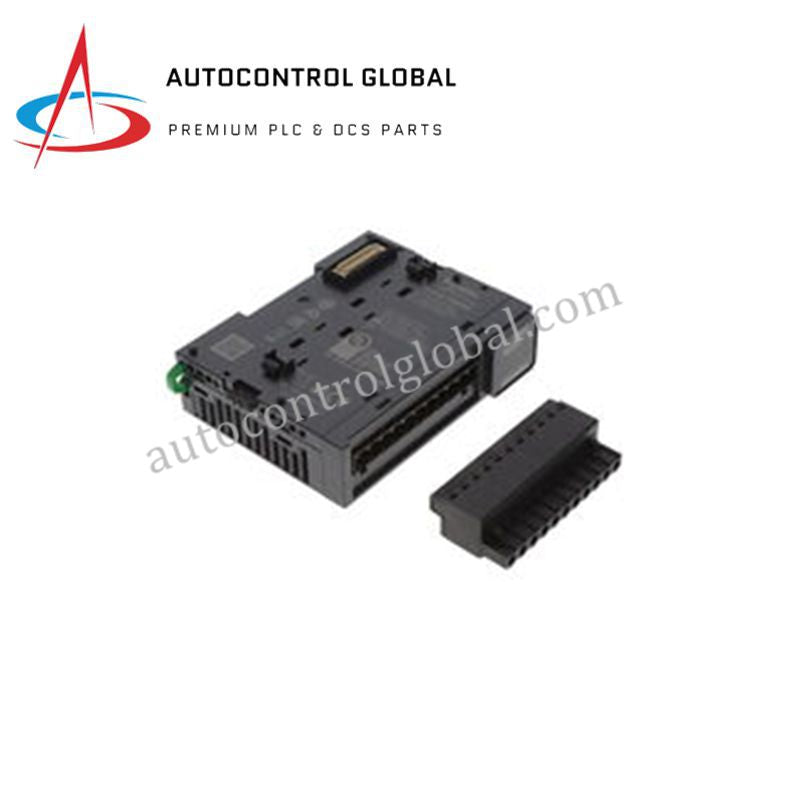

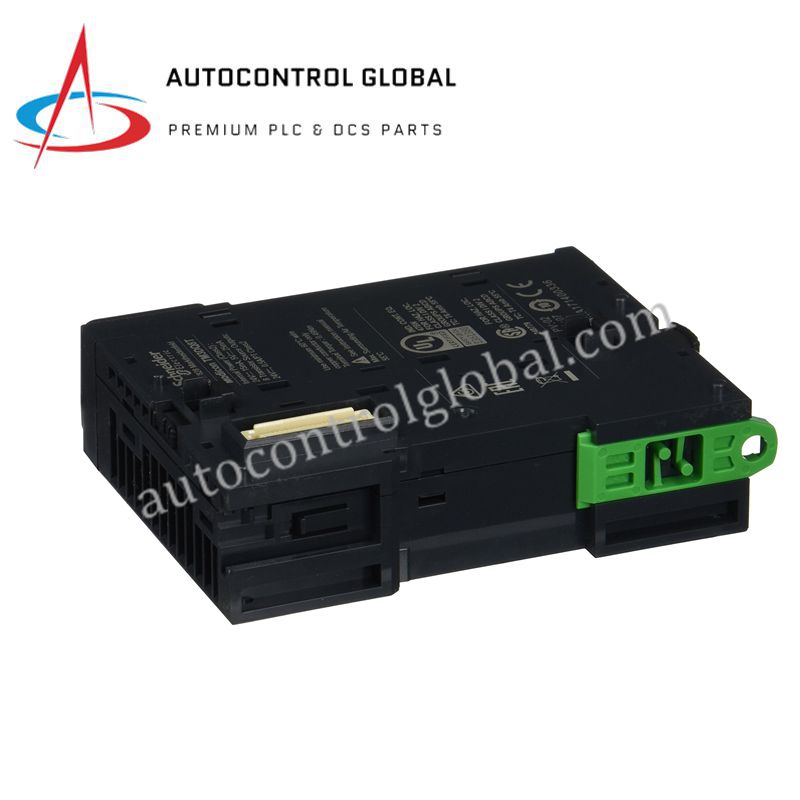

Modicon TM3 TM3DQ8T | Industrial 8DO PLC Expansion Module
Manufacturer: Schneider
-
Part Number: TM3DQ8T
Condition：New with Original Package
Product Type: Industrial 8DO PLC Expansion Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Schneider TM3DQ8T is an 8-channel discrete output expansion module from the Modicon TM3 series, designed to extend the digital output capacity of Modicon M221, M241, M251, and M262 logic controllers. It features 24 VDC transistor outputs with source (PNP) logic, enabling direct control of actuators such as relays, lamps, solenoids, and other devices in automation systems.
Its compact design, fast switching frequency, and DIN-rail mounting make it ideal for machine-level automation. Moreover, built-in short-circuit and overload protection ensures reliable operation, making it a cost-effective solution for industrial control systems.
Technical Specifications
| Feature | Specification |
|---|---|
| Product type | Discrete output expansion module |
| Series | Modicon TM3 expansion modules |
| Number of outputs | 8 transistor outputs |
| Output type | 24 VDC source (PNP transistor) |
| Output voltage range | 19–30 VDC |
| Nominal output voltage | 24 VDC |
| Max output current per channel | 0.5 A |
| Max current per common | 4 A |
| Max switching frequency | 1 kHz (resistive load) |
| Isolation | 500 V AC between output groups and logic |
| Protection | Short-circuit and overload protection |
| Connector type | Removable screw terminal blocks, 5.08 mm pitch |
| Power supply | 24 VDC via controller backplane bus |
| Typical consumption | 1.5 W |
| Compatibility | Modicon M221, M241, M251, M262 controllers |
| Mounting | DIN rail TH35‑7.5 / TH35‑15; optional panel kit |
| Dimensions | 90 mm × 27.4 mm × 84.6 mm |
| Net weight | 0.11kg |
| Operating temperature | 0 to 55 °C |
| Storage temperature | -40 to 70 °C |
| Relative humidity | 95% at 60 °C (non-condensing) |
| Protection rating | IP20 housing for cabinet installation |
| Certifications | CE, UL, CSA |
| Standards | EN/IEC 61131-2, EN/IEC 61010-2-201 |
FAQ
How many digital outputs does TM3DQ8T provide?
It provides 8 transistor outputs with 24 VDC source logic.
Which controllers are compatible with this module?
Compatible with Modicon M221, M241, M251, and M262 logic controllers.
What protection features are included?
Short-circuit and overload protection are built in for safe and reliable operation.
How is the module mounted?
It mounts on standard DIN rails or optionally on panels with a fixing kit.
What is the maximum switching frequency?
The module supports up to 1 kHz for real-time actuator control.
