MVI56-PDPMV1 ProSoft Technology PROFIBUS DPV1 Master Card
Manufacturer: Allen Bradley
-
Part Number: MVI56-PDPMV1
Condition：New with Original Package
Product Type: Communication Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

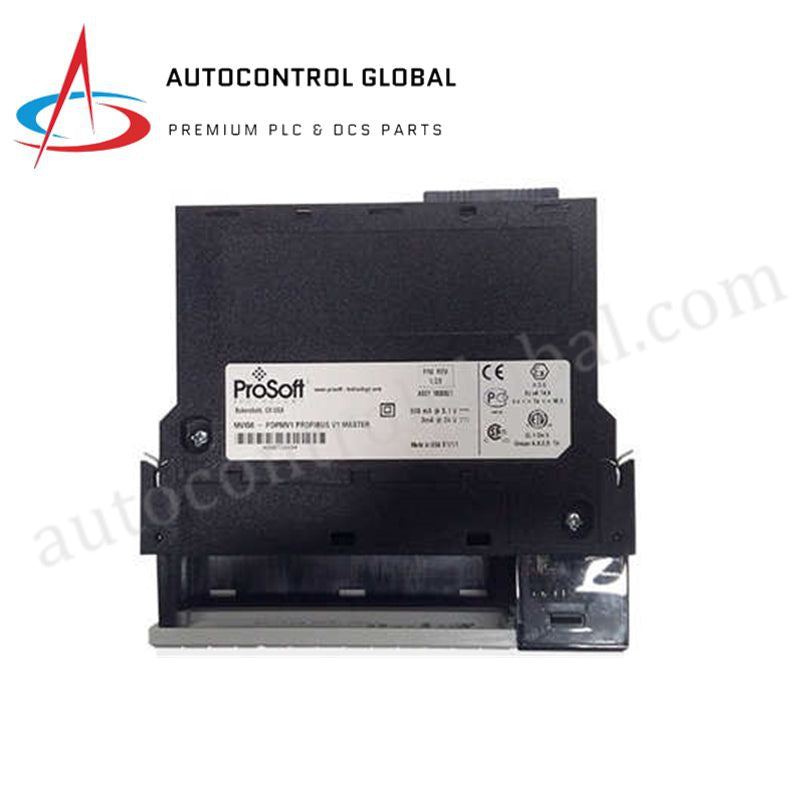

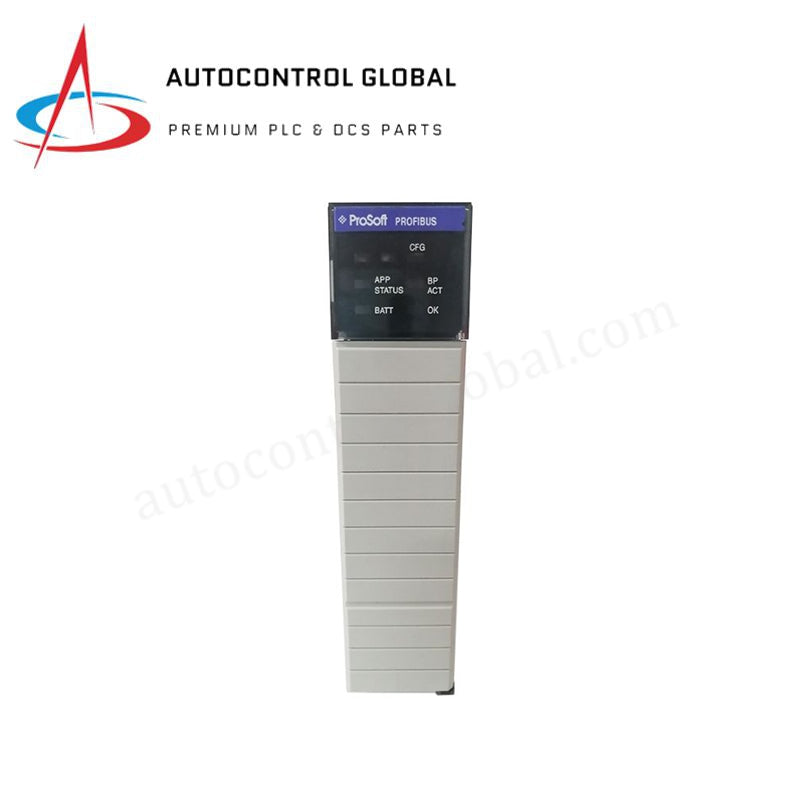

ProSoft MVI56-PDPMV1 ControlLogix PROFIBUS DP-V1 Master Module
Product Overview
The ProSoft MVI56-PDPMV1 is a high-performance PROFIBUS DP-V1 Master Network Interface Module specifically designed for the Rockwell Automation ControlLogix® platform. It functions as a specialized communication bridge, allowing ControlLogix processors to interface directly with PROFIBUS slave devices via the 1756 backplane.
The module is IEC 61158 compliant and supports both DP-V0 cyclic data exchange and DP-V1 acyclic messaging (Class 1 and Class 2 services). This dual-protocol capability enables not only high-speed I/O control but also advanced device parameterization, calibration, and diagnostics. By appearing as a standard I/O module to the ControlLogix system, the MVI56-PDPMV1 simplifies network integration while providing the high bandwidth required for complex industrial automation architectures.
Technical Specifications
Detailed hardware and functional parameters for the MVI56-PDPMV1:
| Parameter | Specification Details |
| Model Number | MVI56-PDPMV1 |
| Manufacturer | ProSoft Technology |
| Product Type | PROFIBUS DP-V1 Master Interface Module |
| Platform Compatibility | Rockwell Automation ControlLogix (1756 Chassis) |
| Protocol Support | PROFIBUS DP-V0 (Cyclic) and DP-V1 (Acyclic) |
| Baud Rate | 9.6 kbps to 12 Mbps (Auto-detection supported) |
| Slave Capacity | Supports up to 125 PROFIBUS slave devices |
| Backplane Interface | Single-slot 1756 backplane compatible |
| Configuration Tool | ProSoft Configuration Builder (PCB) |
| DP-V1 Services | Acyclic Parameter Data Transfer (Class 1 & Class 2) |
| Internal Data Transfer | Ladder Logic / Add-On Instructions (AOI) |
| Power Consumption | 800 mA @ 5 VDC; 3 mA @ 24 VDC |
| Operating Temperature | 0 °C to +60 °C (32 °F to 140 °F) |
| Relative Humidity | 5% to 95% (Non-condensing) |
| Shipping Weight | 2.0 kg |
