NFDV161-P00 Yokogawa Digital Output Module | New & Original Stock

  • Manufacturer: Yokogawa

  • Part Number: NFDV161-P00

  • Condition:New with Original Package

  • Product Type: Digital Output Modules

  • Country of Origin: Japan

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

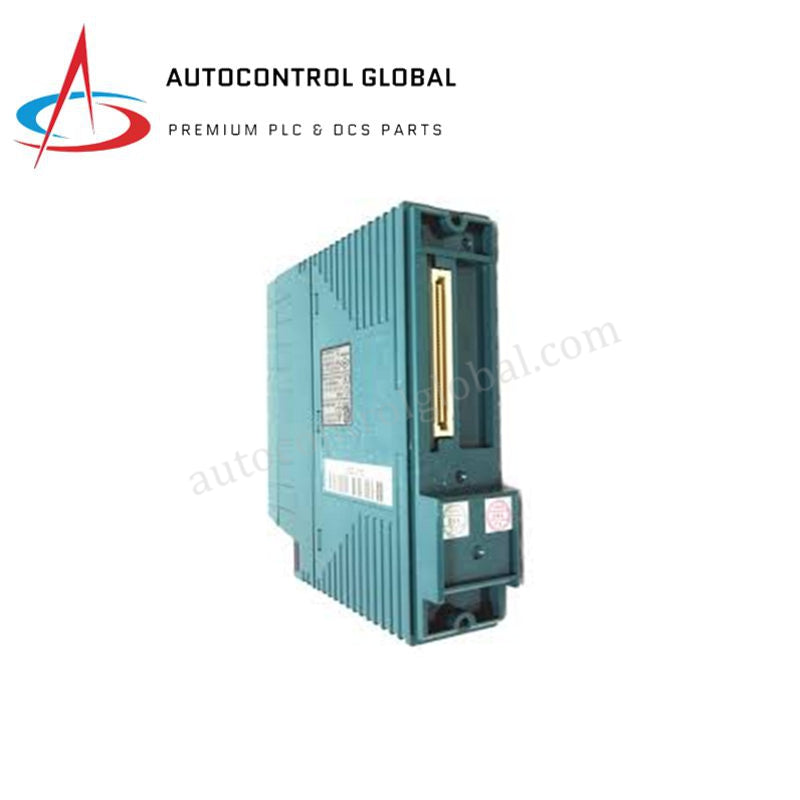

Yokogawa NFDV161-P00 Digital Output Module

The Yokogawa NFDV161-P00, also cataloged as the NFDV161 Digital Output Module, operates as a dedicated hardware component for binary signal execution within CENTUM VP / CS 3000 platforms.

Suffix Breakdown & Model Matrix

  • Base Model: NFDV161 (Digital Output Module layout architecture)
  • Configuration Code (-P00): Standard hardware baseline version defining default pin assignments and terminal parameters

Hardware Specifications

Parameter Specification
Model NFDV161-P00
Brand Yokogawa
Origin Japan
Weight 0.5 to 0.8 kg
Dimensions 120 mm x 130 mm x 25 mm
Operating Temp -20 to +60 deg C
Power Consumption 24 VDC external supply / ~0.3 A consumption via system backplane
Output Channels 16 discrete digital output points
Signal Level 24 VDC nominal drive
Output Current Capacity Up to 0.5 A per channel continuous load
Isolation Barrier Channel-to-channel and channel-to-system isolation galvanic boundaries
Hardware Response Time < 1 ms
Storage Temperature -40 to +70 deg C
Relative Humidity 10% to 90% RH, non-condensing
Code Compliance CE, RoHS

Channel-to-Channel Isolation and DCS Integration Matrix

The NFDV161-P00 commands state changes across 16 discrete output paths, supplying up to 0.5 A per channel to external field indicators, interposing relays, and inductive solenoid coils. To maintain loop integrity, the physical design utilizes absolute channel-to-channel isolation parameters. This electrical separation blocks inductive switching spikes and common-mode noise propagation from influencing nearby instrumentation lines configured for the 4-20 mA HART loop protocol. Logic command verification is sustained within a sub-millisecond execution loop directly linked to the central processors.

Frequently Asked Questions

Q: What physical system risks or signal drops occur when hot-swapping an active NFDV161-P00 module?

A: The NFDV161-P00 is engineered with online hot-swap capabilities, allowing the module to be extracted from an energized backplane chassis slot. However, the exact moment the rear multi-pin connector disengages, all 16 external current loops drop to a zero-state configuration instantly, which may trigger process interlocks or system diagnostic alarms.

Q: Can channels be configured to aggregate their output current to drive loads exceeding 0.5 A?

A: No, channels must not be wired in parallel to bypass the single-channel 0.5 A boundary limit. Exceeding the continuous current limit per path risks causing uneven thermal distribution and damaging the solid-state switching transistors inside the isolated hardware array.

Field Installation Guidelines

  • Module Slot Insertion and Faceplate Grounding: Seat the card straight into the designated sub-rack guide channels until the backplane interface block seats firmly. Fasten the integrated faceplate screws completely to ensure low-impedance electrical continuity with the cabinet earth infrastructure.
  • Inductive Load Suppression Loops: When driving heavy solenoids or un-dioded magnetic relay assemblies, mount dedicated flywheel diodes or snubber networks directly at the field device terminals to isolate inductive feedback spikes from the module.
  • Field Routing Physical Separation Bounds: Route the 16 digital output wire pairs through separate cabling ducts. Maintain a physical boundary distance of at least 300 mm from concurrent high-voltage AC mains or motor driver feed cables to prevent electromagnetic coupling.
  • Cabinet Thermal Boundary Management: Ensure that vertical airflow paths inside the card rack remain clear. Ambient control variables must keep the air temperature immediately surrounding the card case within the specified -20 to +60 deg C index limits.
