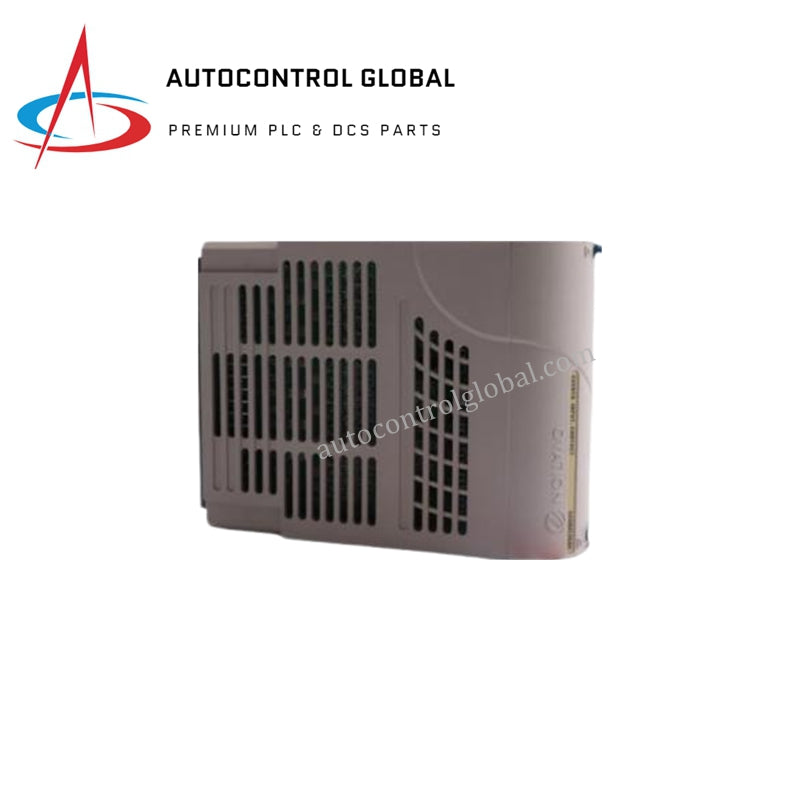

Ovation 5X00058G01 HART Analog Input Module In Stock

Product Overview

The Emerson Ovation 5X00058G01 HART Analog Input Module is designed to provide eight channels of analog input for 4-20 mA signals, integrating seamlessly with Emerson's Ovation distributed control system (DCS). This module supports both loop-powered and active source inputs, offering high-resolution data acquisition with 16-bit precision. It also features support for the HART protocol, enabling advanced diagnostics and device configuration. Ideal for industrial automation applications, this module ensures reliable and accurate signal processing.

Technical Specifications

• Number of Channels: 8
• Input Range: 4-20 mA
• Input Type:
  • Loop powered
  • Active source
• Resolution: 16 bits
• HART Protocol: Supports HART commands and device descriptors
• Power Consumption: 2.5 W max
• Dimensions:
  • Width: 7.0" (17.8 cm)
  • Height: 4.5" (11.4 cm)
  • Depth: 2.5" (6.4 cm)
• Weight: 1.2 lbs (0.5 kg)

Features

• Eight-Channel Input: Provides eight independent channels for precise analog signal acquisition.
• High Resolution: 16-bit resolution ensures accurate and detailed measurement of input signals.
• Supports HART Protocol: Facilitates digital communication with smart field devices for advanced diagnostics and configuration.
• Versatile Input Types: Compatible with both loop-powered and active source inputs, enhancing flexibility in system design.
• Low Power Consumption: Consumes a maximum of 2.5 W, contributing to energy efficiency.
• Compact Design: Small form factor makes it easy to install and integrate into existing systems.
• Reliable Performance: Designed for industrial environments, ensuring stable operation under demanding conditions.
