Ovation 5X00622G01 | Emerson RTD Module for Temperature Control
Manufacturer: Emerson
-
Part Number: 5X00622G01
Condition：New with Original Package
Product Type: RTD Module for Temperature Control
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

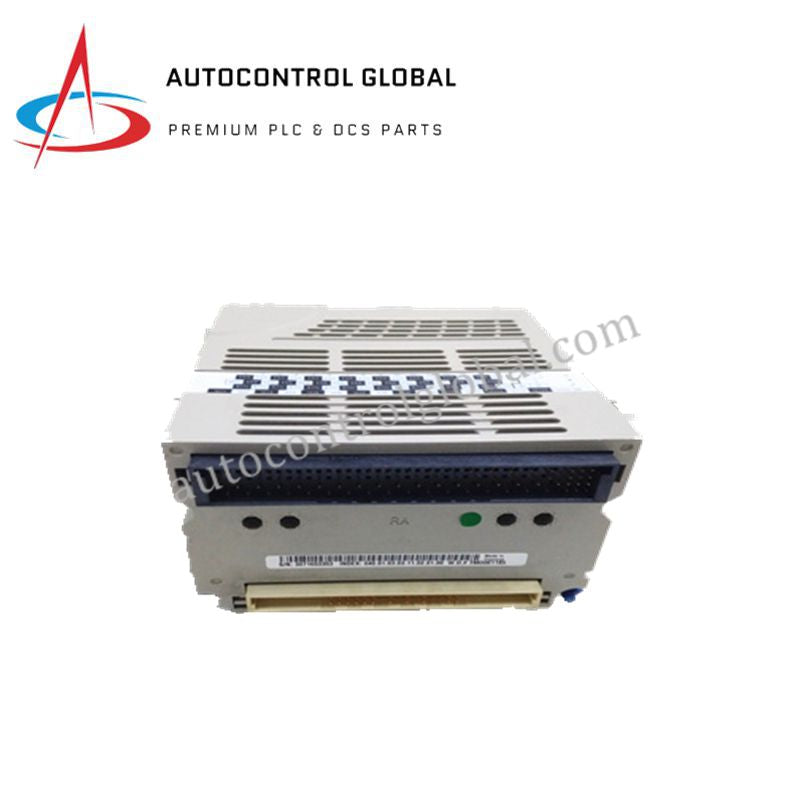

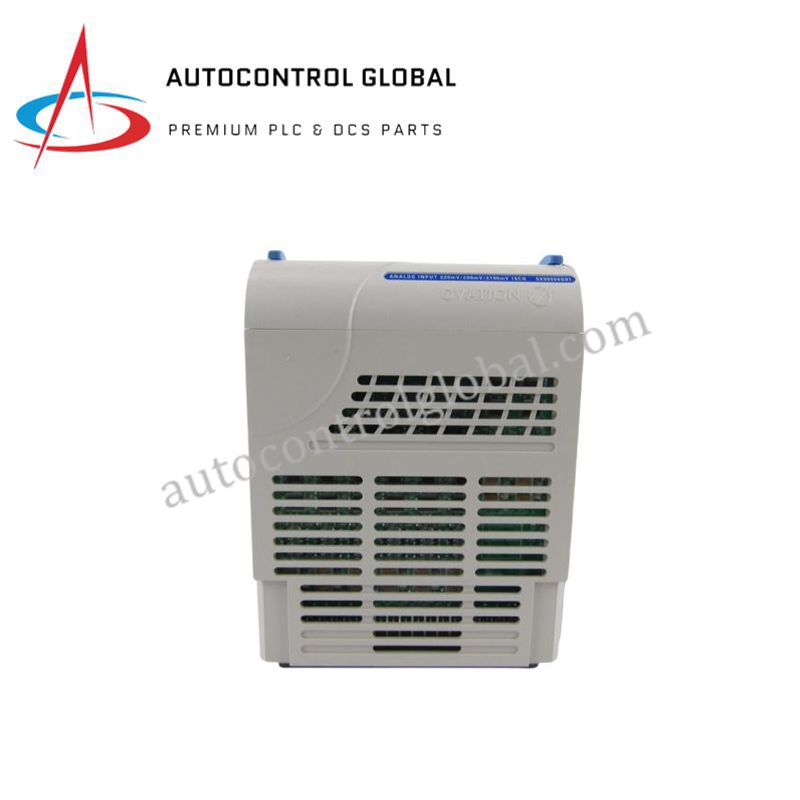

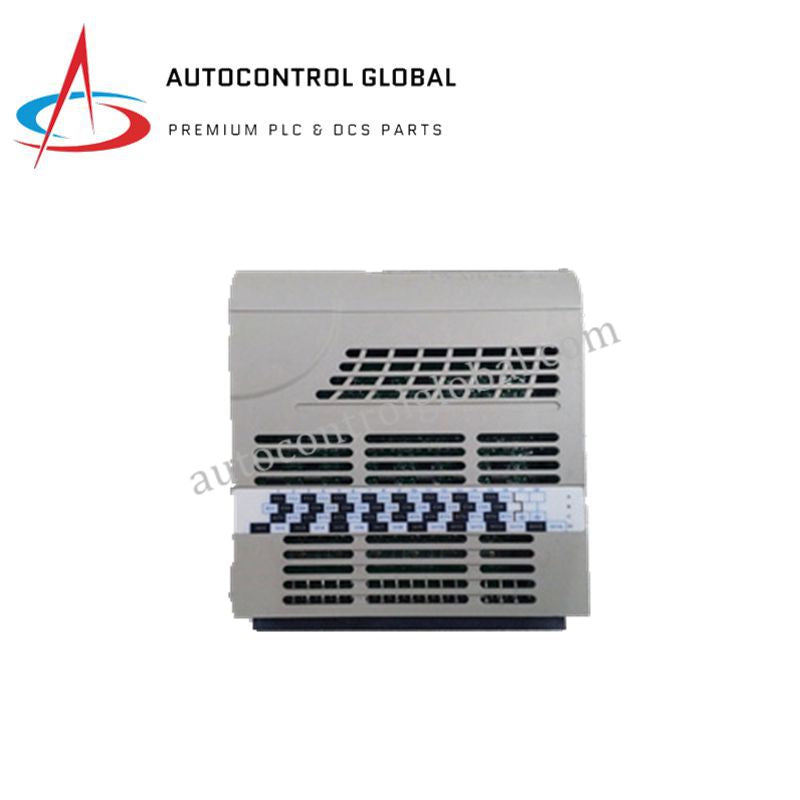

OVATION 5X00622G01 RTD Input Module
The OVATION 5X00622G01 is a high-performance RTD Input Module developed by Emerson for precise temperature measurement in critical process environments. It supports 16 independent RTD channels, allowing seamless integration of multiple temperature sensors into the Ovation DCS platform.
The 5X00622G01 is compatible with popular RTD types including Pt100, Pt500, Ni120, and Cu100, ensuring flexibility across diverse industrial applications. Its advanced electronics deliver ±0.1°C typical accuracy and 0.01°C resolution, providing highly reliable data for real-time process optimization.
Engineered with robust isolation, flexible wiring (2-wire, 3-wire, 4-wire), and built-in diagnostics, the 5X00622G01 improves system safety and maintainability. Its rack-mounted form factor, compact weight of 550 g, and wide operating range from –40°C to +70°C make it suitable for demanding environments such as thermal and nuclear power plants, chemical production, and renewable energy facilities.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 5X00622G01 |
| Type | RTD Input Module |
| Channels | 16 independent RTD input channels |
| RTD Types Supported | Pt100, Pt500, Ni120, Cu100 |
| Input Range | –200°C to +800°C (–328°F to +1472°F) |
| Accuracy | ±0.1°C typical; ±0.2°C full range |
| Resolution | 0.01°C |
| Isolation | Channel-to-channel and channel-to-ground |
| Wiring Configuration | 2-wire, 3-wire, 4-wire RTD connections |
| Diagnostics | Fault detection, open circuit alerts, signal monitoring |
| Mounting Type | Rack-mounted in Ovation I/O chassis |
| Operating Temperature | –40°C to +70°C (–40°F to +158°F) |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Weight | 550 g |
| Certifications | CE, UL, RoHS; IEEE 323 compliant |
| Manufacturer | Emerson |
| Country of Origin | USA |
FAQ
Q1: Is the OVATION 5X00622G01 brand new and original?
A1: Yes, it is factory sealed, brand new, and comes with a 12-month warranty.
Q2: How many RTD channels does this module support?
A2: The 5X00622G01 supports 16 independent RTD input channels.
Q3: What RTD types are compatible with this module?
A3: It supports Pt100, Pt500, Ni120, and Cu100 RTDs.
Q4: Can the module detect faults in RTD wiring?
A4: Yes, the 5X00622G01 includes diagnostics such as fault detection and open-circuit alerts.
Q5: What is the typical measurement accuracy?
A5: It offers ±0.1°C typical accuracy and 0.01°C resolution for precise monitoring.
Q6: How fast can you deliver this module?
A6: We have stock available, and shipments are arranged within 3 days to 2 weeks, depending on order size.
