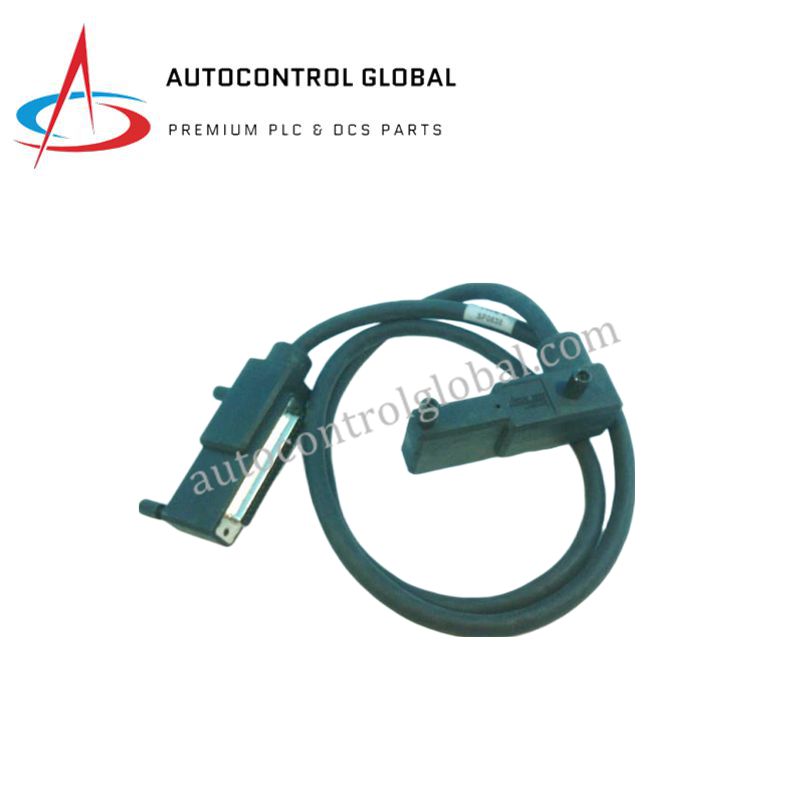

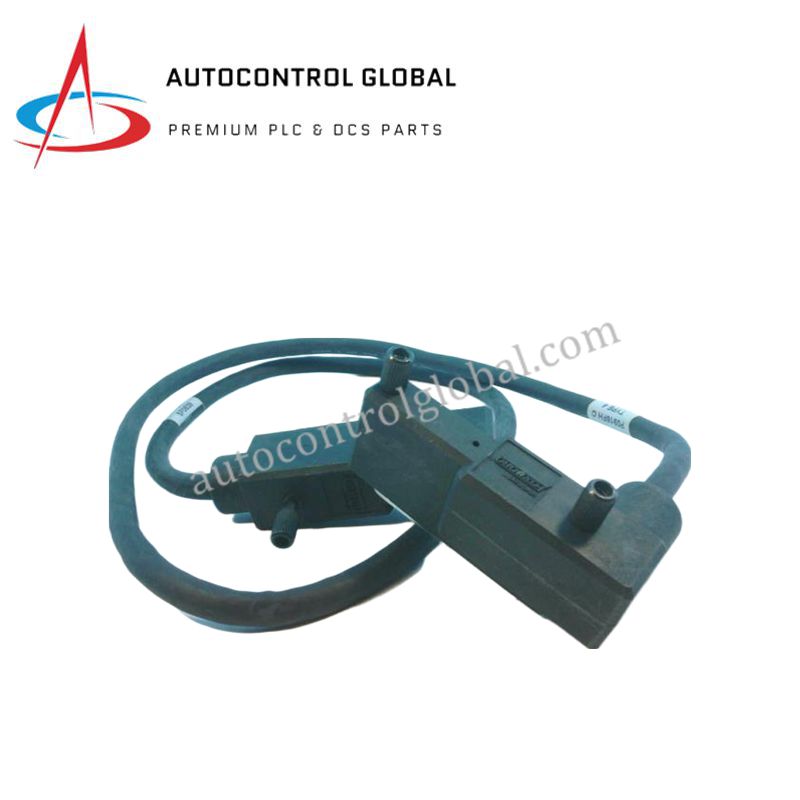

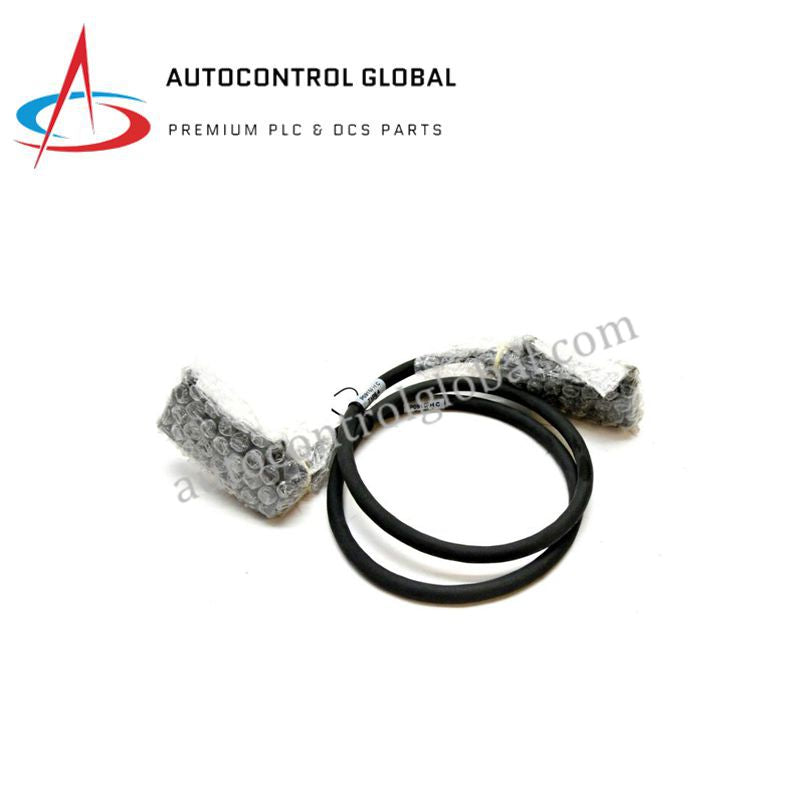

P0916FH | FOXBORO Terminal Block for 100 & 200 Series FBMs
Manufacturer: Foxboro
-
Part Number: P0916FH
Condition：New with Original Package
Product Type: Terminal Block for 100 & 200 Series FBMs
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
FOXBORO P0916FH | Terminal Block & Fieldbus Expansion Module
Product Overview
The FOXBORO P0916FH is a compact terminal block and dual-node fieldbus expansion module designed to enhance the performance of distributed control systems. It serves as a high-capacity interface for field devices, ensuring fast communication, real-time data monitoring, and fault-tolerant operation.
The P0916FH supports up to 128 FBMs when paired with the FEM100 module, offering seamless compatibility with both 100 Series and 200 Series FBMs. Its galvanic isolation reduces crosstalk by 40%, making it reliable in high-noise industrial environments such as chemical processing, automotive manufacturing, and power generation. With robust shielding and redundant input design, this module ensures system stability in mission-critical applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | P0916FH |
| Function | Terminal block and dual-node fieldbus expansion module |
| Supported FBMs | Up to 128 FBMs (200 Series); compatible with 100 Series FBMs |
| Communication | HDLC Fieldbus (2 Mbps or 268 Kbps) |
| Input Voltage | 24 V DC (supports redundant input) |
| Power Consumption | ≤ 8.5 W |
| Memory | 16 MB SDRAM, 32 MB Flash |
| Signal Isolation | Galvanic isolation per channel; reduces interference by 40% |
| Operating Temp. | –32°F to +140°F (0°C to +60°C) |
| Humidity Tolerance | 0–95% RH, non-condensing |
| Dimensions | 145 mm × 100 mm × 60 mm |
| Weight | 0.8 kg |
| Mounting Type | DIN rail or modular baseplate |
| Certifications | CE, RoHS, IEC 61131-2 compliant |
FAQ
Q: How many FBMs can the P0916FH support?
A: The P0916FH supports up to 128 FBMs when paired with the FEM100 module.
Q: Is it compatible with older Foxboro FBMs?
A: Yes, the P0916FH is compatible with both 100 Series and 200 Series FBMs.
Q: Does this module provide redundancy?
A: Yes, it supports redundant 24 V DC power input for increased system reliability.
Q: How does the module handle electrical noise?
A: Its galvanic isolation and shielding reduce interference and crosstalk by 40%.
Q: What are the typical applications for this model?
A: The P0916FH is used in chemical processing, power generation, water treatment, and automotive manufacturing.
