P0926KP | FOXBORO High-Performance Power Output Cable
Manufacturer: Foxboro
-
Part Number: P0926KP
Condition：New with Original Package
Product Type: High-Performance Power Output Cable
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
FOXBORO P0926KP | Shielded Power Output Cable
Product Overview

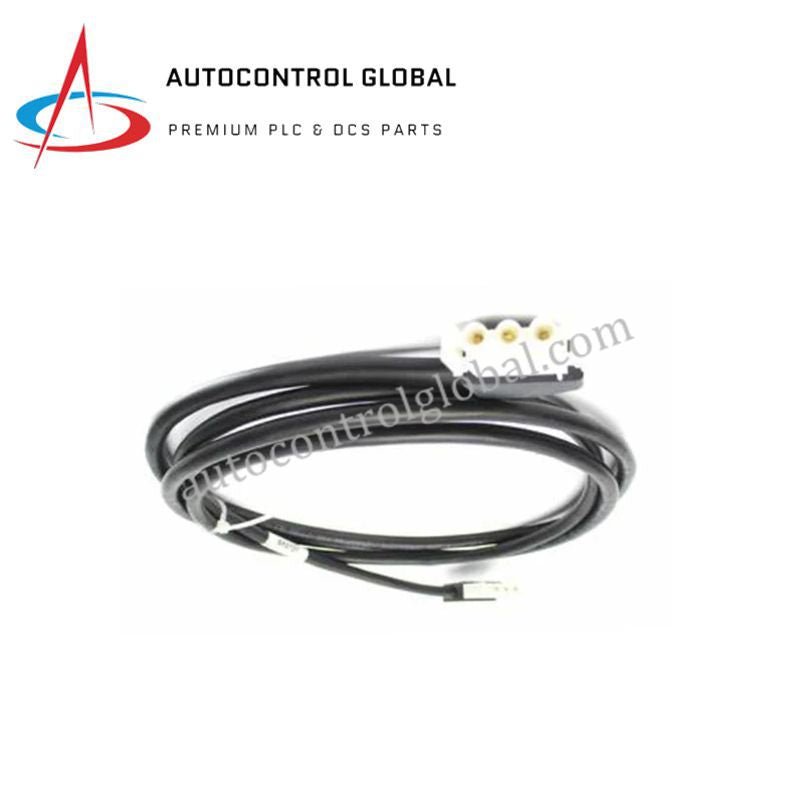

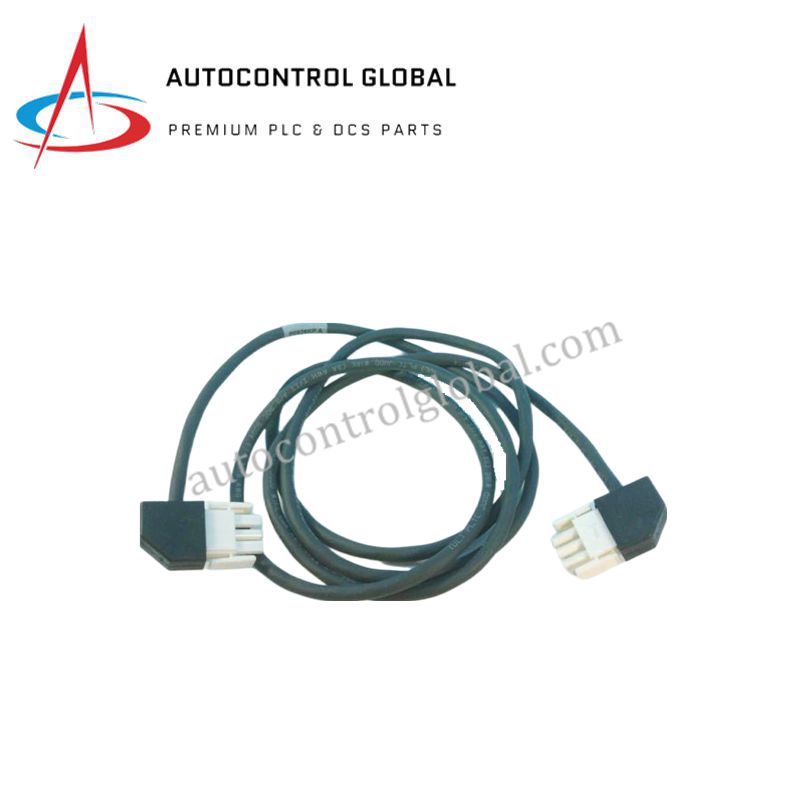

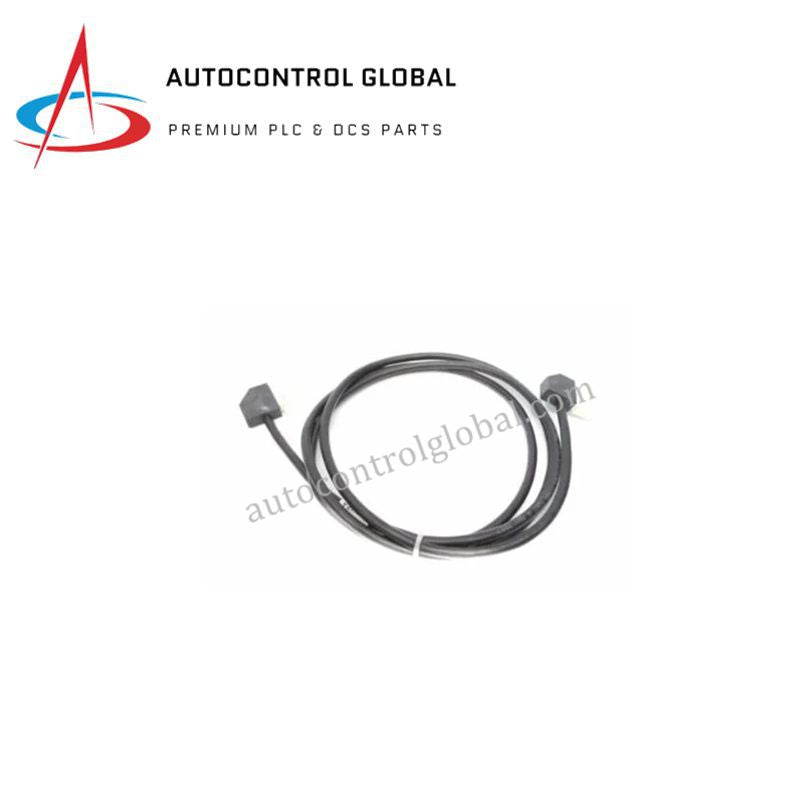

The FOXBORO P0926KP is a high-quality shielded modular power output cable designed to deliver 24 V DC from the FPS400-24 power supply to Foxboro modular baseplates. It ensures stable, redundant power distribution across multiple modules in industrial automation systems.
Built for harsh environments, the P0926KP supports parallel power connections, redundant configurations, and meets EMC compliance standards. It is ideal for petrochemical plants, power stations, pharmaceutical production, and water treatment facilities.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | P0926KP |
| Function | 24 V DC power output cable for modular baseplates |
| Cable Type | Shielded modular power cable |
| Length | 1.8 meters (6 feet) |
| Wire Gauge | 16 AWG (approx. 1.31 mm²) |
| Rated Voltage | 24 V DC |
| Rated Current | Up to 16.7 A (supports 400 W output) |
| Connector Compatibility | Interfaces with FPS400-24 power supply and modular baseplates |
| Redundancy Support | Yes – supports parallel connection of up to 6 cables |
| EMC Compliance | EN61326-1:2013 Class A |
| Environmental Rating | G3 level – resistant to corrosive gases (H₂S, Cl₂) |
| Installation | Tool-free plug-and-play; supports horizontal and vertical routing |
| Replacement Model | RH926KP – fully compatible upgrade with wider temperature range |
FAQ
Q: What is the rated voltage of the P0926KP?
A: The P0926KP operates at 24 V DC and supports up to 16.7 A current.
Q: Can multiple cables be connected in parallel?
A: Yes, up to 6 cables can be connected for redundant power distribution.
Q: What environments is the cable suitable for?
A: It is G3-rated, resistant to corrosive gases like H₂S and Cl₂.
Q: Is the P0926KP compatible with FPS400-24 power supplies?
A: Yes, it interfaces directly with FPS400-24 modular baseplates.
Q: Can it be replaced with an upgraded model?
A: Yes, the RH926KP is a fully compatible replacement with wider temperature support.
