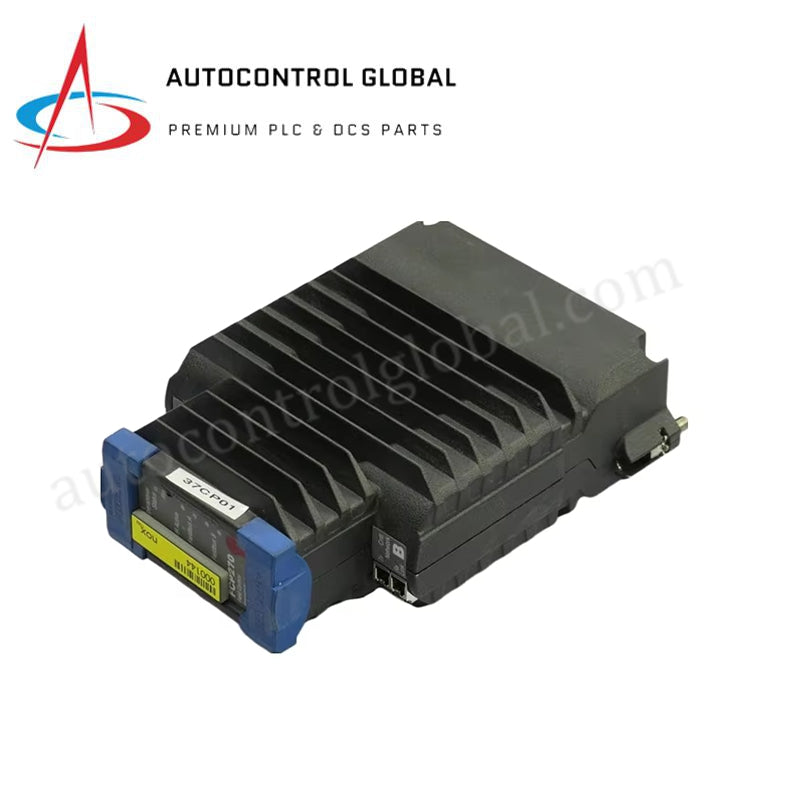

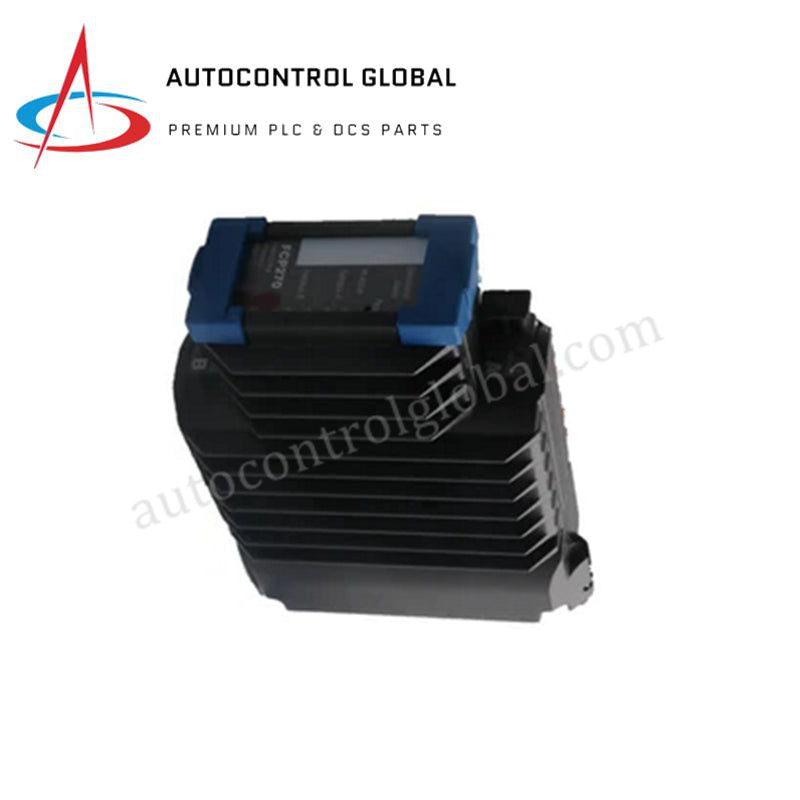

P0926MX FCP270 | Foxboro | Fiber Optic Splitter/Combiner

Product Overview

The FCP270 P0926MX (Model: P0926MX) is a specialized fiber optic Splitter/Combiner kit engineered for the Foxboro I/A Series and EcoStruxure Foxboro (Evo) Distributed Control Systems. This component is an essential element of the fault-tolerant Field Control Processor (FCP270) architecture, designed to manage high-speed optical communications across redundant network meshes.

The P0926MX (Part Number: P0926MX), often referenced by the secondary manufacturer code OSC-1801L, acts as a passive optical hub. It ensures that critical process data and synchronization signals are distributed and combined between primary and secondary FCPs without the latency or failure risks associated with active electrical components. This kit is vital for maintaining the "bumpless" switchover capability that process industries rely on for continuous, safe operation.

Detailed Technical Specifications

The FCP270 P0926MX utilizes high-precision optical components to ensure signal integrity across the DCS control network.

• Manufacturer: Foxboro (Schneider Electric) / Formerica

• Model Code: FCP270 P0926MX

• Part Number: P0926MX (Alternative: OSC-1801L)

• Product Type: Fiber Optic Splitter/Combiner Kit

• System Compatibility: Foxboro I/A Series, Foxboro Evo, FCP270 fault-tolerant pairs

• Technology: Passive Optical Prism (Non-powered)

• Wavelength Compatibility: Optimized for 850 nm / 1300 nm multi-mode fiber systems

• Insertion Loss: Low-attenuation design for long-distance stability

• Connector Type: Standard high-integrity fiber interfaces

• Operating Temperature: -20 °C to +70 °C

• Storage Temperature: -40 °C to +85 °C

• Dimensions (L x W x H): 115 mm x 45 mm x 32 mm

• Weight: 0.22 kg

• Construction: Industrial-grade housing for EMI/RFI immunity
