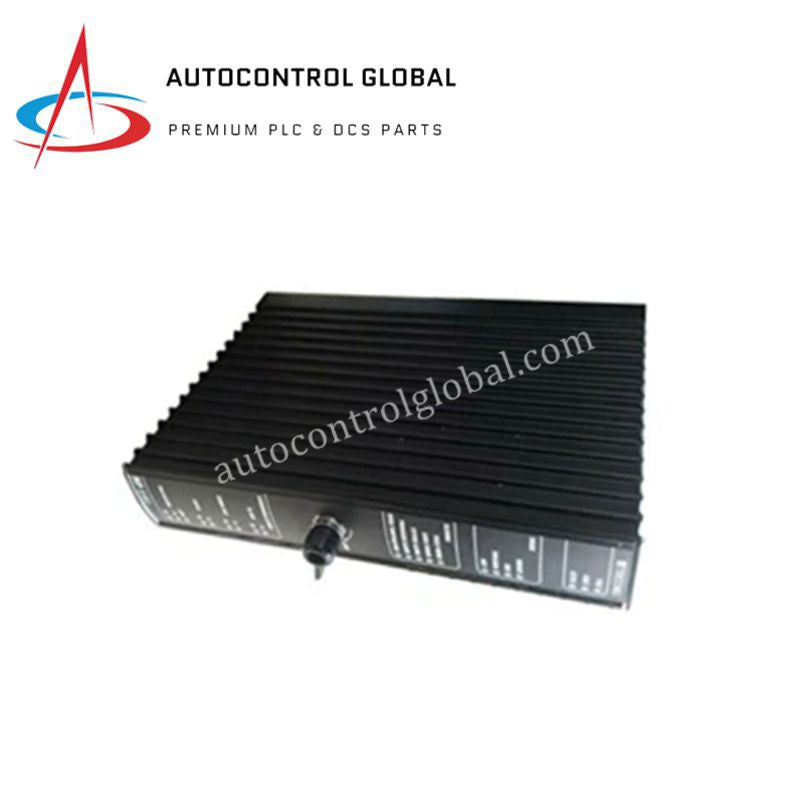

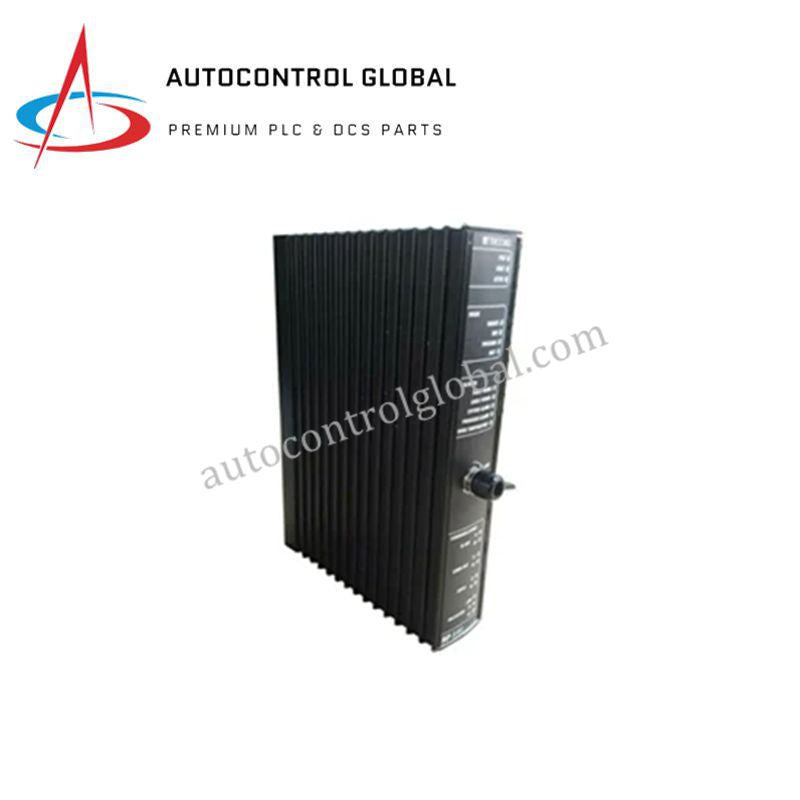

P13381 Triconex | Pulse Input Module Speed Measurement
Manufacturer: Triconex
-
Part Number: PI3381
Condition：New with Original Package
Product Type: Pulse Input Module Speed Measurement
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
Product Overview
The Triconex Pulse Input Module P13381 is designed to capture and process high-frequency pulse signals generated by rotating equipment. It provides accurate speed and frequency measurements from magnetic and electronic speed sensors, supporting reliable monitoring of turbines, compressors, pumps, and other critical machinery.
This module converts pulse transitions into precise rotational data, which is forwarded to Tricon main processors for safety logic execution. Its design emphasizes signal integrity, noise immunity, and deterministic performance in safety-critical applications.
Functional Capabilities
The Triconex P13381 supports six independent pulse input channels, each capable of handling both amplified and non-amplified sensor signals. Using a gear-tracking measurement algorithm, the module calculates speed by analyzing pulse count and timing, ensuring stable readings across a wide operating range.
Channel isolation and configurable termination options allow the module to adapt to varying field wiring conditions while maintaining measurement accuracy and electrical protection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Triconex P13381 |
| Product Type | Pulse Input Module |
| Input Channels | 6 pulse inputs, channel isolated |
| Sensor Types | Magnetic, active, open collector |
| Input Configuration | Differential or single-ended |
| Speed Measurement Range | 0 to 32,000 RPM |
| Input Frequency Range | 0.5 Hz to 32 kHz |
| Resolution | 24-bit |
| Absolute Accuracy | ±0.01% (2,000–32,000 Hz), ±0.1% (0.5–2,000 Hz) |
| Duty Cycle Support | 20–80% or ≥10 μs pulse width |
| Maximum Voltage | ±33 VDC |
| Gear Teeth Support | 1 to 255 teeth |
| Diagnostic Features | Precision reference test |
| Minimum Update Rate | 20 ms |
| Isolation Rating | ≥500 VDC functional to earth |
| System Compatibility | Triconex Tricon Safety Instrumented System |
Industrial Applications
The Triconex Pulse Input Module P13381 is commonly deployed in overspeed protection systems, rotating equipment monitoring, and machinery protection layers. Typical industries include oil and gas production, petrochemical processing, power generation, and heavy industrial plants where accurate speed feedback is essential for safe operation.
Lifecycle and Integration Notes
This module is intended exclusively for Tricon safety systems and must be installed in compatible Tricon racks and baseplates. Proper sensor selection, grounding, and configuration are required to achieve specified accuracy and maintain long-term system reliability.
