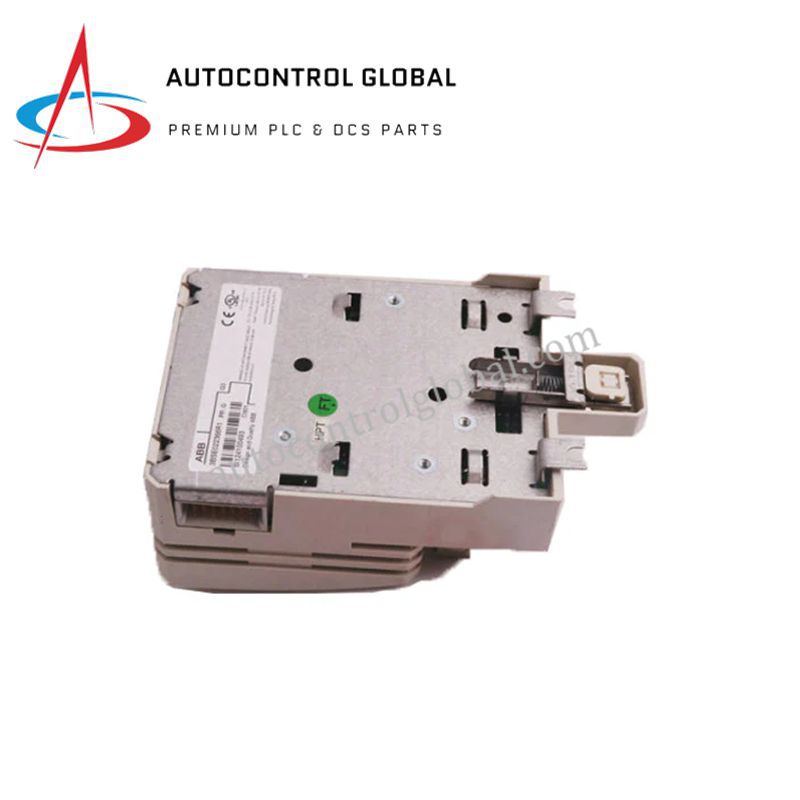

PM865K01 ABB CPU Module | High-Reliability Processor Unit
Manufacturer: ABB
-
Part Number: PM865K01 3BSE031151R1
Condition：New with Original Package
Product Type: High-Reliability Processor Unit
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
The ABB PM865K01 (3BSE031151R1) is a high-performance processor unit designed for AC 800M and 800xA control systems. It is certified for SIL3 safety applications, delivering exceptional reliability in power generation, chemical, oil & gas, and water treatment industries. Moreover, the PM865K01 supports redundant configurations, ensuring continuous operation and fast failover for mission-critical processes. The unit comes complete with a PM865 processor, baseplate, CEX and ModuleBus terminators, and a memory backup battery for data integrity. Its versatile communication interfaces and scalable I/O capacity make it ideal for complex automation tasks.
Specifications
| Attribute | Specification |
|---|---|
| Model | PM865K01 |
| Part Number | 3BSE031151R1 |
| Processor | 96 MHz CPU with 32 MB memory |
| RAM / Flash | 512 MB RAM + 2 GB Flash (expandable) |
| Power Supply | 24 VDC ±10% |
| Power Consumption | Typical: 15 W; Max: 20 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 (cabinet-mounted) |
| Communication Interfaces | 2× Gigabit Ethernet (PROFINET, EtherNet/IP), 2× RS-232/485, USB 2.0; supports Modbus RTU/TCP, Profibus DP |
| I/O Capacity | Up to 256 digital I/O, 64 analog I/O (via expansion) |
| High-Speed Counters | 4 channels (up to 100 kHz) |
| PWM Outputs | 4 programmable channels |
| Redundancy Support | Yes (hot standby configuration) |
| Mounting | DIN rail or rack-mounted |
| Included Accessories | TP830 baseplate, TB850 CEX-bus terminator, TB807 ModuleBus terminator, TB852 RCU-Link terminator, memory backup battery (4943013-6) |
| Net Dimensions (L×W×H) | 135 mm × 119 mm × 186 mm |
| Net Weight | 1.2 kg |
| Country of Origin | Sweden |
FAQ
Q1: What systems are compatible with the PM865K01?
A1: It is compatible with ABB AC 800M and 800xA control systems.
Q2: Does the unit support redundant operation?
A2: Yes, it supports hot standby configuration for high availability.
Q3: What I/O capacity does the processor support?
A3: It can manage up to 256 digital I/O and 64 analog I/O via expansion modules.
Q4: What safety certification does this processor have?
A4: The PM865K01 is certified for SIL3 safety applications.
Q5: Is this unit RoHS compliant?
A5: No, this unit is not RoHS 2 compliant and is intended for legacy systems.
