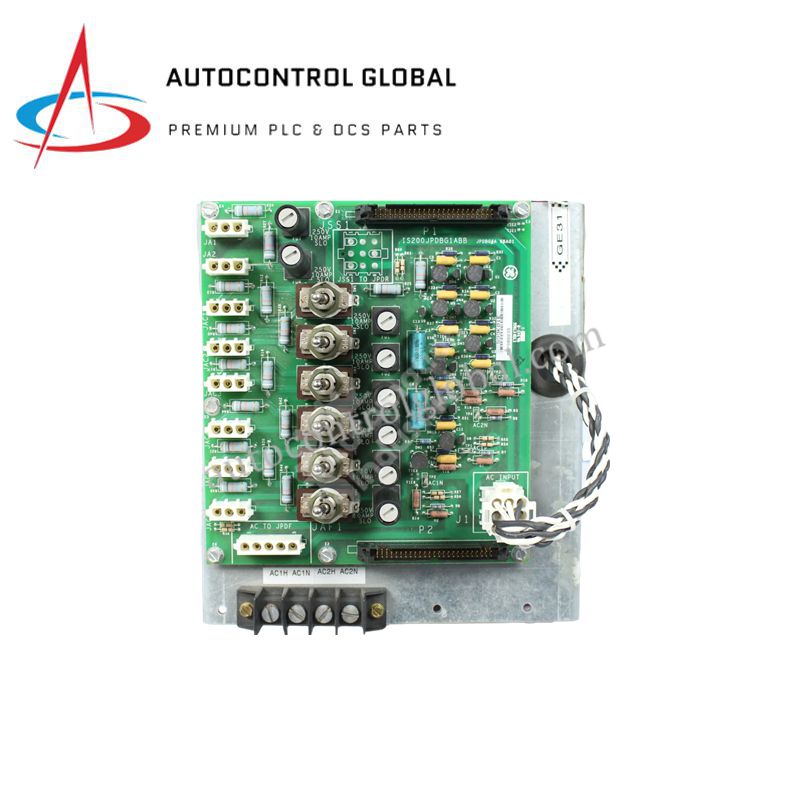

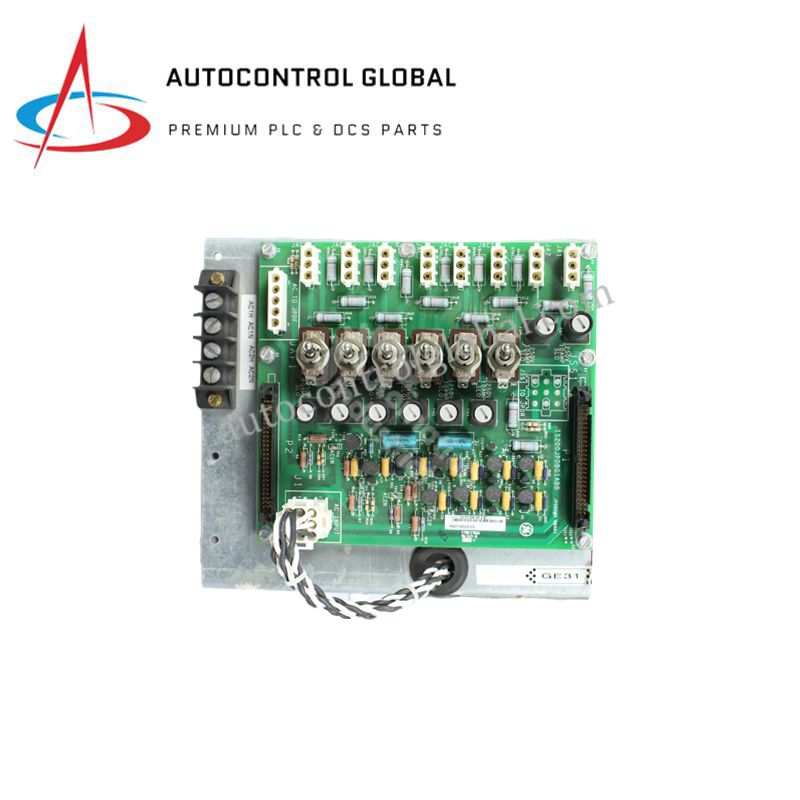

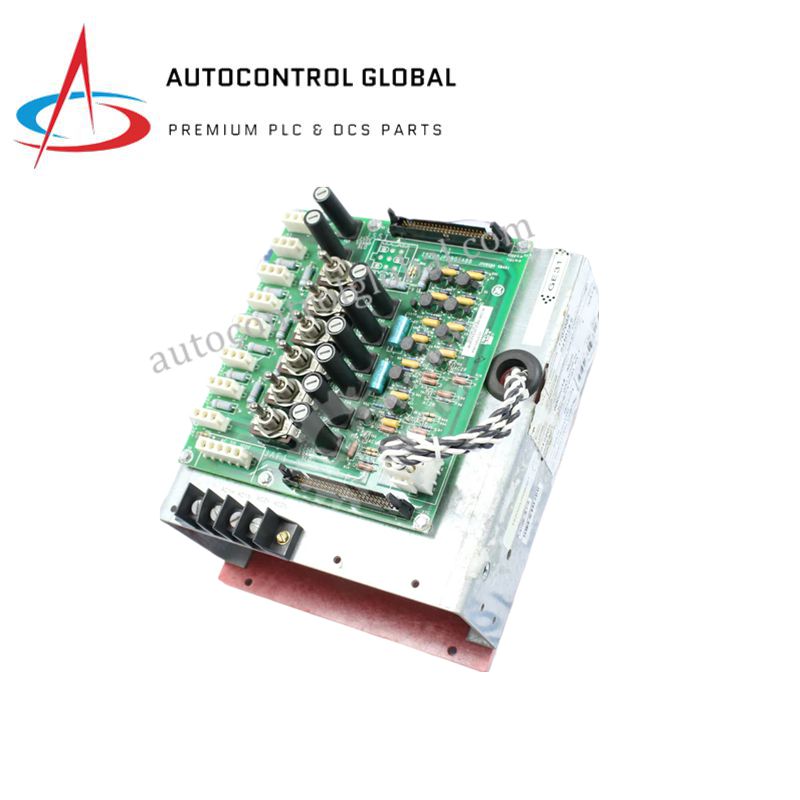

Power Distribution Module | GE IS2020JPDBG01 for Mark VIe Control

IS2020JPDBG01 GE Power Distribution & Digital Input Module – Product Description

Overview

The IS2020JPDBG01 is a versatile module designed for GE’s Mark VIe control platform, supporting both power distribution and digital signal acquisition in demanding industrial environments. It handles AC power distribution for system components while monitoring multiple digital inputs from field devices. Moreover, its stable performance helps operators maintain reliable turbine and process control in facilities where safety and uptime matter.

With its robust electrical design and precise signal handling, the IS2020JPDBG01 delivers dependable operation in gas turbines, steam turbines, and complex industrial automation systems. In addition, its compact form factor and DIN-rail mounting make integration straightforward for both upgrades and replacements.

Technical Specifications

Product Information

• Product Number: IS2020JPDBG01

• Manufacturer: General Electric

• Series: Mark VIe

• Product Type: Power Distribution Board / Digital Input Module

• Country of Origin: USA

• Availability: In stock

Electrical Characteristics

• Supply Voltage: 28 VDC

• Operating Voltage Range: 18–32 VDC

• Trip Solenoid Rating: 125 VDC

• Input Range: –8 mV to +45 mV

• Relay Channels: 12

• Input Channels: 24 relay channels

• Digital Input Channels: 16

• Technology: Surface-mount design

Performance

• Response Time: ≤1 ms

• Input Filtering: 0.1–100 ms

• Accuracy: High reliability with deterministic response

Environmental & Mechanical Data

• Operating Temperature: –40 °C to +70 °C

• Dimensions: 168 × 150 × 55 mm

• Mounting: DIN-rail installation
