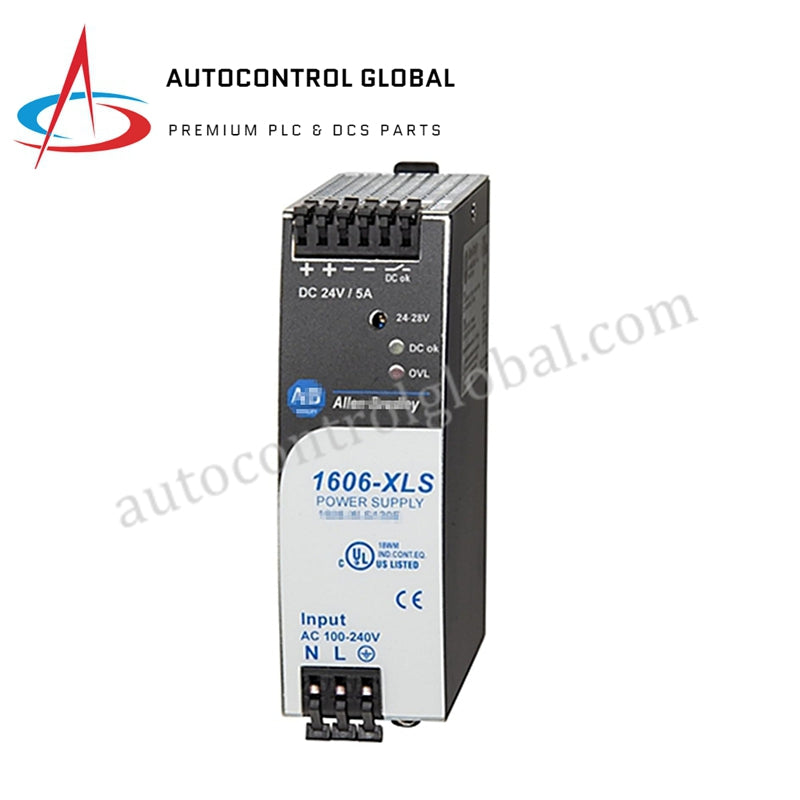

Power Supply 1606-XLS120EA Allen-Bradley

Description

The 1606-XLS120EA Power Supply from Allen-Bradley is a high-performance, versatile power supply designed for demanding industrial applications. With adjustable secondary voltage and a high efficiency of 92.7%, it ensures reliable operation in various environments. It features active PFC for improved power factor and compliance with industry standards.

Electrical Characteristics

• Nominal Output Voltage: 24 V

• Output Voltage Range: 24...28V DC

• Rated Output Current: 5A @ 24V DC

• Power Output: 120 W

• Efficiency: 92.7% typical

• Power Losses: 9.4 W typical

• Power Factor: 0.91 typical

• Derating: 3 W/°C

Input Specifications

• Rated Supply Voltage (DC): 110 V

• Input Voltage: 100...240V AC, 47...63 Hz

• Rated Input Current: 1.4A @ 100V AC

• Input Inrush Current: 9 A/11 A

• Operational Range: 88...360V DC

• Input Inrush Current Limiter: Active

Additional Features

• DC OK Relay Contact: True

• Hold-Up Time: 33 to 59 ms

• Reserve Power (typ. 4s): 7.5A @ 24V DC

• External Input Fuse (min): B-6 A or C-3 A

• Rail Mounting Possible: True

Environmental Conditions

• Special Features: Active PFC, Class 1 Division 2, Semi F47, ABS/GL/RINA (marine)

• Stabilized Output Voltage: True
