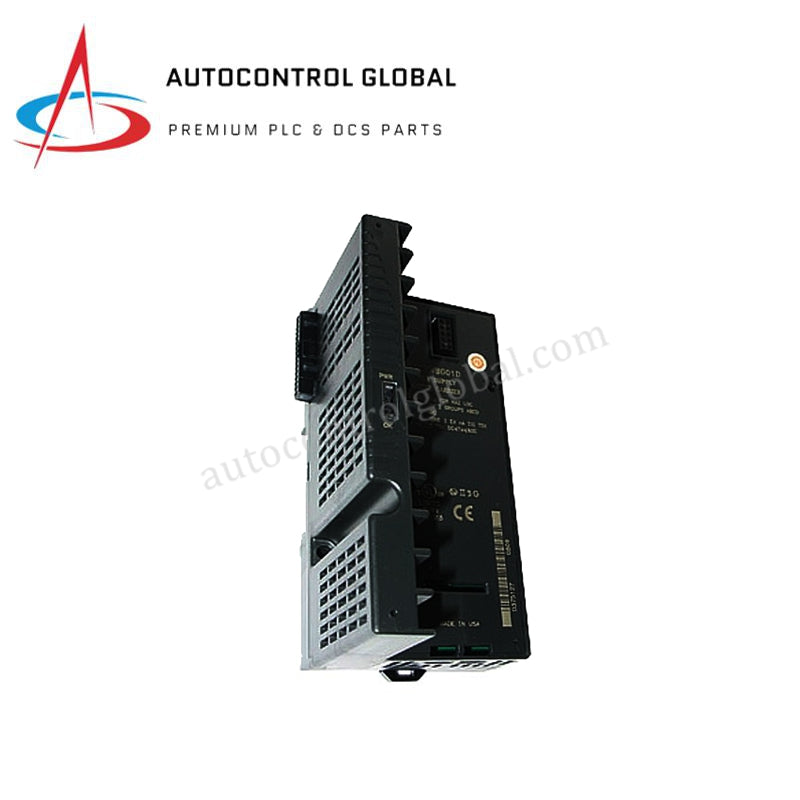

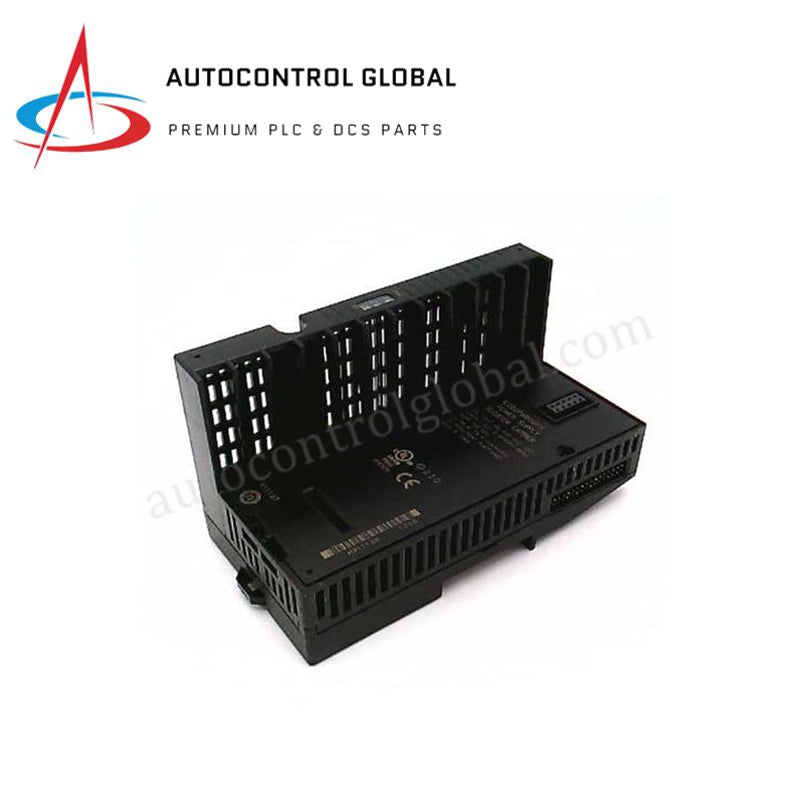

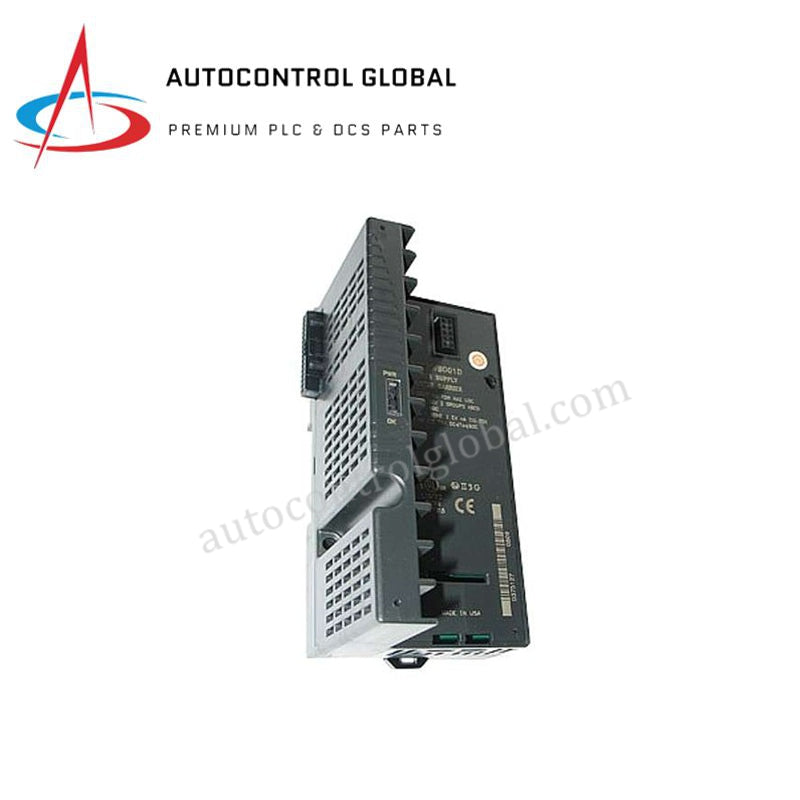

Power Supply Booster Carrier Module | GE IC200PWB001B
Manufacturer: GE Fanuc
-
Part Number: IC200PWB001B
Condition：New with Original Package
Product Type: Power Supply Modules
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
GE IC200PWB001B VersaMax Power Supply Booster Carrier Module
The GE IC200PWB001B, also cataloged as the IC200PWB001 Power Supply Booster Carrier, operates as a dedicated hardware component for auxiliary 24 VDC power injection into the backplane bus within VersaMax I/O platform networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC200PWB001B |
| Brand | GE Fanuc / Emerson |
| Origin | USA |
| Weight | 0.28 kg (0.63 lbs) |
| Dimensions | 200 mm W x 100 mm H x 40 mm D |
| Operating Temp | -20 to 70 deg C |
| Power Consumption | 2.5 W power dissipation |
| Input Voltage | 24 VDC auxiliary supply |
| Terminal Type | 10-point spring clamp block |
| Terminal Torque | 1.1 to 1.4 Nm |
| Isolation Rating | 1500 VAC continuous |
| Enclosure Rating | IP20 |
| Reliability (MTBF) | 50,000 hours |
| Status Indicators | PWR LED (booster active), OK LED (system status) |
| Mounting Style | 35 mm DIN rail or panel mount |
| Storage Temp | -40 to 85 deg C |
Backplane Bus Communication Velocity and System Architecture
The IC200PWB001B carrier injects external auxiliary power directly into the VersaMax backplane bus structure to maintain stable voltage thresholds across extended or high-density rack configurations. By eliminating voltage drop across downstream slots, the module preserves backplane bus communication velocity and supports I/O density scaling without degrading signal refresh timing. The integrated circuit layout maintains firmware flash compatibility across connected VersaMax CPUs, NIUs, and expansion modules while providing dual LED status monitoring.
Frequently Asked Questions
Q: Does the IC200PWB001B function as an independent standalone power supply?
A: No. The carrier requires an external 24 VDC field power source wired to its 10-point spring clamp terminal block to inject auxiliary power into the backplane bus.
Q: What environmental protection and electrical isolation levels does this unit offer?
A: The module carries an IP20 enclosure rating, operates from -20 to 70 deg C, and provides 1500 VAC continuous galvanic isolation to safeguard field wiring from backplane logic signals.
Field Installation Guidelines
Mount the unit securely onto a standard 35 mm DIN rail or directly to a backpanel enclosure. Connect the incoming auxiliary 24 VDC power supply to the 10-point spring clamp terminal block, torquing connections to 1.1–1.4 Nm. Ground the 35 mm DIN rail properly to frame earth to ensure adequate EMC protection and high-frequency noise suppression across the carrier housing.
