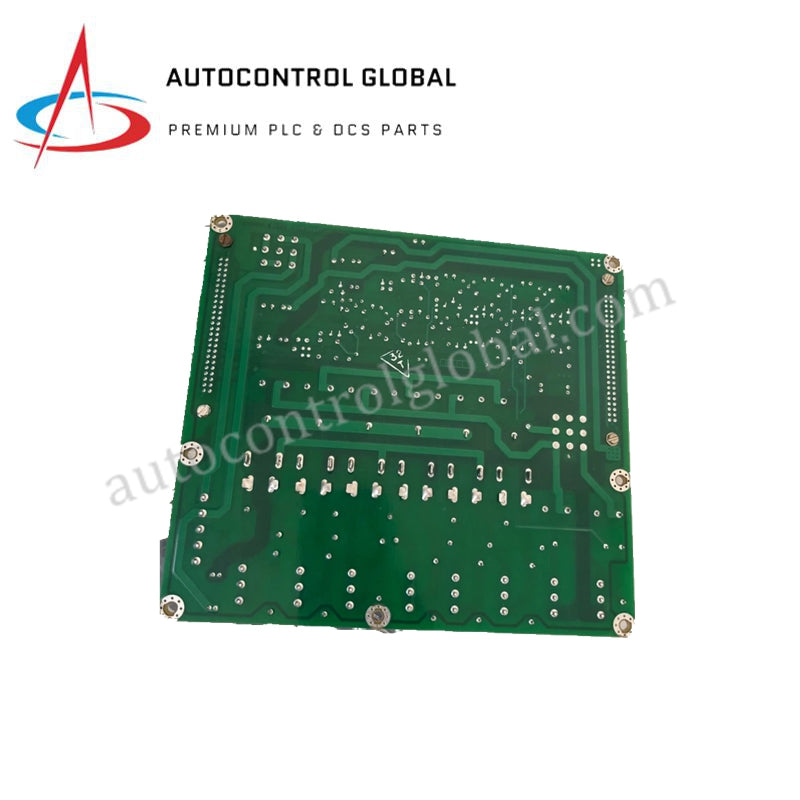

Printed Circuit Board Mark VI NEW | GE IS200EMCSG1AAB
Manufacturer: GE Fanuc
-
Part Number: IS200EMCSG1A
Condition：New with Original Package
Product Type: Exciter Main Control Board
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The IS200EMCSG1A (functional acronym EMCS) is an authoritative Exciter Main Control Board engineered by GE Fanuc for the Mark VI Speedtronic turbine control system. This module is a mechanical necessity for managing generator excitation, specifically designed to regulate field voltage and current with high precision. By processing exciter feedback signals through its embedded real-time microcontroller, the IS200EMCSG1A ensures synchronous stability for gas and steam turbines. It serves as the primary protective interface for the excitation subsystem, capable of executing rapid trip commands to ensure a safe system shutdown during over-excitation or fault conditions.
Detailed Technical Specifications
| Attribute | Details |
| Manufacturer | GE Fanuc / General Electric |
| Model Number | IS200EMCSG1A |
| Part Number | IS200EMCSG1AAB |
| Series | Mark VI Speedtronic |
| Functional Acronym | EMCS |
| Product Type | Exciter Main Control Board |
| Microprocessor | Embedded high-speed microcontroller for real-time regulation |
| Logic Voltage | 24 VDC ±10% (supplied via VME backplane) |
| Inputs | Exciter feedback, sensor inputs, trip commands |
| Outputs | Power circuit control signals, protective trip outputs |
| Operating Temp | -40 °C to +70 °C (Industrial Grade) |
| Form Factor | Standard 6U VME board (266 x 197 mm) |
| Humidity | 5% to 95% non-condensing |
Engineering and Operational Guidelines
-
Excitation Regulation Expertise: The IS200EMCSG1A handles the critical task of field current regulation. This expertise allows the Mark VI system to maintain steady-state generator voltage and respond dynamically to reactive power demands on the grid.
-
Protective Monitoring Logic: This board is equipped with authoritative monitoring circuits that continuously track exciter health. If field voltage deviates from the safety envelope, the board can autonomously trigger protective trip outputs to isolate the exciter and protect the generator windings.
-
Industrial Durability and Noise Immunity: Specifically built for power plant environments, the IS200EMCSG1A features a ruggedized PCB with normal conformal coating. Its design prioritizes electromagnetic compatibility (EMC), ensuring reliable signal processing near high-voltage power circuits.
-
Simplified Maintenance: A trustworthy feature of the EMCS board is the array of onboard status LEDs. These provide maintenance engineers with immediate visual feedback regarding processor health, communication status, and fault detection, which significantly simplifies troubleshooting in complex VME racks.
Technical FAQ
Q: How does the IS200EMCSG1A interface with the rest of the Mark VI system?
A: The board communicates via the VME backplane, which provides both its 24VDC logic power and the data path to the main control processors (<R>, <S>, and <T> cores).
Q: Can this board be used in a Triple Modular Redundant (TMR) configuration?
A: Absolutely. In a TMR setup, the IS200EMCSG1A participates in the voting logic to ensure that excitation control remains consistent across all three redundant cores, enhancing system reliability.
Q: Is the IS200EMCSG1AAB suffix interchangeable with the IS200EMCSG1A?
A: The "AB" suffix denotes a specific functional revision level. While the core functionality is the same, it is a professional best practice to ensure that the revision level matches your system's existing hardware grouping to maintain software and firmware synchronization.
