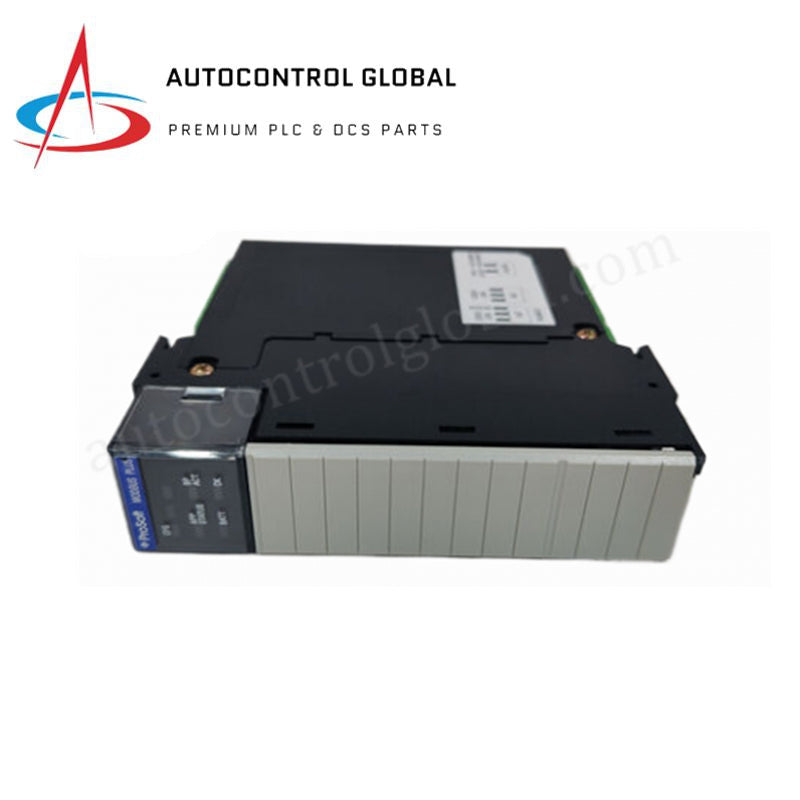

ProSoft MVI56-MBP Modbus Plus Protocol Interface Module

ProSoft MVI56-MBP ControlLogix Modbus Plus Communication Module

Product Description

The MVI56-MBP (MVI56-MBP) is a specialized Modbus Plus communication gateway developed by ProSoft Technology for the Allen-Bradley ControlLogix platform. This single-slot module resides directly in the 1756 chassis, enabling high-speed, bi-directional data transfer between ControlLogix processors and Modbus Plus networks. It is the primary solution for integrating modern Rockwell Automation systems with legacy Modicon PLCs and other Modbus Plus compatible hardware.

The MVI56-MBP (MVI56-MBP) supports both Master and Slave functionalities across two independent ports. It utilizes a large 4000-word shared data memory, allowing for complex mapping of bits, integers, and floating-point values. With support for Global Data, the module ensures high-speed deterministic control with response times often under 5 ms, making it suitable for time-critical process control and SCADA applications.

Detailed Technical Specifications

The MVI56-MBP is engineered to meet rigorous industrial automation standards:

• Manufacturer: ProSoft Technology

• Model Number: MVI56-MBP

• Platform Compatibility: Rockwell Automation ControlLogix (1756 Chassis)

• Slot Requirement: Single Slot (Backplane Powered)

• Protocol: Modbus Plus (Master and Slave roles)

• Communication Ports: Two (2) DB9 Female Modbus Plus Ports; One (1) RJ11 Configuration Port

• Data Register Space: 4000 16-bit words (User-definable)

• Global Data Support: High-speed mechanism for critical real-time control (<5 ms)

• Command Capacity: Up to 100 polling commands per Master port

• Supported Function Codes: 1, 2, 3, 4, 5, 6, 15, 16, and Broadcast

• Backplane Current Draw: 800 mA @ 5 V DC; 3 mA @ 24 V DC

• Operating Temperature: 0 °C to +60 °C (Standard)

• Shock/Vibration: 30 g Shock / 5 g Vibration (IEC 60068)

• Configuration Interface: RS-232 (RJ11) with EDS and Add-On Instruction (AOI) support

• Weight: 0.78 kg
