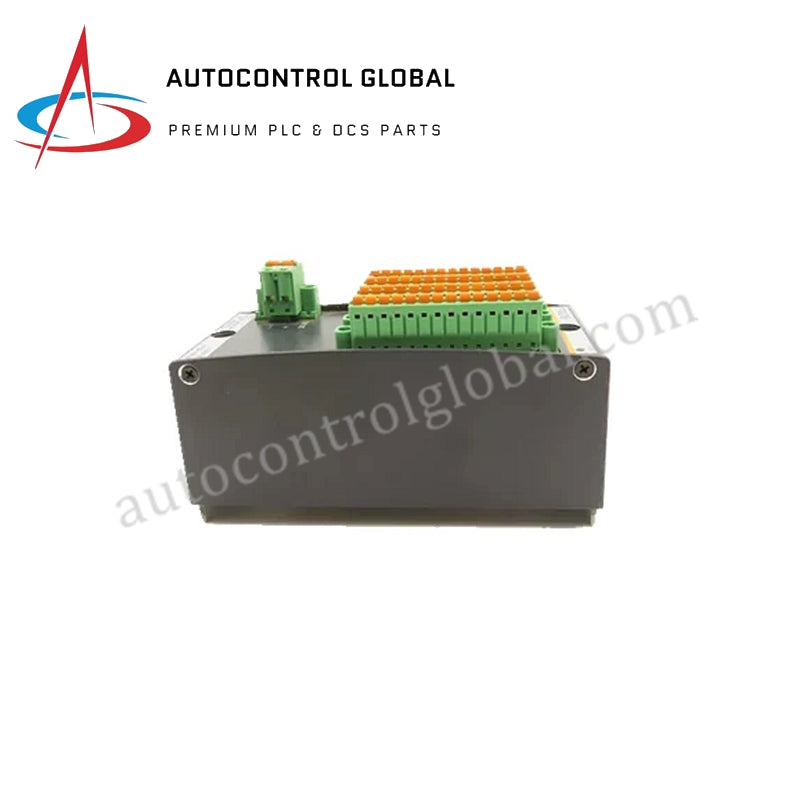

PTAI216 Bachmann | Temperature Input Module

Description

The PTAI216 from Bachmann is a temperature input module designed for high-precision analog signal acquisition. It supports both voltage and current inputs with 14-bit resolution and fast sampling times.

Voltage Input Parameters

• Channels: 4

• Input Type: Single-ended or differential

• Voltage Range: ±1 V or +10 V

• Input Impedance: >33 kΩ

• Input Filter: 170 Hz (1st order low-pass)

• Resolution: 14 bits

• Common Mode Voltage: Max. ±1 V

• Cross-talk Attenuation: >60 dB

• Sample Time: 2.5 ms

Current Input Parameters

• Channels: Max. 4

• Input Range: 0 to 20 mA

• Input Impedance: 243 Ω

• Resolution: 14 bits

• Max. Input Current: 35 mA (destruction limit)

• Sample Time: 2.5 ms
