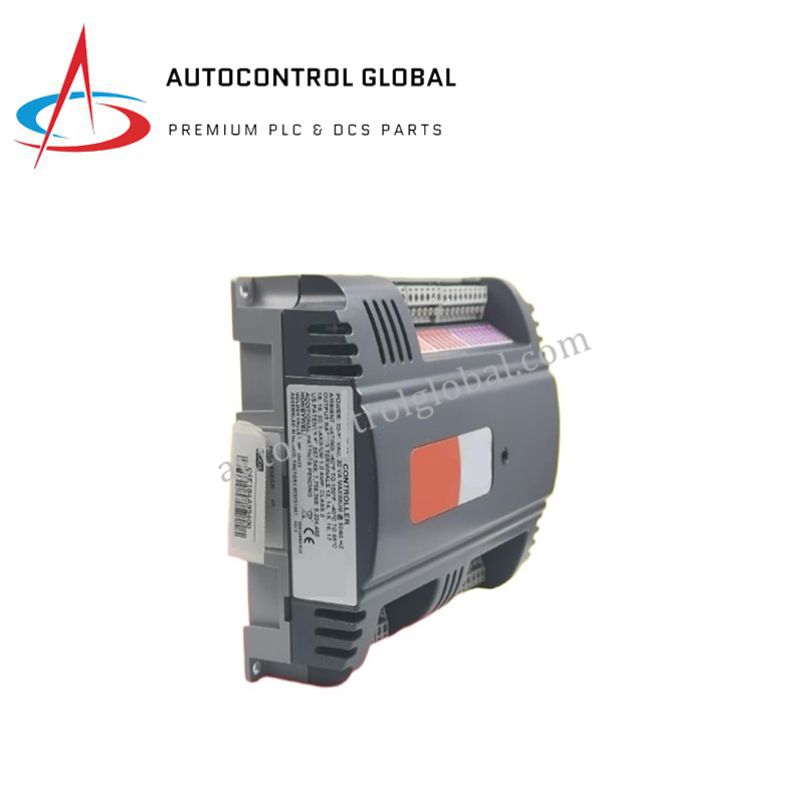

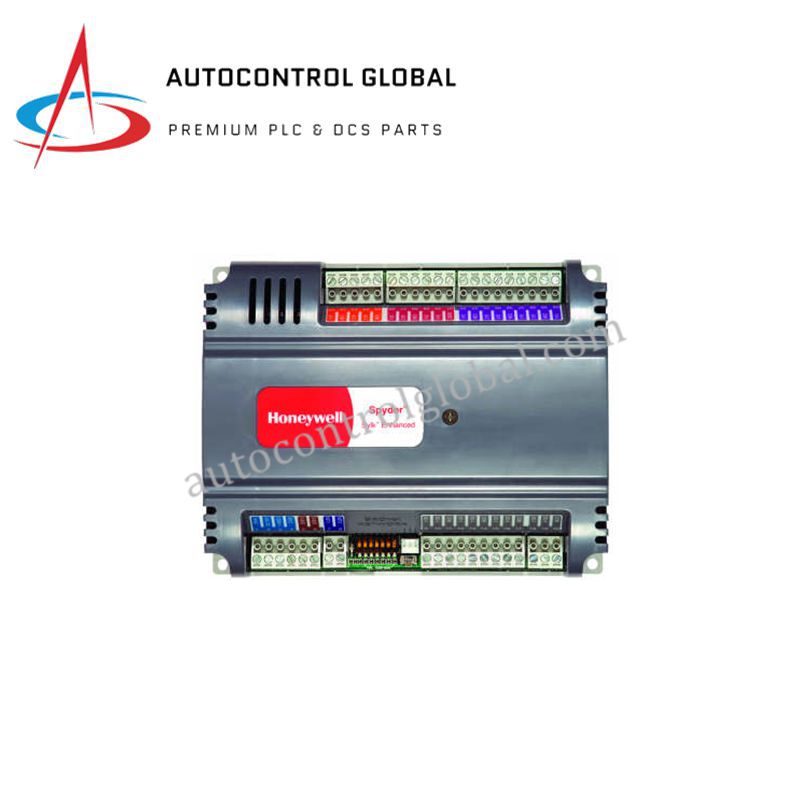

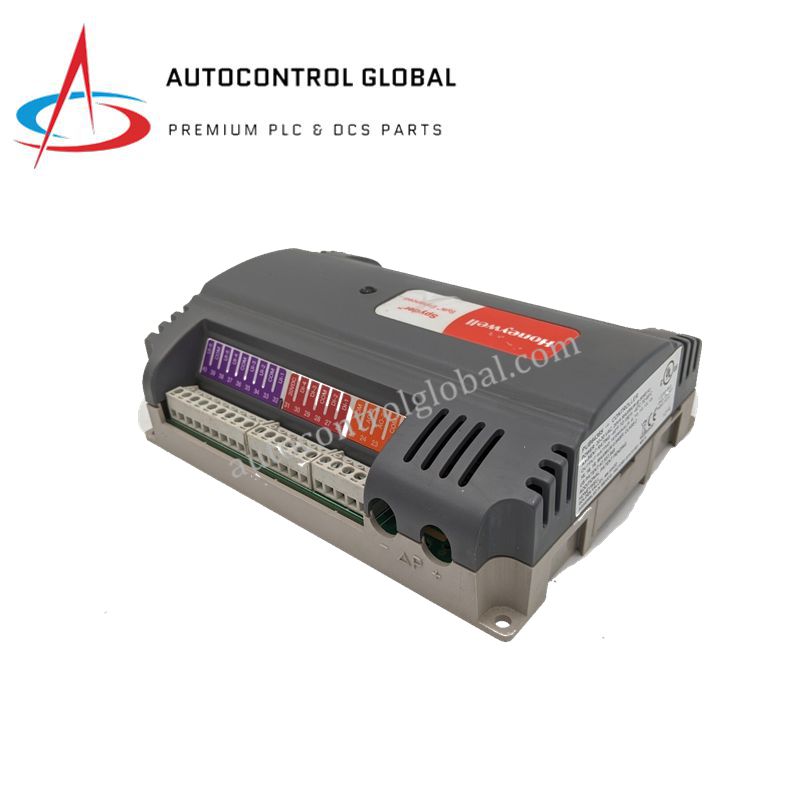

PUB6438SR | Honeywell Spyder BACnet Controller
Manufacturer: Honeywell
-
Part Number: PUB6438SR
Condition：New with Original Package
Product Type: Spyder BACnet Controller
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Honeywell PUB6438SR is a high-performance Spyder BACnet Programmable Controller designed for precise HVAC control in commercial buildings. It supports unitary and VAV applications, offering six universal inputs, two digital inputs, three analog outputs, and eight digital outputs. The integrated actuator provides 35 in-lb torque and 90° rotation for damper control. This controller enables seamless BACnet MS/TP communication, streamlines installation, and reduces wiring complexity.Technical Specifications
| Specification | Details |
|---|---|
| Model Number | PUB6438SR |
| Type | Spyder BACnet Programmable VAV Controller with Integrated Actuator |
| Communication | BACnet MS/TP over EIA-485, 9.6–115.2 kbps |
| Inputs | 6 Universal Inputs (analog/digital), 2 Digital Inputs (binary) |
| Outputs | 3 Analog Outputs (0–10 VDC or 0–20 mA), 8 Digital Triac Outputs |
| Integrated Actuator | Torque: 35 in-lb (4 Nm), Rotation: 90°, Position feedback included |
| Power Requirements | 24 VAC ±15%, 50/60 Hz, up to 15 VA |
| Sensor Power Output | 20 VDC ±10%, max 75 mA |
| Operating Temperature | −40°C to +70°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Mounting Options | Direct mount on VAV box or DIN rail |
| Certifications | UL Listed, CE marked, RoHS compliant |
| Weight | 1070 g |
FAQ
Q1: Is the PUB6438SR original Honeywell equipment?
A1: Yes, it is fully original Honeywell, supplied in new condition with full warranty.
Q2: What HVAC systems can it control?
A2: The PUB6438SR supports unitary and Variable Air Volume (VAV) systems.
Q3: Does it include an actuator?
A3: Yes, the integrated actuator provides 35 in-lb torque and 90° rotation for damper control.
Q4: How is it powered?
A4: The controller requires 24 VAC ±15%, 50/60 Hz, consuming up to 15 VA.
Q5: How soon can the PUB6438SR ship?
A5: Orders typically ship within 3–10 working days depending on size and logistics.
